Автомобильный Универсальный двойной раздвижной Железный механизм электрический привод дверного

Описание и отзывы

Характеристики

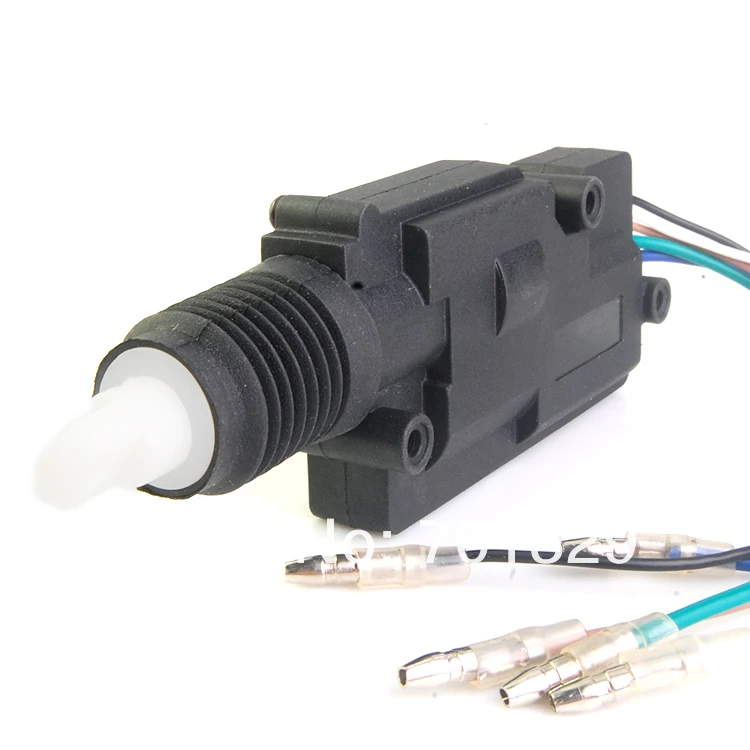

Car universal double sliding pull iron gear electric door lock actuator

Item Number	Remote central lock actuator Photo	Specifiction
CF301-2		Voltage:12V; Actuating force:4KGS; Endurance(up&down):≥80000times; Stroke:16-18MM; No-load&load current:1.5A±5%&3A±10%;  Temperature:-30°C-+60°C; Wiring:30% copper wire in 15pin×0.14sq.cm; The cover mateials(Actuator & Mainunit):ABS
CF301-5



1. Plastic wheel Wheels
2. Double Silding Pull
3. Chinese Technology For Motor(3.5-4kgs)



High quality car door lock actuator

1. Plastic wheel Wheels

2. Double Silding Pull, Working Cycle (22MM)

3. Japanese Technology For Motor(5.5kgs )





Packing:

Plastic bag	size	quantity	weight (kgs)
color box		1pcs	0.17kgs
carton	50*31*21.5cm	100pcs	17kgs
20GP container	28CBM=840cartons	84000pcs	14280kgs

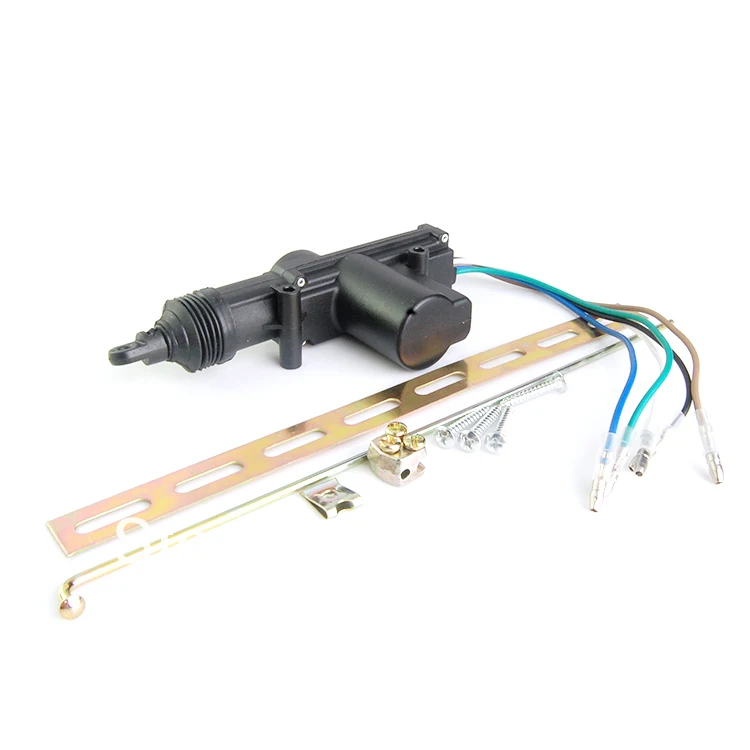

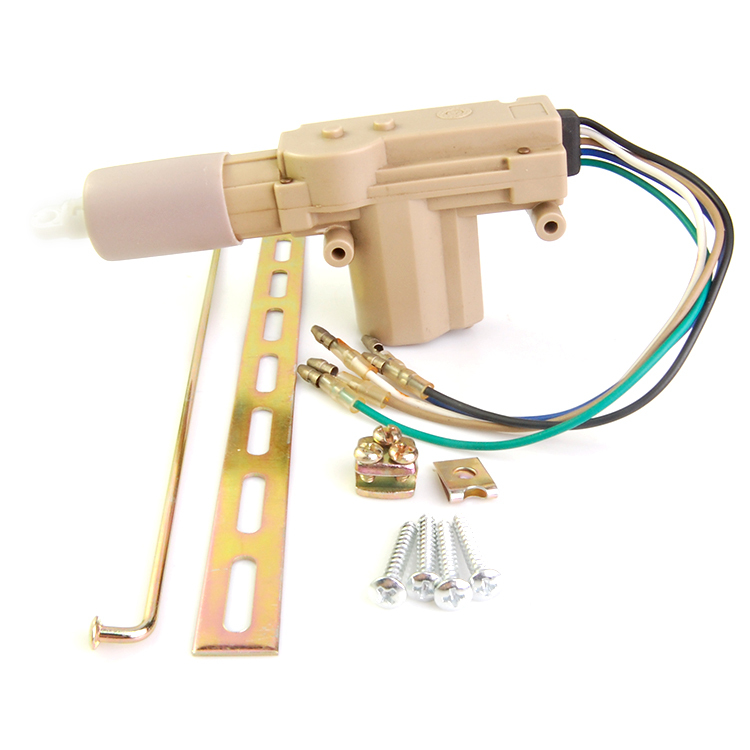

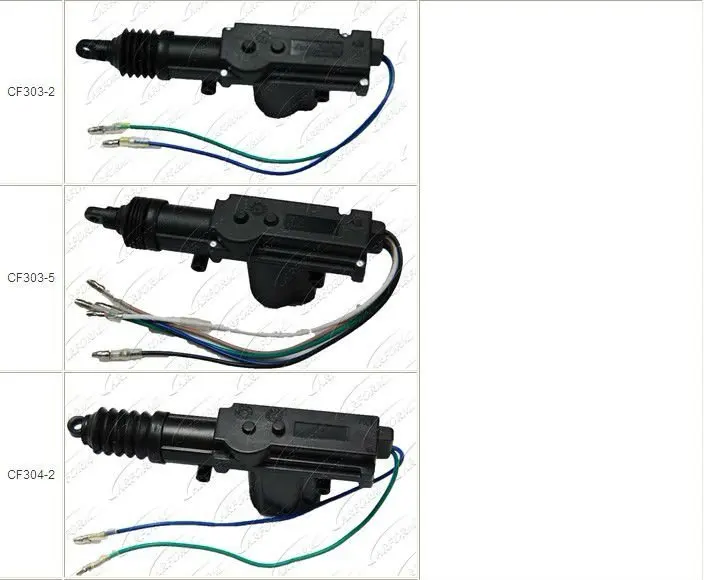

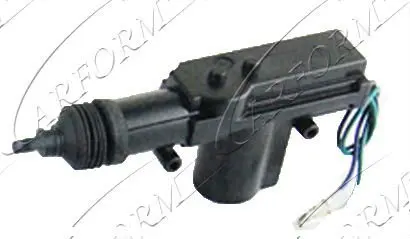

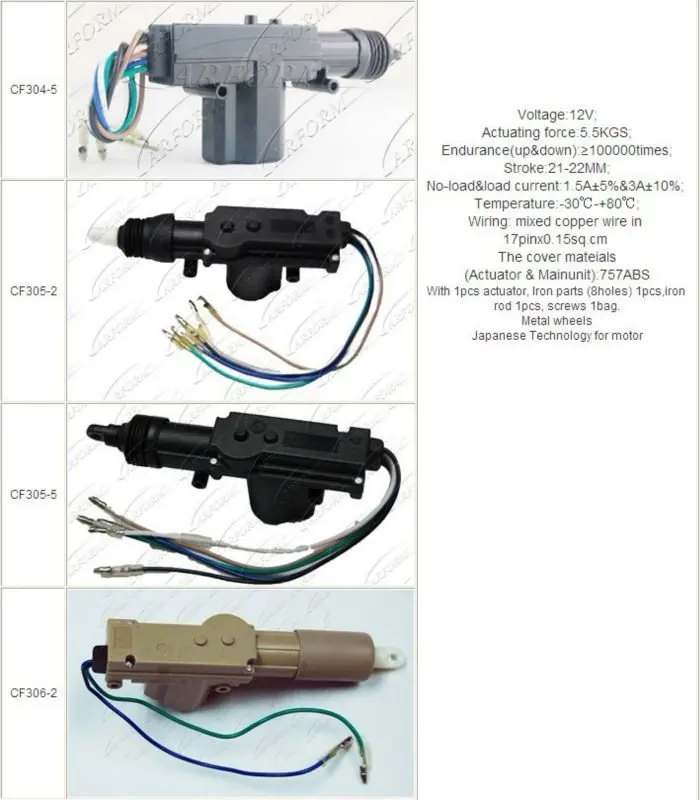

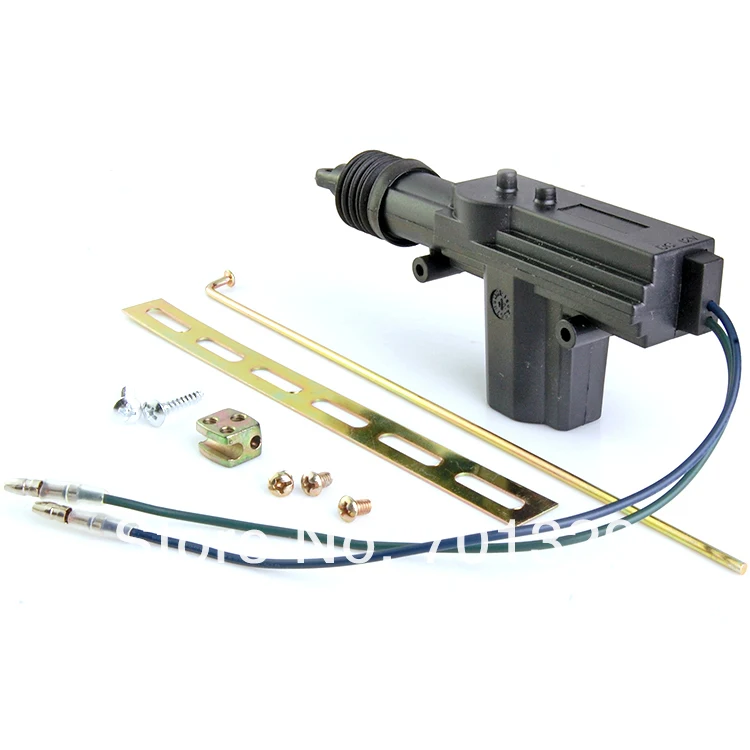

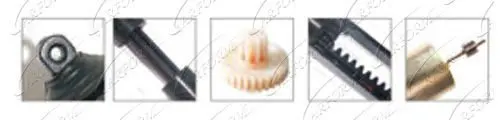

 Photos:
