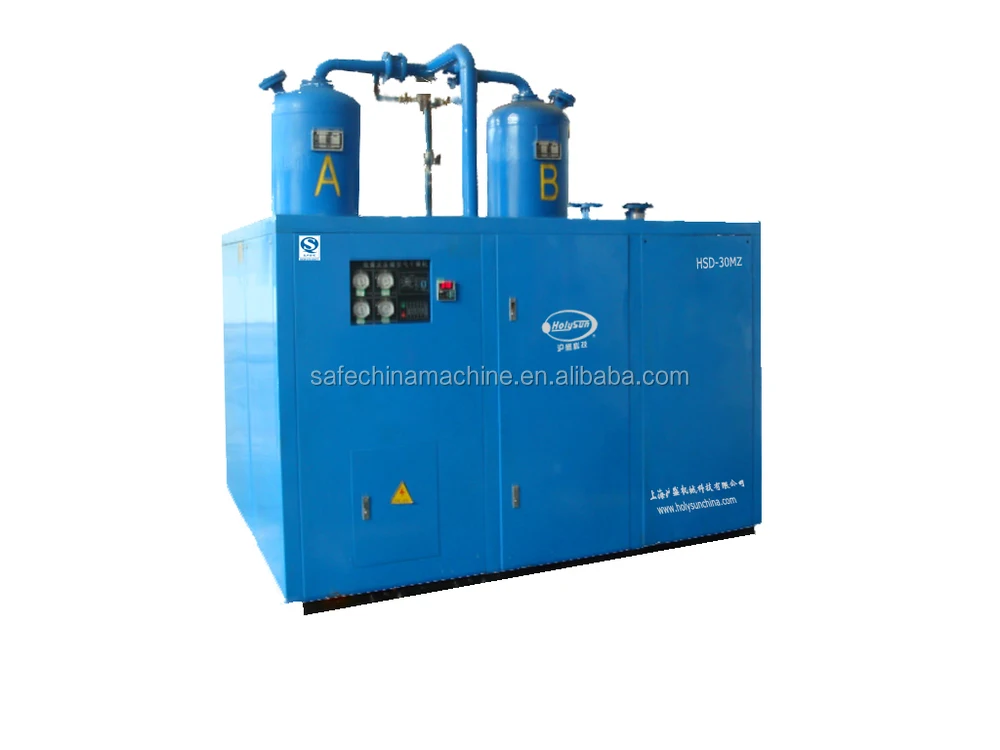

Low Dew Combined Compressed Air Dryer

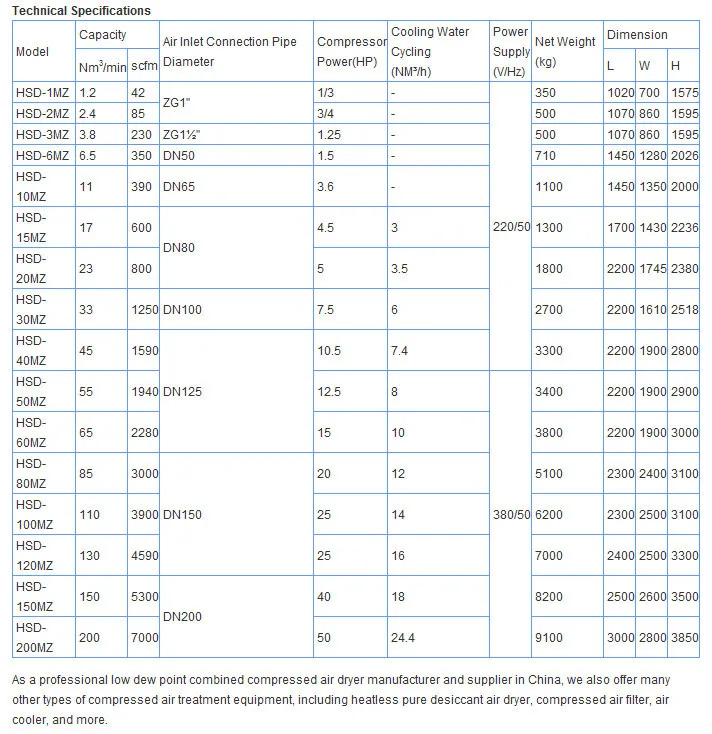

Specifications



Optimal operating point
High quality low dew point
Reduce energy consume
Micro-program controller
ISO9001:2008 & CE

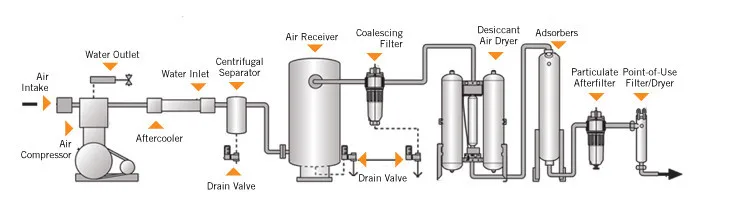

How it works?

First, high-temperature,high-humidity compressed air comes out from compressor make heat exchanging with dried low-temperature compressed air in the heat exchanger, to reduce its temperature,then enters into evaporation,temperature been further reduced,there,a majority of steam condensate to water and be drained.Then the low-humidity compressed air enters into the adsorbing barrel, beening further dried and get more lower dew point finished air.At last low-temperature dried compressed air enters into the heat exchange to cooling high-temperature,high-humidity inlet air,meanwhile get higher temperature itself,preventing the out part of pipeline form dewing, a small part of high temperature air be used for refrigeration,enhance regenerating efficiency and reduce energy consume.

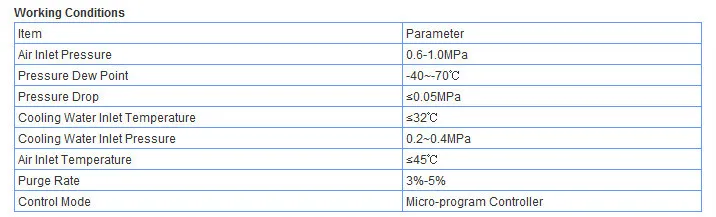

 Work Condition and Technical Data:

 Inlet pressure: 0.6~1.0MPa

Designed dew point:-40~-70°C

Pressure drop: ≤0.05MPa

Cooling water temperature: ≤32°C

Cooling water inlet pressure:0.2~0.4MPa

Inlet temperature : ≤45°C

Purge air:≤3%~5%

Control mode: micron-program controller
