Hydraulic jack FPY Series super-thin Jack
function
1.The surface of plunger isfinished with chrome plate to protect the using of longevit of the product.
2.Plunger has the function of retracting automatically.
3.all FCY series cylinders require a solid lifting surface for correct support .
4.using cylinder on the surfaces such as sand ,mud or dirt may result in cylinder damage.
Delivery time and Packing
Packing: with wooden box / plastic box
Delivery time: in 10-20 days after accept payment
Payment: T/T is best ,or paypal
Specification

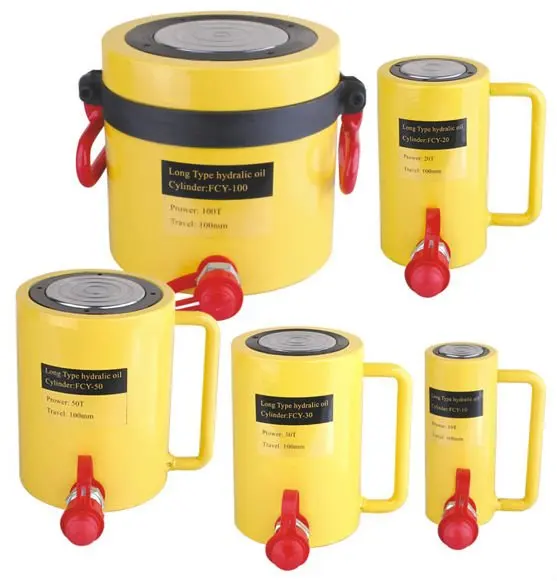

Model | Tonnage | Effective area | Cylinder bore | Cylinder diameter | Weight | Travel | Collapsed height |
FCY-10 | 10T | 15.89 | 45 | 63 | 3.4 | 100 | 155 |
FCY-20 | 20T | 33.16 | 65 | 88 | 6.2 | 100 | 155 |
FCY-30 | 30T | 50.24 | 80 | 108 | 9.6 | 100 | 161 |
FCY-50 | 50T | 78.50 | 100 | 128 | 12.6 | 100 | 161 |
FCY-100 | 100T | 143.06 | 135 | 178 | 26.5 | 100 | 171 |
FCY-200 | 200T | 301.00 | 196 | 247 | 65.0 | 100 | 171 |

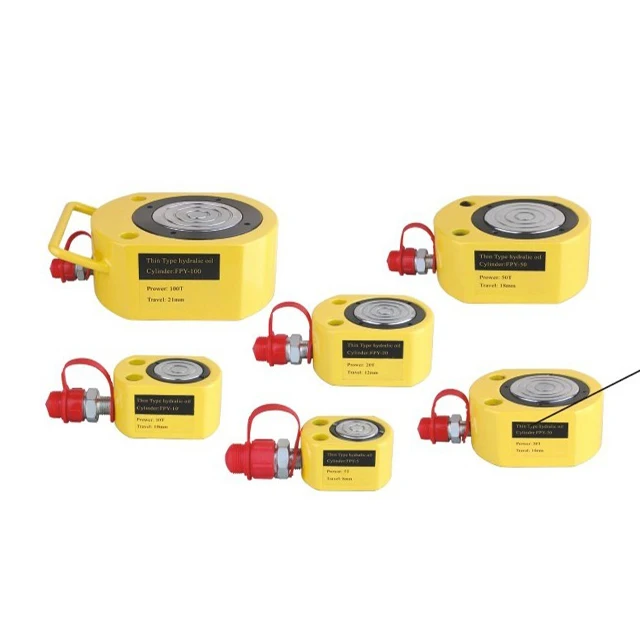

Model | Tonnage | Effective area | Cylinder bore | Cylinder diameter | Weight | Travel | Collapsed height |
FPY-5 | 5T | 9.61 | 35 | 64*48 | 0.7 | 7 | 41 |
FPY-10 | 10T | 15.89 | 45 | 83*62 | 1.6 | 11 | 51 |
FPY-20 | 20T | 33.16 | 65 | 102*80 | 2.75 | 13 | 57 |
FPY-30 | 30T | 50.24 | 80 | 125*105 | 5 | 14 | 63 |
FPY-50 | 50T | 78.50 | 100 | 155*130 | 8.5 | 18 | 72 |
FPY-100 | 100T | 143.06 | 135 | 206*175 | 19.25 | 21 | 88 |
,
