16A 250VAC 1/2HP 3 pin микро переключатель

Описание и отзывы

Характеристики

Characteristics & Using:

Adopt thermosetting plastic or thermoplastic;

Small contact gap, snap action, high sensitivity and small operating travel;

Variety of levers;

 Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.

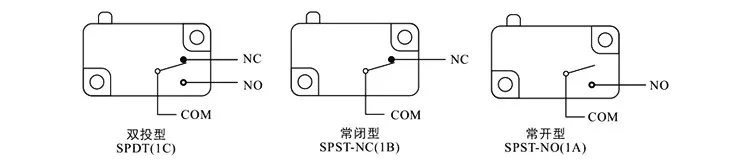

Contact Forms:

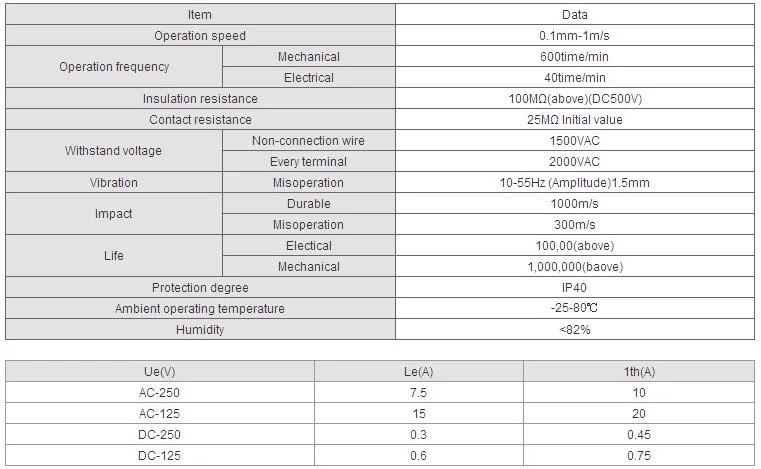

Technical Specification:

Mounting Hole Dimensions & Structure:

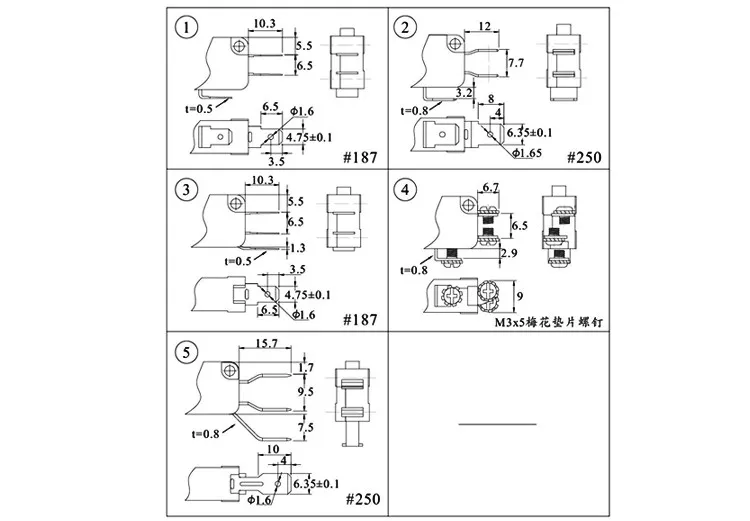

Terminal Forms:

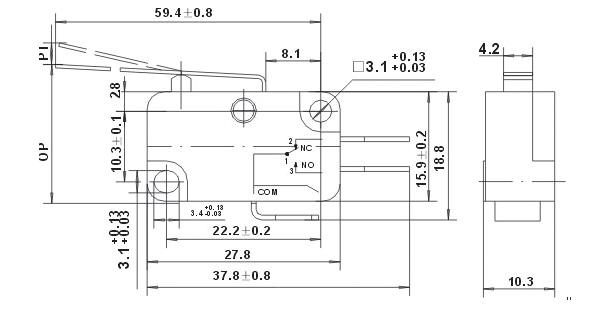

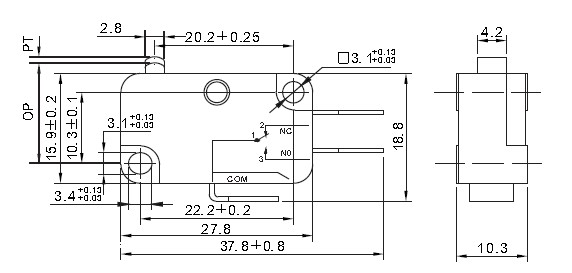

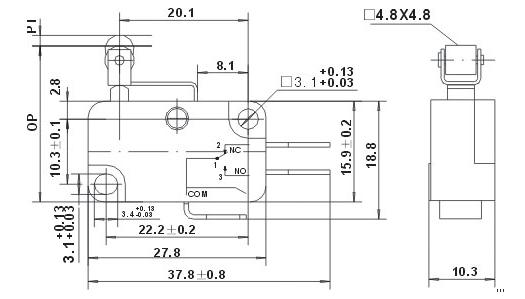

Product Photo & Dimension Drawings:

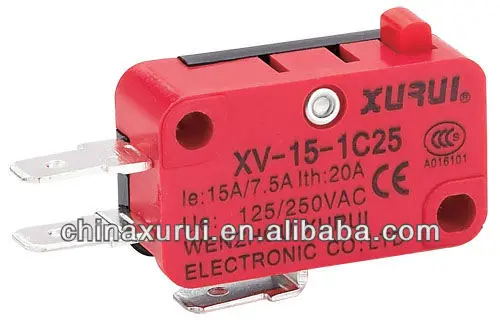

Pin plunger Model:XV-15-1C25





OF MAX	200g (1.96N)
RF MIN	50g (0.49N)
PT MAX	1.2MM
OT MIN	0.6MM
MD MAX	0.3MM
OP	14.7±0.5mm

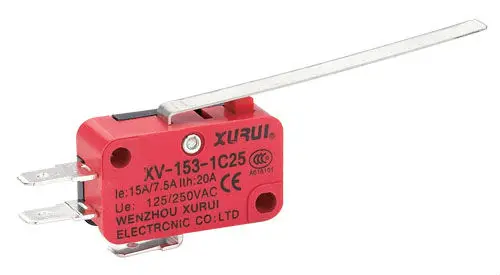

Long Straight lever Model:XV-153-1C25









OF MAX	70g (0.69N)
RF MIN	6g (0.06N)
PT MAX	6.0MM
OT MIN	2.6MM
MD MAX	2.0MM
OP	15.2±2.6mm

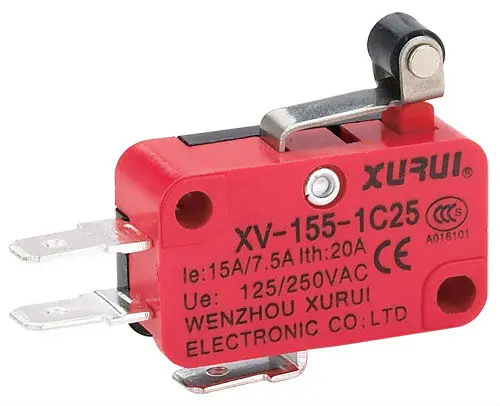

Roller Lever model:XV-155-1C25









OF MAX	200g (1.96N)
RF MIN	50g (0.49N)
PT MAX	1.2MM
OT MIN	0.8MM
MD MAX	0.5MM
OP	20.5±0.6mm

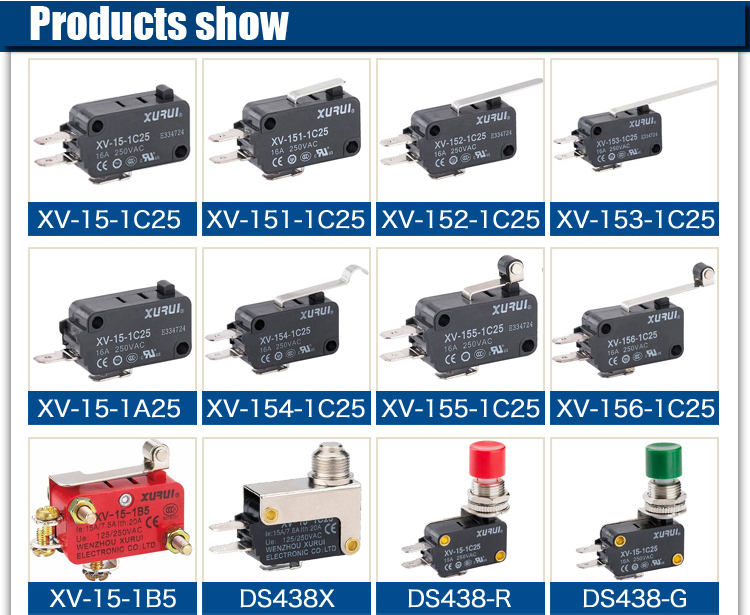

You may interest our other micro switch models:
