Мини-модель с металлическим фрезерным станком ЧПУ высокой


Поделиться:

Цена:7 600,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Mini model with high configuration metal cnc router



Product Description







       850812507_370

Features:

1.whole cast steel machine body,Servo motor,powerfully milling,1/100mm precision.

metal mould cnc engraving machine

2.Pause, adjust speed and cutting depth anytime during cutting, also can preview the tool path. Convenient for engraving different materials, applicable to different industries.

metal mould cnc engraving machine

3.NC studio system have break point memory mode and special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation.

metal mould cnc engraving machine

4.Has the continue engraving function of break point and break.

metal mould cnc engraving machine

5.Has the function of zero return and correct automatically.

metal mould cnc engraving machine

6. Well-compatibility: compatible software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.etc

metal mould cnc engraving machine

7.Heavy loading, non-deformation, adopting imported double-nut screw to ensure the engraving speed.    metal mould cnc engraving machine

8.Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.

metal mould cnc engraving machine

9.Adopt high-speed water-cooling variable frequency motor, big torque, strong cutting, high-frequency, long-life, can be a long time continuous workings.

Configuration









































































































ModelSW-3030SW-4040SW-6060
X,Y Working area300×300mm     400*400mm600*600mm
Z Working area230mm230mm230mm
Feeding Height230mm230mm230mm
Table Size600×600mm700*700mm900*800mm
Lathe StructureCast IronCast IronCast Iron
Working Accuracy0.01mm0.01mm0.01mm
Repositioning Accuracy0.005mm0.005mm0.005mm
Spindle Power2.2KW2.2KW2.2KW
Spindle Rotating Speed0-24000rpm/min0-24000rpm/min0-40000rpm/min
Control SystemNC STUDIO       NC STUDIO       NC STUDIO
Drive SystemServo  of JapanServo  of JapanServo   of Japan
Resolution0.003mm0.003mm0.003mm
Max. Travelling Speed11m/min11m/min12m/min
Max. Working Speed7m/min7m/min8m/min
Working VoltageAC220VAC220VAC220V
Applicational MaterialPlexiglass, Aluminium-plastic composite panel, Aluminium,Copper, Steel, Iron, Plastic, Marble, Wood ,
PVC, Acrylic, ABS board, KT plate and so on






In order to choose the most suitable machine for you, befor you buy we have to know these information:


1.what material you want to carving or cutting?


2.The Max.size about your material.(width*length*thickness)


3.Your requirement about the machine.


4.We can design the machine as customer required.





Thanks for your corporation!

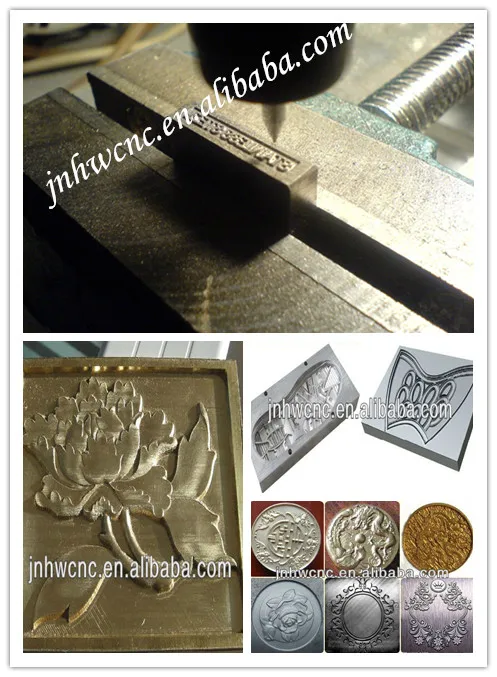

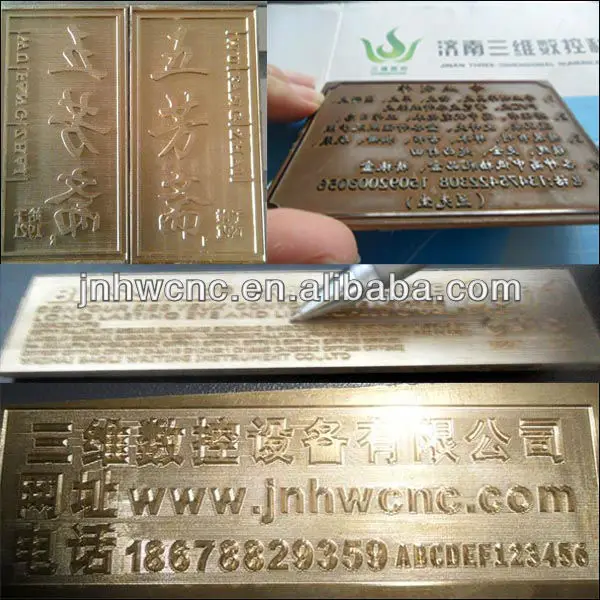

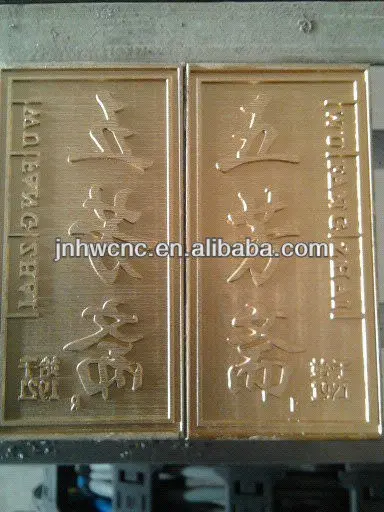

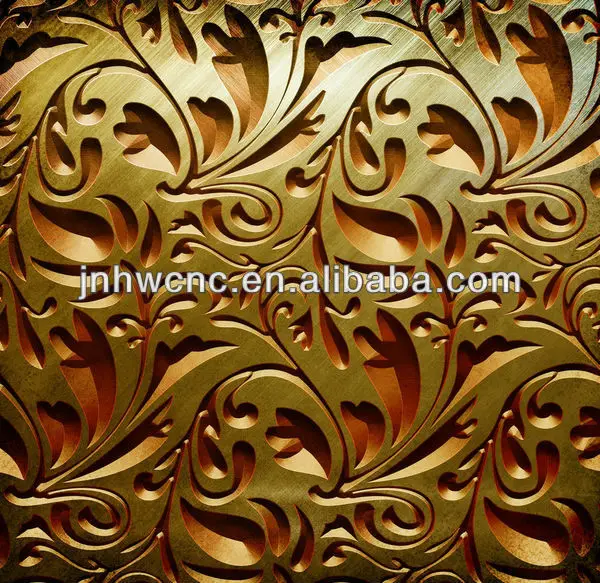

 Sample





    psb







hdy mini cnc router


56c cnc router





Machine Parts

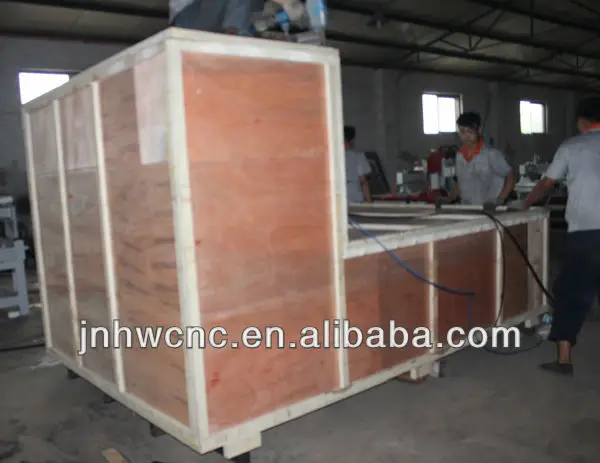

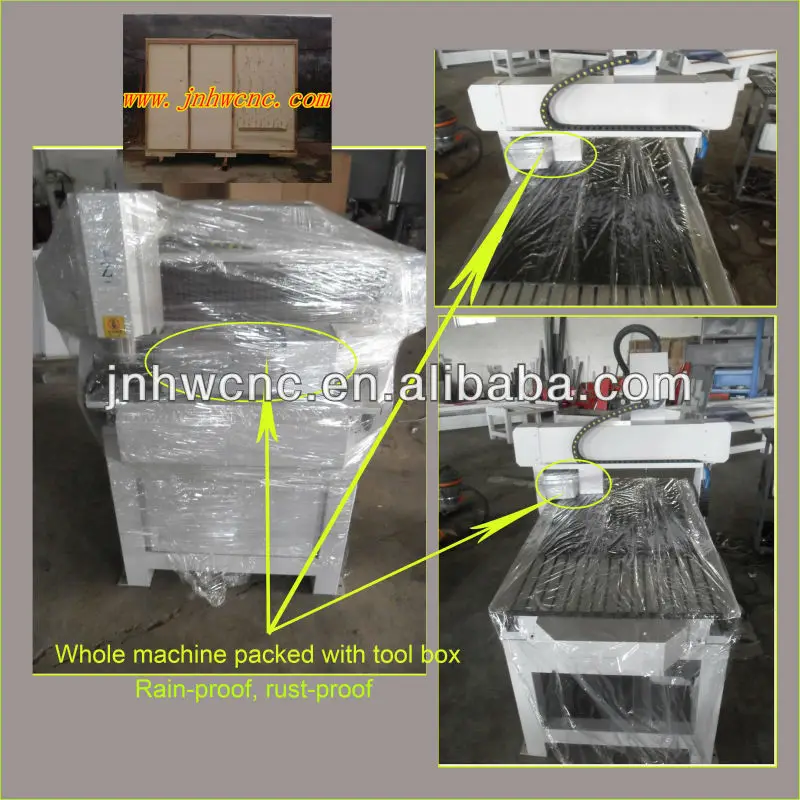

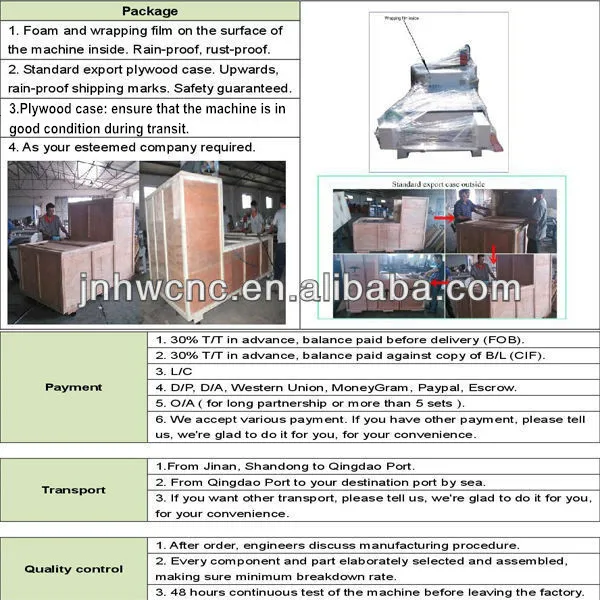

Packaging & Shipping


  packing_.jpg-001





Our Services





























After sales service



1.24 hour technical support by email and calling.
   Service tel: 86-15269187223



2. English manual and CD vedio for machine using and maintaining.



3.Whole machine Warranty 1 Year. Laser tube and lens for six months.



Quality Control



1.Strect control machine assembly each link,ensure the machine clean and beautiful.



2.48 hours continuous work before the machine leave the factory, ensure high









Company Information


H__0628_07


                     Brief introduction about Jinan Huawei CNC Machienry CO.,Ltd





We’re a cnc router manufacturer and trading company in Jinan ( the main cnc router manufacture city in China ) for 11 years. We combine R&D, sale and after-sale service as a whole. We’re devoted to manufacturing cnc routers especially wood cnc routers and stone cnc routers.


We have a huge domestic market as well as hot sale in EU, Egypt, Africa, Belgium, Southeast Asia etc with CE certification. What we’re pursuing as following:


1.Quality is life.


2.Continuous Innovation


3.Long term partnership, close ties with customers to insure we understand their needs, and interpret it into actions of satisfactions, and both get positive ROI.










Contact me


 If you choose us, we can do that:


1. High quality of every machine parts. warranty one year. Our machine has the ability of  24 hours of continuous work.


2. Good service. If you have any questions, you can contact me at any time. we are on service for 24 hours.


3.Competitive price for distributor. we are the manufacturer so our price is most competitive in the market.


4.Timely delivery. If our clients are badly in need of the machine, we can overtime work.





Any questions,please feel free to contact me !
