Sincola brand rendering equipment plan de machine pour enduit rendering

1. Automatic Rendering Machine  can reach the very top of the roof.
2.New Alluminium Alloy main unit and stainless steel material .
3.Original gear rack driving system enable output of main power is more peaceful and stable.
4.Remote Controlkeep working in safety.
5.Three mini vibrators on the Machine can avoid hollowness of walls, ensured rendering quality and fully adhesive.
6. Intelligent Wall Plastering Machinecan make the wall smooth one time within 1min.
7. Machine equipped with omni-directional wheels. You can move it anywhere easily.
8.adopt good quality Panasonic PLC ,it can judge the operation mode of different condition
9.Sincola used it special Power head which is researched and developed by itself to drill the accessories .highly increase the manufacturing precision and decrease working error or tolerance of auto rendering machine.
10.all Sincola machine’s Gas Spring are installed with special protecting device. highly increase the life span of the machine.



Parameter of plan de machine pour enduit rendering

AUTOMATIC RENDERING MACHINE
Model	SRM2	SRM4	SRM5-1		SRM5-1.2			SRM6
Rendering  Height(m)	5	4.2	3.8		3.8			3.5
Rendering  Width(mm)	800	800	1000		1200			1000
Rendering Speed(m²/h)	60-70	60-70	70-80		80-100			70-80
Rendering  Thickness(mm)	5-30
Power	2.2KW/380V-50HZ/60HZ	0.75KW/380V/220V-50HZ/60HZ	1.5KW/380V/ 220V-50HZ/60HZ		1.5KW/380V/ 220V-50HZ/60HZ			0.75KW/380V/220V-50HZ/60HZ
Electricity Phase	Three	Single/Three	Single/Three		Single/Three			Single/Three
Dimension(mm)	1350×800×500	800×650×550	1000×650×550		1200×650×550			1000×650×550
Weight(Kg)	180	110	100		110			140
Usage	Brick Wall,Block Wall,  Indoor
Suitable Materials	1.Cement Mortar ,2.Ready Mix Mortar,3.Gypsum Mortar ,4.Lime Mortar
Feature	Feeding  mortar by  manual  control	Shift machine  conveniently when  pass door or concrete beams of ceiling no need to  disassemble  directional pipes.		New alluminium  alloy main  unit and stainless steel  directional pipes.  Original gear rack  driving system  enable output  of main power  is more peaceful  and stable Less failure rate.		Higher productivity, bigger working area. new alluminium alloy  main unit and stainless  steel directional pipes.  Original gear rack  driving system  enable output  of main power is  more peaceful  and stable less  failure rate.	No Need to Mark the  Reference Point.  One Man’s Operation.  Higher Quality  of Flatness.  Limit Lever.  Increase 30%  the Volume  of the Mortar Tank.  Stretched Plate of the  Overhead Beam

What is plan de machine pour enduit rendering used for?
ering Rendering Machine  is also called rendering machine. It specializes in rendering cement mortar or gypsum mortar on the walls automatically instead of manual working for saving time and up to 70% of labor cost. It also save money and performance well comparing to labor work.

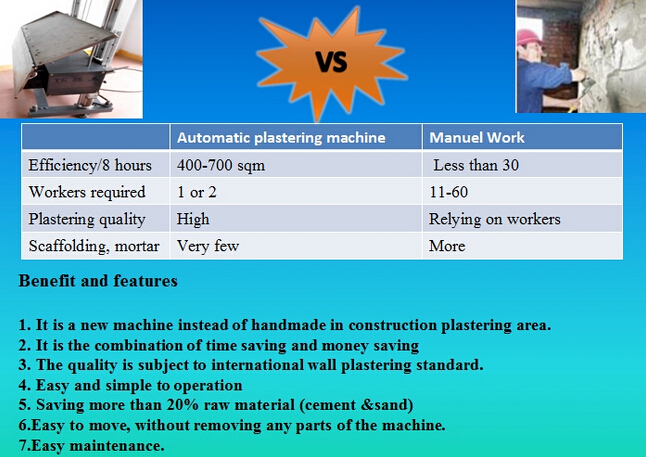

What is plan de machine pour enduit rendering TO labor work?

Picture 1 of plan de machine pour enduit rendering

Picture 2 of plan de machine pour enduit rendering

Picture 3 of plan de machine pour enduit rendering

Picture 4 of plan de machine pour enduit rendering

Picture 5 of plan de machine pour enduit rendering

Picture 6 of plan de machine pour enduit rendering

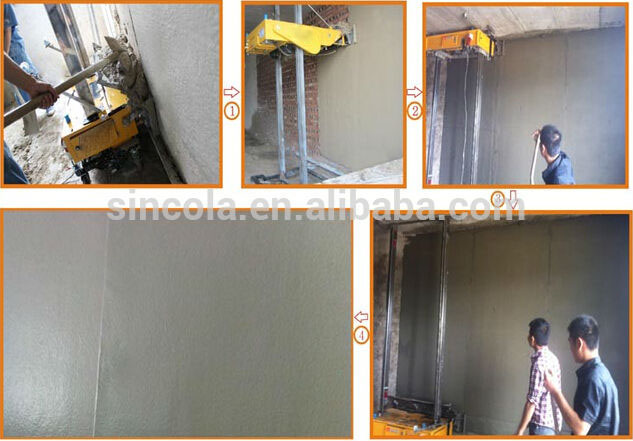

Application of plan de machine pour enduit rendering

Brick Wall And Block Wall of the  Automatic Rendering Machine

1.Cement Mortar
2.Ready Mix Mortar
3.Gypsum Mortar
4.Lime Mortar



Generalspeaking, every room has a wall lintel, When the machine work under the beam, we must find a way to let the machine stop and then fall over the beam position, counterfeit products are generally use chains or clamps way, this is the technology that we broke out of before, when use the chains, the wall below height must be measured out,then measure the length of the chains, and then hanging chains in the chassis and host stick pole. In the first two panels wipe process , Sincola adopt the Telescopic rod device under the lintel you just need simply put the lever on the floor, adjust the length of lintel and locked,so they exactly stop after few seconds shaking then it begin the fall, The disassemble process just need 1-2 seconds.

Parts of plan de machine pour enduit rendering

Shipping: 7 days after received the advanced payment

Packing: The international packing standard of wooden case packing.

Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are the one of the big manufacturer and supplierin China .

Our products are Shotcrete machinery  and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.

Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.

Our products are well known to international market such as Russia, UzbekistanRussia,Uzbekistan,Cyprus,Algeria,Cameroon,Macedonia,Malaysia,Austrialia,Yemen,Oman etc.

Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.

We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business...
