          Corn threshing and shelling machine

It is used for threshing corn, also keep corncobs unbroken. When work, by high-speed rotation

and hit, corn cob discharged from sieve, and corn silk, leather from the discharge outlet.

      Raw materails                      after threshing                                after shelling

1.flexible transportation among working places,

2.high efficiency, high threshing performance,

3.low breakage rate,easy to operate.

4.drived  by diesel engine or motor.

5.capcity:1-3t/h

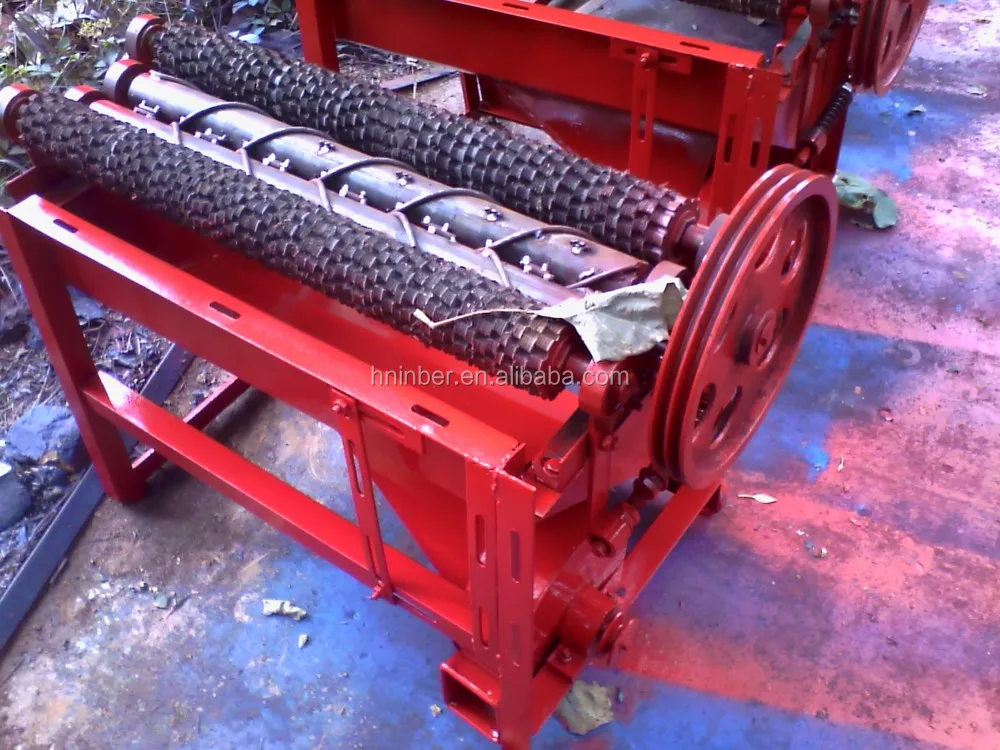

For threshing(removing corn skin),there are four rollers to work on the corn, two outer rollers rotate corns to the center of the rollers, inner two alloy rollers clamp corn skin and remove it from the corn cobe.

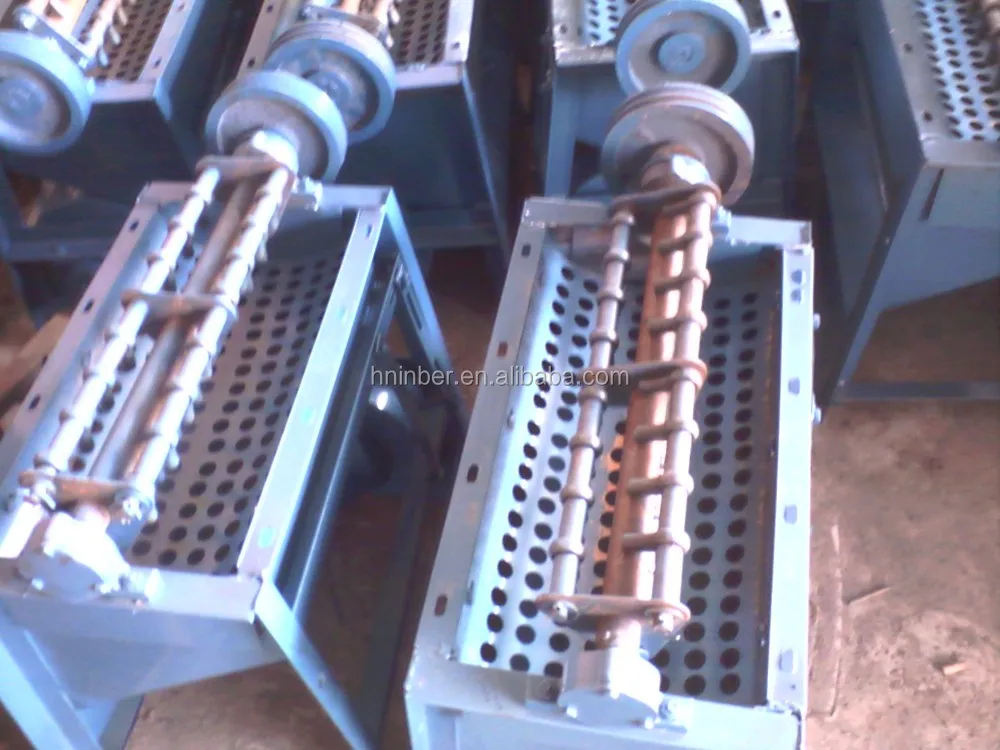

For shelling part, there is a shaft with many small hammers to remove corn niblet from the cobe.

Also there is a screen before the dishcarging port, maybe some parts of the cobe will be broken by small hammers, the screen could separate corn niblet from the broken cobs.

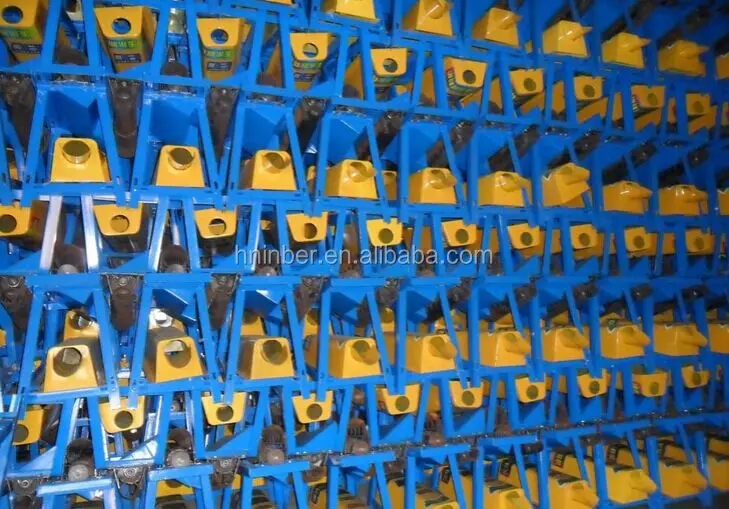

First two models is for corn shelling only.

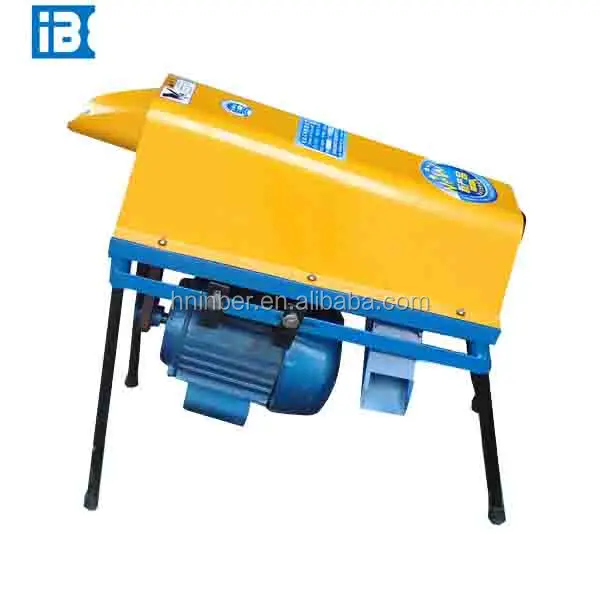

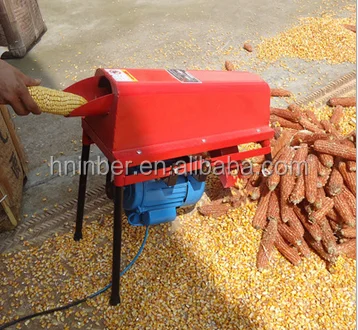

Type 1)could only process one corn each time.

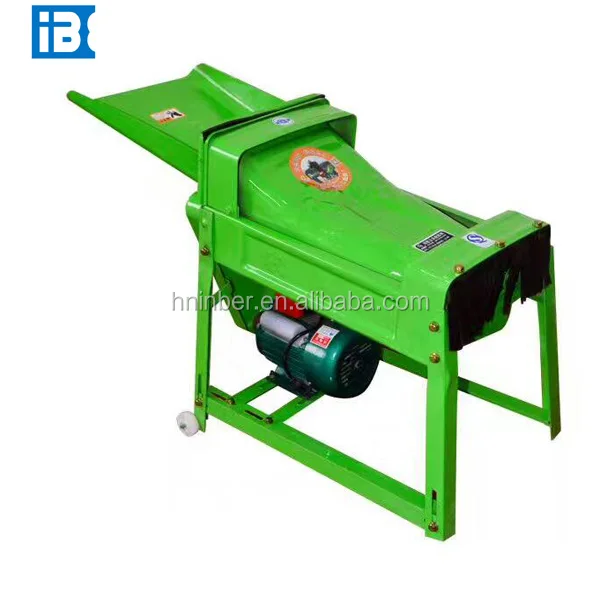

Type 2)Biger model for corn shelling

Capacity:1.5-3t/h
power:motor or petrol engine
machine size:60*40*70cm
machine weight:50kg

Last three models for both corn threshing and shelling

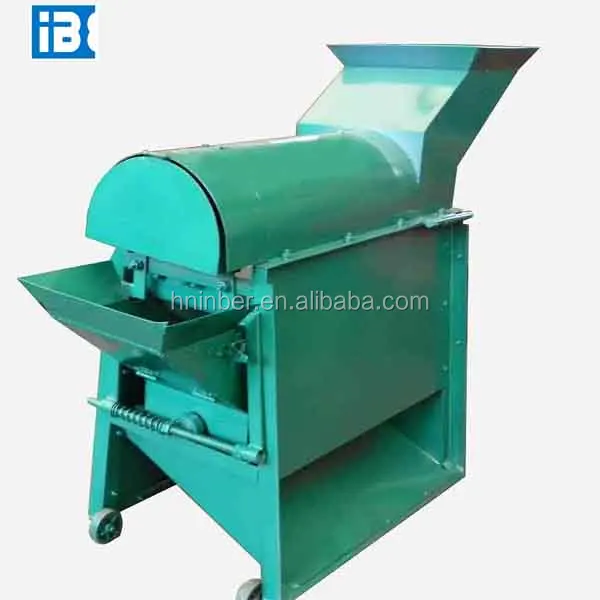

Type 1)First remove corn skin(threshing),then change inside machine mold and increase one screen, to realize corn shelling.



Item	Unit	INTS-0.5	INTS-4.5
Overall  dimension	mm	1200*880*900	1500*880*900
Weight	kg	230	400
Spindle speed	r/min	1300-1400	1000
Winnower power	r/min	2450	2450
Dia of roller	mm	200	200
Dia of threshing roller	mm	300	300
Productivity	kg/h	1000-2000	2000-3000
Broken ratio	%	≤2	≤2
MOQ	set	1	1

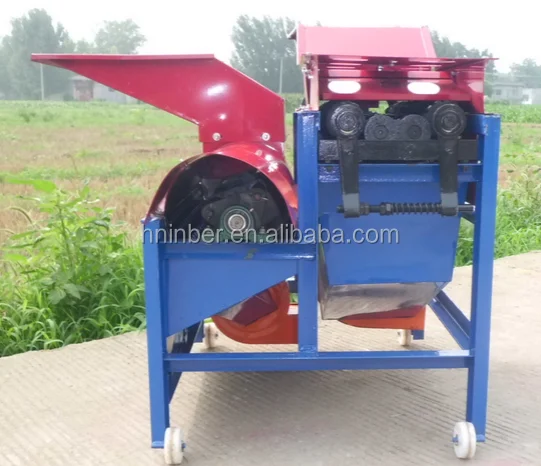

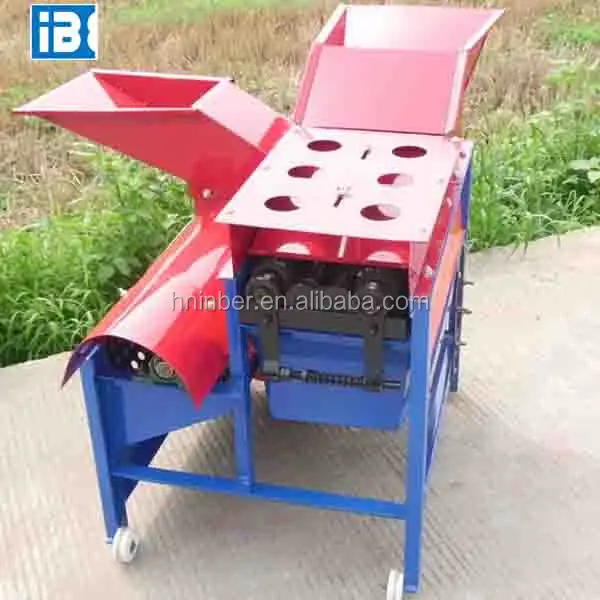

Type 2) Uper part is for corn threshing, lower part is for corn shelling.

Motor:2.2-3kw

capacity:1000-2000kg/h

machine size:1050*600*900mm

machine weight:120kg

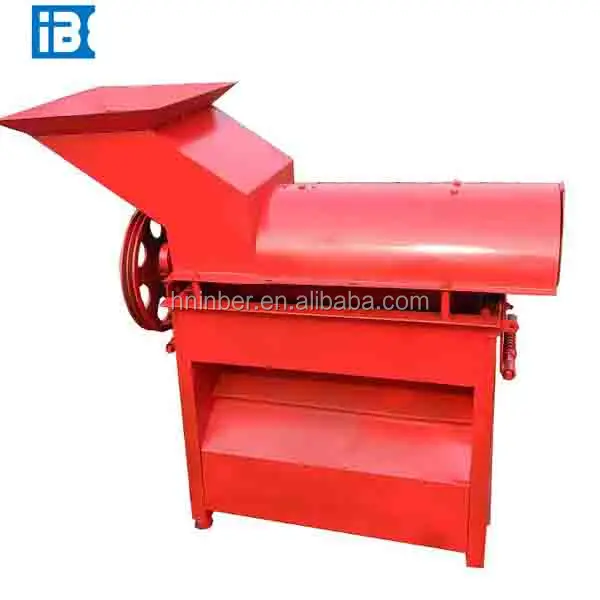

Type 3)Right part  is for corn threshing, left part is for corn shelling.

Motor:2.2-3kw

capacity:1000-2000kg/h

machine size:12000*800*960mm

machine weight:140kg

If you have any interest,pls contact with me freely.
