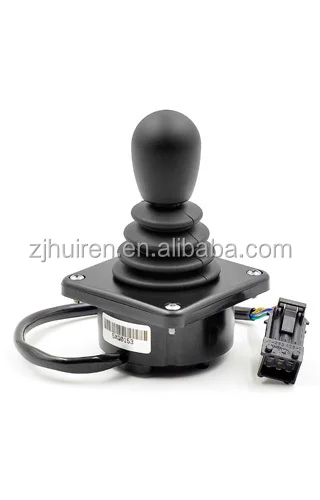

Промышленный вращающийся джойстик SJ500 для вилочного
- Категории: Joystick & Game Controller >>>
- Поставщик: Zhejiang,Huiren,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product features
| 1. Building block design |
| 2. Spring automatic reset |
| 3. Fully sealed design |
| 4. Can adapt to the complex environment |
Potentiometer specifications
Environment Specifications | ||
Storage temperature | normal temperature | |
Operating temperature | —25℃~+80℃ | |
Installation of flange protection grade | IP56 | |
Vibration | amplitude of vibration ±3g, frequency 10HZ-200HZ | |
Shock | 20g, 6ms, half sine type | |
EMC anti-interference grade | 100V/m, 30MHZ-1GHZ, 80%Sine-wave modulation, satisfy EN 50082-2 (1995) standards | |
Transmit grade | 150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards | |
ESD anti-interference grade | Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards | |
Mechanical Specifications | ||
Mechanical rotation | ±32° (potentiometer) ±20° (hall sensor) | |
Operating torque | 7.5N(50Nmax) | |
Mechanical life | 5,000,000 cycle | |
Mechanical tolerance | ±0.5° | |
Electrical Parameters | ||
Hall type | Power supply voltage | 5±0.5VDC |
| The power consumption of current | 6.5 mA/each hall chip |
| Resolution | Infinite |
| Maximum voltage | 15 VDC continuous |
| Reverse polarity maximum voltage | 14.5VDC |
| Load resistance | 5KΩ |
| The median voltage (no-load) | 48~52%Vs |
Potentiometer | Power supply voltage | DC24V |
| Power supply current | <20mA |
| Resolution | Infinite |
| Resistance (10%) | 5KΩ, 10KΩ |
| Electrical rotation | ±32° |
| Output voltage range (Relative voltage) | 0~100%;10~90% |
| Maximum voltage | 48%~52% |
| Potentiometer maximum load of voltage | 32VDC |
| Maximum power consumption (25 ℃) | 0.25W |
| The direction of the switch | Switch position ±3° |
Application
YJ500 industrial joystick, mainly used in forklift truck and other construction machinery hydraulic proportional control and variable frequency motor control.

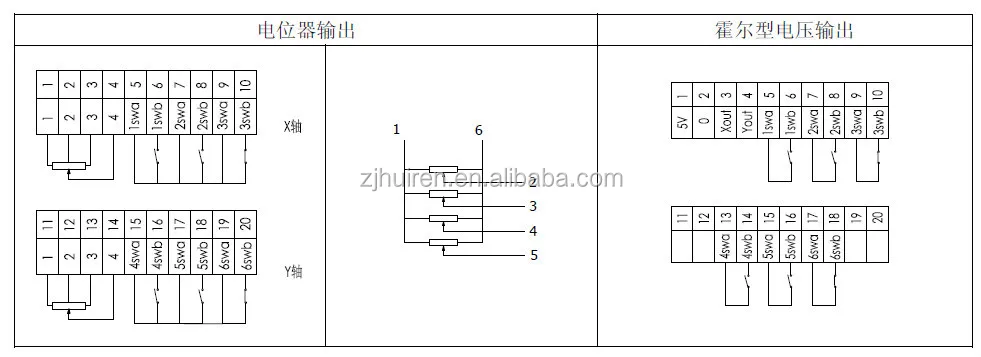

Wiring instruction

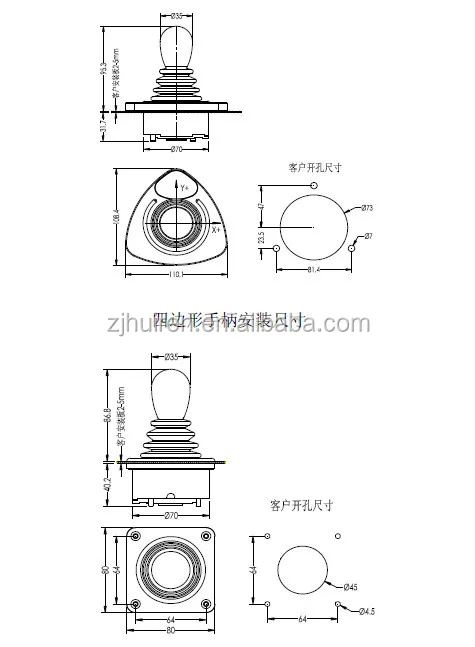

Size
Packaging & Shipping
