Galvanized Steel Profiles For Gypsum, Metal Studs Track
Products Description
Metal Profile
Metal Profile is made of galvanized steel sheet with good rust-proof function.The thickness is strictly according to the international demand.
Main Characteristic
1.Galvanized Zinc coating will protect the channel from being rust;
2.Flexibility of application makes each ceiling tile/plasterboard easily installed anddisconnected;
3.Size adjustability can easier to match your request;
4.High quality leads longer life span & higher strength;
5.Better function of dealing with both high tensile stress and blending stress.
6. Easy and fast for installation,time-saving
Item | Thickness | Height | Width | Length |
Metal Stud (C Stud) | 0.4 / 0.45 / 0.5 / 0.6 mm | 35 mm | 50 mm | 3000 mm |
0.4 / 0.5 / 0.6 mm | 40 mm | 3000 mm | ||
0.5 / 0.6 mm | 50 mm | 3000 mm | ||
0.4 / 0.5 / 0.6 mm | 35 mm | 65 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 35 mm | 70 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 40 mm | 70 mm | 3000 mm | |
0.4 / 0.45 / 0.5 mm | 35 mm | 75 mm | 3000 mm | |
0.45 / 0.5 / 0.6 mm | 45 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 mm | 50 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 / 1.0 mm | 50 mm | 100 mm | 3000 mm | |
0.8 / 1.0 mm | 50 mm | 120 mm | 3000 mm | |
Metal Track (U Track) | 0.4 / 0.5/ 0.6 mm | 30 mm | 50 mm | 3000 mm |
0.4 / 0.45 / 0.5/ 0.6 mm | 40 mm | 3000 mm | ||
0.4 / 0.5 / 0.6 mm | 30 mm | 65 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 30 mm | 70 mm | 3000 mm | |
0.4 / 0.5 / 0.6 mm | 35 mm | 3000 mm | ||
0.4 / 0.45 / 0.5 mm | 25 mm | 75 mm | 3000 mm | |
0.45 / 0.5 / 0.6 mm | 35 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 mm | 40 mm | 75 mm | 3000 mm | |
0.5 / 0.6 / 0.8 / 1.0 mm | 40 mm | 100 mm | 3000 mm | |
0.8 / 1.0 mm | 40 mm | 120 mm | 3000 mm | |
Furring Channel | 0.4 / 0.45 / 0.5 mm | 22 mm | 35 mm | 3000 mm |
Main Channel (Main Runner) | 0.6 / 0.7 / 0.8 / 1.0 / 1.2 mm | 10 mm | 38 mm | 3000 mm |
0.5 / 0.8 / 1.0 / 1.2 mm | 12 mm | 3000 mm | ||
0.6 / 0.7 / 0.8 / 1.0 / 1.2 mm | 14 mm | 50 mm | 3000 mm | |
0.8 / 1.0 / 1.2 mm | 15 mm | 3000 mm | ||
0.8 / 1.0 / 1.2 mm | 27 mm | 60 mm | 3000 mm | |
Cross Channel (Cross Runner) | 0.35 / 0.4 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 mm | 19 mm | 50 mm | 3000 mm |
0.4 / 0.45 / 0.5 / 0.6 mm | 27 mm | 60 mm | 3000 mm | |
Suspended Bar | 0.6 / 0.7 / 0.8 / 1.0 mm | 25 mm | 20 mm | 3000 mm |
0.6 / 0.7 / 0.8 / 1.0 mm | 28 mm | 20 mm | 3000 mm | |
0.6 / 0.7 / 0.8 / 1.0 mm | 32 mm | 20 mm | 3000 mm | |
Wall Angle (L Channel) | 0.4 / 0.45 / 0.5 mm | 25 mm | 25 mm | 3000 mm |
0.6 mm | 30 mm | 30 mm | 3000 mm | |
0.45 / 0.5 mm | 32 mm | 32 mm | 3000 mm | |
Corner Bead (Edge Bead) | 0.4 / 0.45 / 0.5 mm | 25 mm | 25 mm | 3000 mm |
0.45 mm | 30 mm | 30 mm | 3000 mm |
Partition Drywall Series

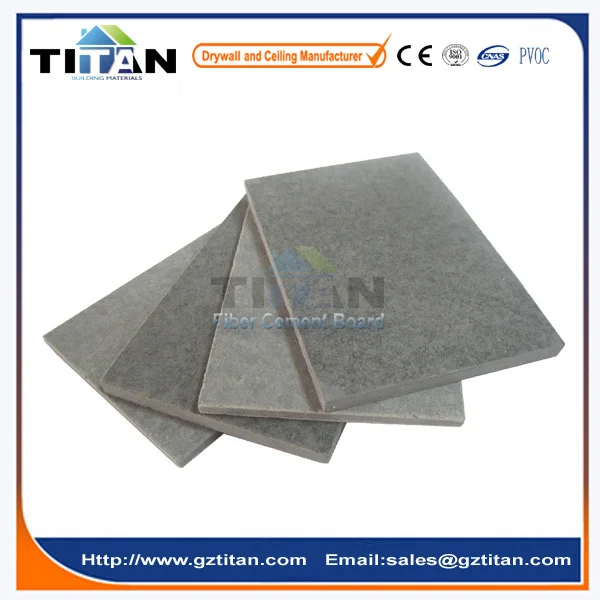

Gypsum Board Magnesium Oxide Board Fiber Cement Board
Suspended Ceiling Series
PVC Gypsum Ceiling Mineral Fiber Ceiling Plastic PVC Panel
Product Installation
Metal Profile
Ceiling System Proportion | |
Gypsum Board 1200×2400×9mm | 1 m2 |
Main Runner | 1 m |
Cross Runner | 3~3.6 m |
Hanger | 2~3 pcs |
Main Runner Connector | 0.5 pcs |
Cross Runner Connector | 1 pcs |
Leveling | 4~6 pcs |
Sleeve Anchor | 1 set |
Cross Screw | 1 set |
Drywall Self Tapping Screw | 25~30 pcs |
Paper Joint Tape / Mesh Joint Tape | 1.5~2 m |
Partition System Proportion | |
Gypsum Board 1200×2400×12mm | 2 m2 |
Metal Stud | 2.2~3.6 m |
Metal Track | 0.7~1.4 m |
Intermediate Channel | 0.8~1.4 m |
Support Card | 4 pcs |
Drywall Self Tapping Screw | 25~30 pcs |
Paper Joint Tape / Mesh Joint Tape | 1.5~2 m |
Packing & Loading
Metal Profile
Product Application
Metal Profile
Shipping & Delivery
Metal Profile
Why choose us
Metal Profile
Send Inquiry
Metal Profile
