Машина для продольной резки аморфной и нанокристаллической ленты Ширина 200

Описание и отзывы

Характеристики

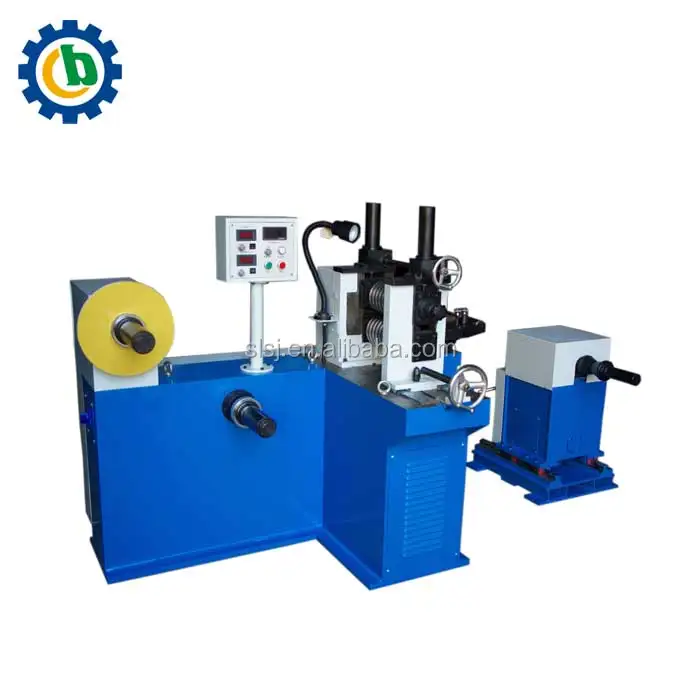

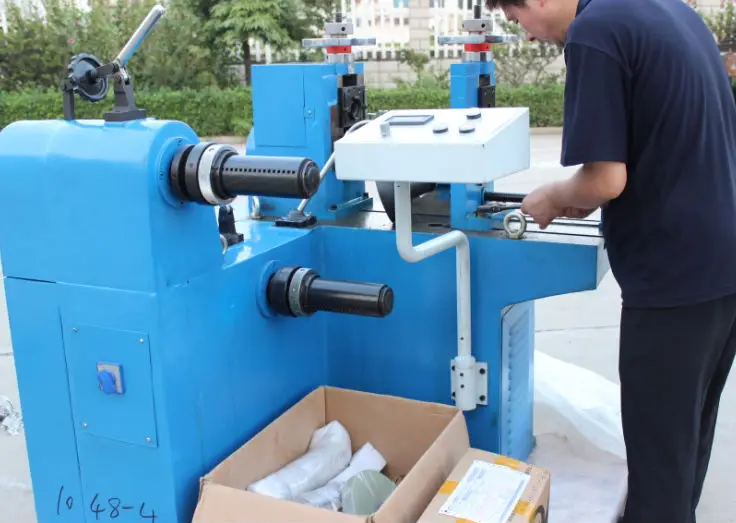

Automatic 200mm Width Amorphous Nanocrystalline Ribbon Shearing Cutting Machine



1. Introductions:



The automatic amorphous ribbon cutting machine is mainly used for automatic cutting and stacking  the amorphous and nanocrystalline ribbon, also can be used for cutting metal coil and aluminum ribbon and the other similar material.



This automatic amorphous ribbon cutting machine is with  high-capacity PLC control, servo actuator system,color touch screen operator interface and high-precision mechanical transmission mechanism,which ensure high automation, high productivity, high reliability of the machine.



2. Technical Specifications



Ribbon thickness: 0.02mm ~ 0.6mm

Maximum ribbon width: 200mm

Minimum width of sheared ribbon: 2mm

Hob diameter: Φ120mm

Cutter shaft diameter: Φ60mm

Shearing speed: 10-60m/min

The shearing number: ≤12

Inner diameter of winding: Φ75mm

Outer diameter of winding: Φ320mm.

Reducer: Cycloid reducer



3.Processing Accuracy





The stacking position error	± 0.5mm
Length cutting precision	± 0.5mm
Cutting width max	250mm
Cutting length	300mm-3000mm
Cutting thickness	15 layers, each layer: 0.023mm
Cutting angle	90 degrees
Cutting angle accuracy	± 0.05 degrees



4. Productivity





Feeding speed	5---80M/min
Cutting rate	0 --- 30 times / min



5.Main configuration of automatic amorhous ribbon cutting machine:



 -- PLC: Bidragon brand, Canada (Touchwin) joint venture in China

 -- Touch screen: Xinjie brand

 -- Inverter: ENC from Japan

 -- Servo system: Xinjie brand

 -- Pneumatic components: Airtec from Taiwan

 -- Linear guide: SBC from Korea and Switzerland

 -- Main electric components: Schneider from joint venture in China

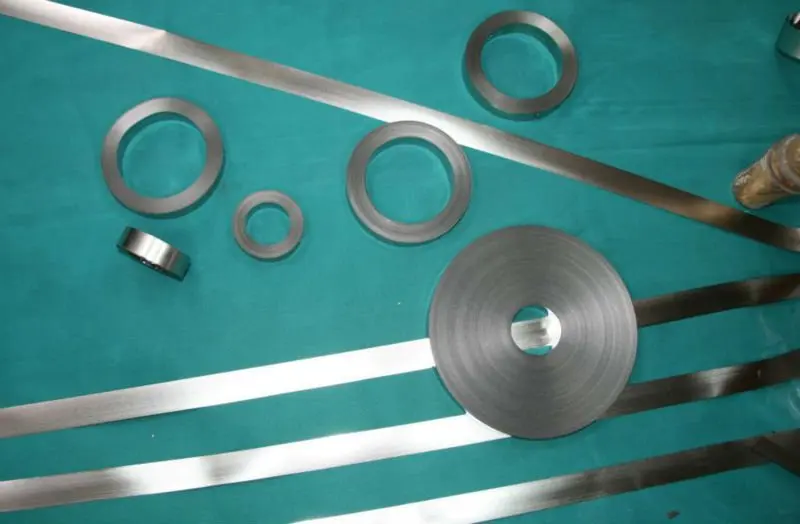

6.Pictures of after cutting effect:
