Разъем евро DIN 41612 96pin 64PIN

Описание и отзывы

Характеристики

Specifications

DIN41612 Eurocard Connector
1 No of contacts: 96pin,64pin,48pin,32pin
2 Pitch:2.54mm
3 Contact plating:Gold flash

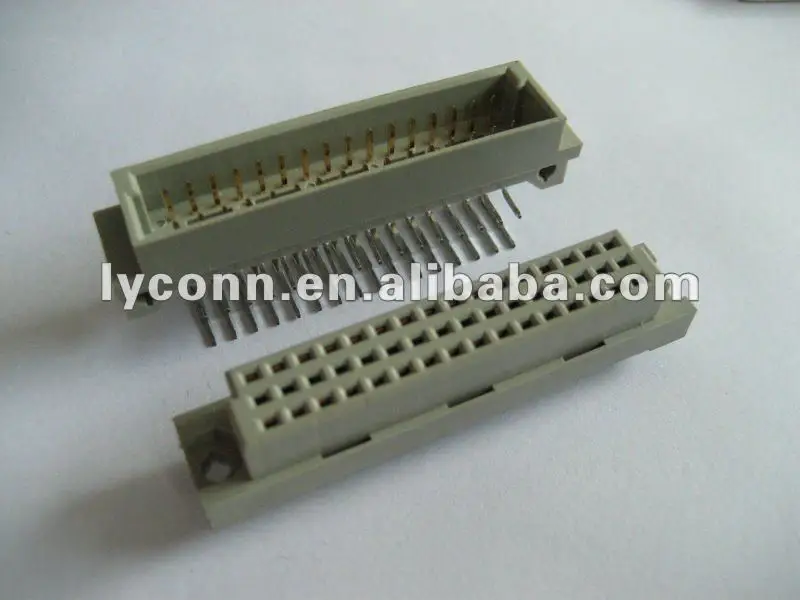

DIN 41612 male / female Connectors



Specifications:

current Rating: 2.0AMP

contact Resistance: 30mΩ Max

Insulation Resistance: 1000mΩ Max at DC 500V

Withstand Voltage: 1000VAC for one minute

OPeration temperature: -40oC to + 105o





Materials:

contact Material: Phosphor bronze

flammalility Rating: UL 94V-0

Insulator Material: 30% Glass Filled PBT

Package: Plastic Tray package



  (1)series No :

       416= DIN 41612

 (2) contact number of row:

      1= a row     2= a + b row       3= a + b + c row      4= a + c row

(3) Number of contacts :

     96 Pin ,    64 Pin ,  48 Pin,   32 pin ,  16 Pin,   08 Pin

(4) contact type:

    M= Male (Plug)

    F = female ( receptacle )

(5 ) Tail style:

    s= strainght DIP type      R= right angle DIP type

(6) Pitch:

       2= 5.08mm     1= 2.54mm

(7) contacts Plating:

    1= gold flash   2= gold 3U"  3= gold 5U"
