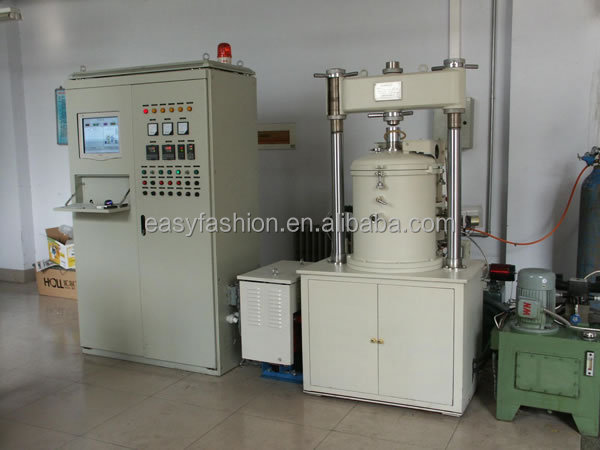

 Hot Press Sintering Machine

  • Specializing in this field for many years
  • High quality products and  favorable prices
  • Quick delivery and satisfying service
  • Hot-selling all over the world
Product Description

 1. Usage

The hot press sintering machine  with induction heating, graphite heating and molybdenum filament heating,is suitable for the sintering of metal powders,inorganic non-metallic materials under vacuum, high temperature, hot pressing and protective atmosphere conditions. Thus it has the function to complete the material’s pyknosis densification, prevent distortion and inhibit the nanometer-powder’s crystalline grain becoming bulky.
2.Main Technical Parameters
Model of  hot press sintering furnace
Rated Power
Rated temperature
Working area size
Ultimate vacuum
Maximum pressure
Displacement
Remark
EF-25-20Y
25KW
2000°C
90×120
5×10-3 Pa
10t
100mm
Single phase
EF-40-20Y
40KW
2000 °C
160×160
5×10-3 Pa
20t
100mm
Single phase
EF-30-16Y
30KW
1600 °C
150×200
6×10-4 Pa
20t
150mm
Single phase
EF-18-10Y
18KW
1000 °C
200×200
5×10-4 Pa
20t
150mm
Single phase
EF-63-20Y
63KW
2000 °C
250×250
5×10-3 Pa
30t
100mm
Three phase
EF-50-22Y
50KW
2200 °C
150×180
5×10-4 Pa
10t
100mm
Three phase
EF-150-26Y
150KW
2600 °C
300×300
10Pa
100t
150mm
Three phase

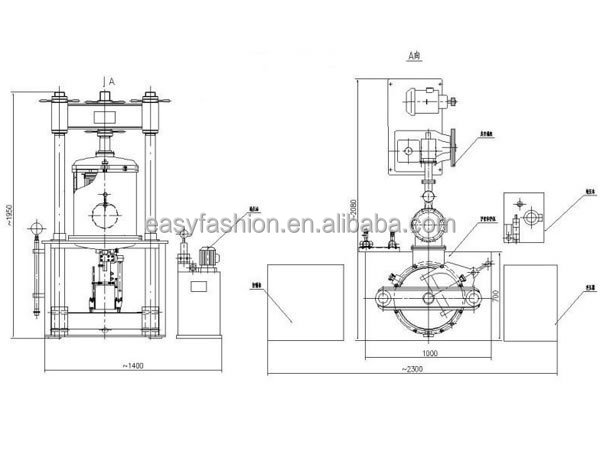

3.Structure
The hot press sintering  furnace is heating vertically (The pressure is from 5T to 100T, two ways of pressure: one and two way), and the hot press sintering  furnace  also has two ways of feeding and discharging: from the top or the side. It consists of furnace shell, heating element, insulation layer, pressure device, vacuum system, electric control system and so on.

Packaging & Shipping

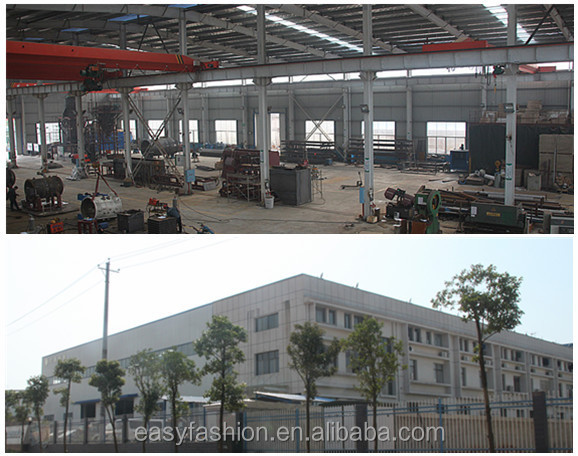

Company Information

Easy Fashion Industry

Specializing in industrial furnaces and equipment

Customizing furnaces according to customers' requirements

Advanced powder and metallurgy manufacturing and melting technology

Passed the ISO9001:2008 and international certificate like CE,CB,GS,etc.

Exporting to more than 15 countries in Europe,the Middle East,Southeast Asia,America,etc.

Certifications





Customers





FAQ

1.What if the above technical parameter can't  meet my requirements ?

Our equipment can be customized according to your requirements.

2.How can I believe your quality ?

Our equipment are  eqquiped with mechanical parts of world renowned brands like Schneider, Omron and so on and also approved ISO9001 certification.

3.Are you a trade company or a factory ?

We are a manufacturer with a huge factory.Warmly welcome to visit our factory and contact with us.
