Product Description
88512 Transmission Center Bearing with CE certification
Specifications
1.OEM ODM service
2.accept customized designs
3.Abundant stocks
4.Material: Steel+Housing
5.Certification: TS16949
6.Usage:
Heavy-duty highway vehicles, including Toyota, Nissan, Mazda, Chevrolet, Ford, Freightliner, Navistar and Volvo-GM
Light-duty pick-ups,Mid-sized trucks,School buses,Vans
7.Inner Diameter: 60mm
8.Centerline height: 86mm
9. Bolt hole center: 219 mm
Material
Related products :

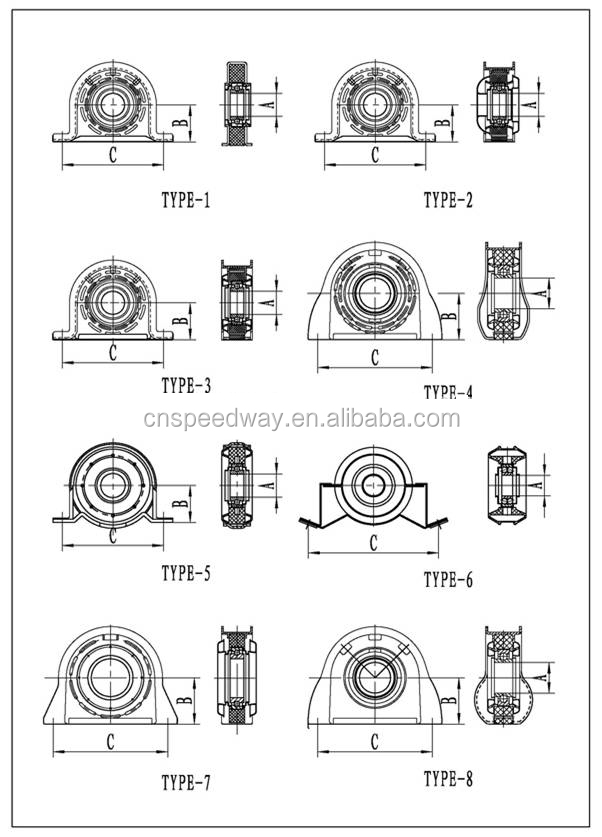

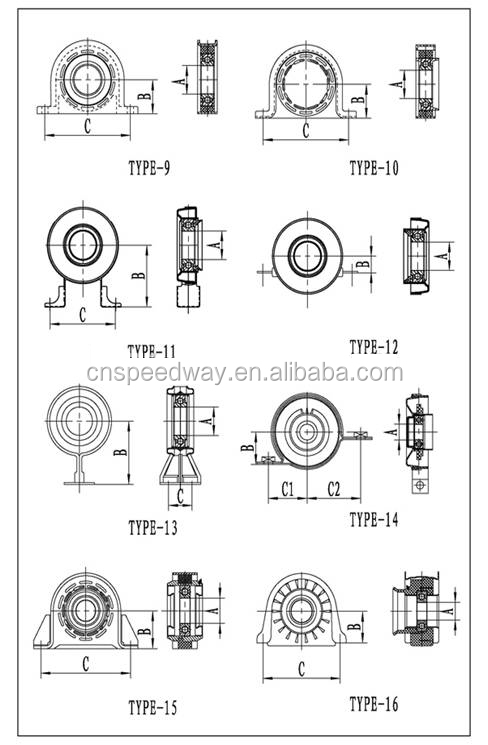

Num. | Part Number | / Dimension(mm) | O.D&Height | Bearing Part Number | Type | ||
Bearing I.D.A | Center Line C | Mounting Holes B | |||||
31 | DT11-783132 | 35 | 59.7 | 168.5 | 72*17/25 | 88507 | TYPE1 |
32 | 211187X | 35 | 57 | 168.1 | 72/17/25 | 88107 | TYPE1 |
33 | 210088-1X | 35 | 57 | 168 | 72*17/25 | 88107 | TYPE3 |
34 | 210391-1X | 40 | 63.5 | 168.4 | 80*21/27 | 88508 | TYPE3 |
35 | 210433-1X | 40 | 63.5 | 168.4 | 80*21/27 | 88508 | TYPE3 |
36 | 210084-2X | 45 | 69 | 193.5 | 85*21/27 | 88509 | TYPE3 |
37 | 210121-1X | 50 | 71 | 193.5 | 90*22/30 | 88510 | TYPE3 |
38 | 210661-1X | 60 | 85.7 | 219 | 110*22/36 | 98512 | TYPE3 |
39 | 210875-1X | 60 | 85.7 | 219 | 110*22/36 | 88512 | TYPE4 |
40 | CB875G | 60 | 85.7 | 219 | 110*22 | 6212-2RS | TYPE8 |
41 | 284.009 | 60 | 83 | 200 | 110*22 | 6212-2RS | TYPE3 |
42 | 284.012 | 55 | 67 | 193 | 90*18 | 6011-2Z | TYPE3 |
43 | 284.014 | 45 | 56 | 168 | 72*19 | 1639243 | TYPE10 |
44 | 284.021 | 55 | 72.4 | 194 | 110*22/36 | 6211/8704103 | TYPE7 |
45 | 37230-35080 | 30 | / | 230 | 55*13 | 6006-2RS | TYPE6 |
46 | CBM55HR | 55 | 27 | 190 | 100*21/25 | 621111 | TYPE31 |
47 | 2700.00 | 35 | 57.1 | 168.5 | 72*17 | 6207-2RS | TYPE3 |
48 | 2701.00 | 45 | 62.5 | 168.5 | 75*19 | 6009ARS | TYPE43 |
49 | 2702.00 | 35 | 56.5 | 168.5 | 72*17 | 6207-2Z | TYPE3 |
50 | 2702.05 | 40 | 58 | 162.7 | 72*1722 | BB1-1108-2RS | TYPE1 |
51 | 2703.00 | 35 | 61 | 168.15 | 72*17 | BB1-1602TN9 | TYPE32 |
52 | 2704.00 | 35 | 56 | 168 | 72*17/25 | 88107 | TYPE1 |
53 | 2704.05 | 40 | 56 | 168 | 72*17/22 | BB1-1108-2RS | TYPE1 |
54 | 2706.00 | 45 | 69 | 194 | 85*19 | 6209-2RS | TYPE3 |
55 | 2707.00 | 40 | 62 | 168 | 80*18 | 6208-2RS | TYPE3 |
56 | 2707.05 | 100 | 72.75 | 194.5 | 125*8 | 6820LHXZ | TYPE41 |
57 | 2707.10 | 55 | 62 | 168 | 90*18 | 6011-2RS | TYPE3 |
58 | 2708.00 | 60 | 67 | 193 | 95*18 | 6012-2RS | TYPE3 |
59 | 2709.00 | 55 | 70 | 193 | 90*18 | 6011-2Z | TYPE3 |
60 | 2711.00 | 55 | 70 | 200 | 90*18 | 6011-2Z | TYPE3 |

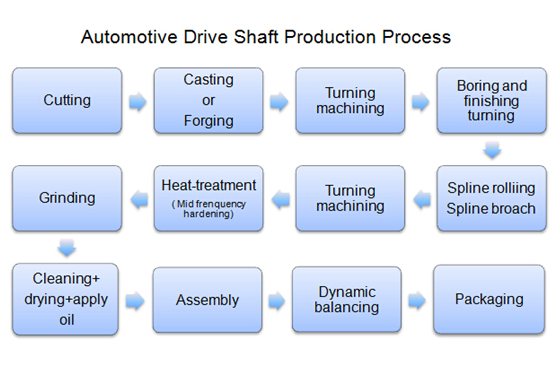

Technological Process
Packaging & Shipping

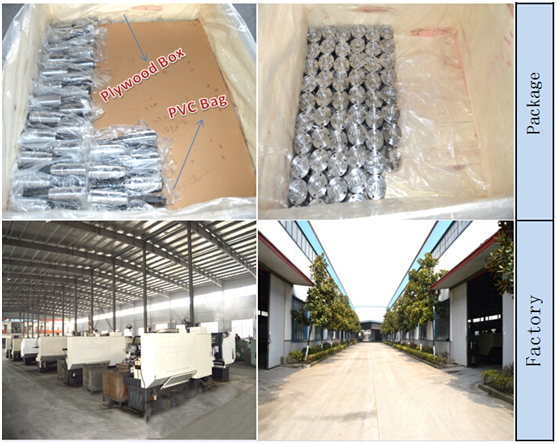

Packing detail:
Packing:
1st step: Upon inspection and test, the parts will cleaning and oiling
2nd step: Put in neutral white PLASTIC BAG
3rd step: A: Rank the parts in the PLY-WOODEN box (around 1cubic metre)
B: Parts in paper box, then put in ply-wooden box
4th step: Cover lid of PLY-wooden box -- Bind -- stick the shipping mark -- ready to shipping
Delivery Detail:
30-35 days for sea order based on containers.
Advantage
1. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability
2. Advanced equipments, professional &experienced designers
3. Fine quality with competitive price and timely delivery
4. Suit for various kinds of vehicles use
5. Perfect after - sale service system
WHY CHOOSE OUR BEARING
1) Over 10 years of rich bearing industry export experience
2) ISO & MPA & CE & SGS & BV certified
3) Professional engineers team and Superior machines
4) Strict quality inspection (3 steps) before shipment, such as SGS/BV third party certified.
Our Services
1.Quick reply for Emails and messages within 24 hours
2.Professional claim and warranty policy
3.Fastest delivery up to your order, normally 30-35 days for sea order based on containers.
Company Information

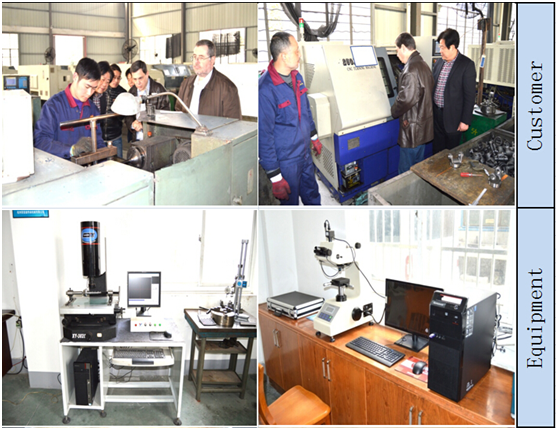

Workshop
Our Certificate :
Contact Information:
FAQ
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 100pcs.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
