Wholesale Sales Of Industrial Utility Cable Ducts Durable Fire Resistant Ducts

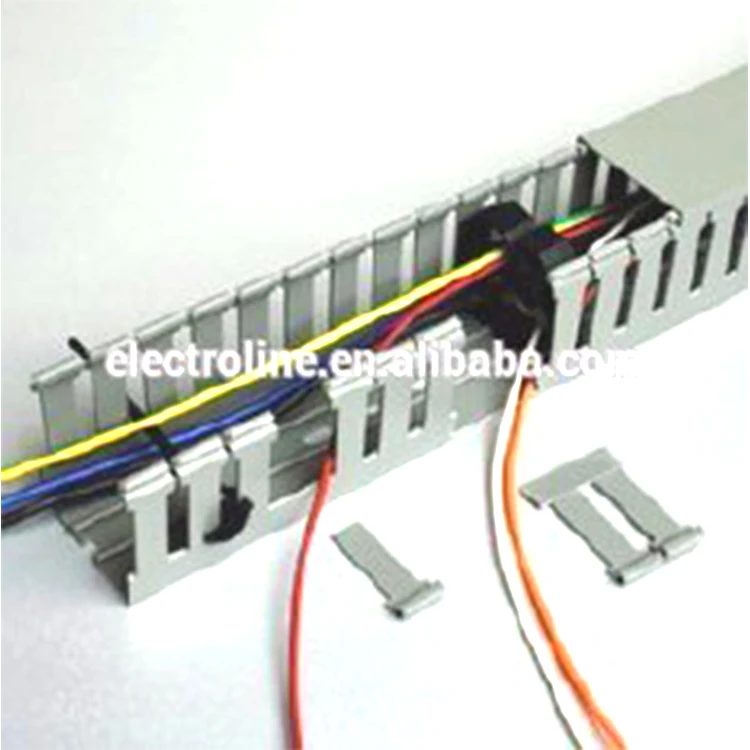

Slotted & Non-Slotted Electrical Wiring Duct:

Material: Environmental protection and rigid PVC with good insulation performance and non-                               combustion. It is environmental protection and pollution-free which is approval by ROHS certificate, and without harmful substances like lead.
Fire-resistance class: UL94V-0 approval, flame-retardant material withgood self-extinguishing and                               insulation.

Product structure: consist of wiring duct and its cover.
Color& Size: grey, white, blue(Other colors can be customized);
Working temperature: temperature-resistance -20 to +85



Features:
1. more than 100 models and sizes, and each equipped with cover.
2. the buckle of the duct and cover is reverse-buckle type, never slided off, with smooth surface, conveniently and qucikly to install, and effectively to prevent slide caused by vibrations.
3. smooth slot, glitch-free, and will not cut hands and abrase the wires.
4. low thread hole, easy combination, knocking down and wiring.
5. the wiring duct will not break, distort, change colors under the temperature of +85



Data Sheet:

Item. No.	Height x Width	Contained Wire (1.5Square MM)	Length-Pcs/Meter
PXC-2015	20x15	5-10PCS	2M
PXC-2020	20x20	10-15PCS
PXC-2025	20x25	10-20PCS
PXC-2525	25x25	10-25PCS
PXC-2545	25x45	25-40PCS
PXC-3015	30x15	5-15PCS
PXC-3020	30x20	10-20PCS
PXC-3025	30x25	15-25PCS
PXC-3030	30x30	20-30PCS
PXC-3035	30x35	30-45PCS
PXC-3040	30x40	35-50PCS
PXC-3050	30x50	45-60PCS
PXC-3525	35x25	25-35PCS
PXC-3535	35x35	40-55PCS
PXC-4025	40x25	20-40PCS
PXC-4030	40x30	35-50PCS
PXC-4035	40x35	40-50PCS
PXC-4040	40x40	45-55PCS
PXC-4060	40x60	60-80PCS
PXC-4525	45x25	25-40PCS
PXC-4535	45x35	40-55PCS
PXC-4545	45x45	60-70PCS
PXC-4565	45x65	90-100PCS
PXC-5015	50x15	25-35PCS
PXC-5025	50x25	25-45PCS
PXC-5030	50x30	30-55PCS
PXC-5035	50x35	50-60PCS
PXC-5040	50x40	60-70PCS
PXC-5045	50x45	70-85PCS
PXC-5050	50x50	90-100PCS
PXC-5055	50x55	100-110PCS
PXC-5060	50x60	95-105PCS
PXC-5080	50x80	180-200PCS
PXC-50100	50x100	220-250PCS
PXC-6040	60x40	90-100PCS
PXC-6060	60x60	140-160PCS
PXC-6525	65x25	100-110PCS
PXC-6545	65x45	180-200PCS
PXC-6565	65x65	140-160PCS
PXC-8035	80x35	160-180PCS
PXC-8045	80x45	180-200PCS
PXC-8050	80x50	200-220PCS
PXC-8055	80x55	240-290PCS
PXC-8080	80x80	280-350PCS
PXC-80100	80x100	300-400PCS
PXC-100100	100x100	300-400PCS

Remark: Standard length is 2 meters, customized length is acceptable. Standard color is white and grey, other colors can be customized
