Products Description

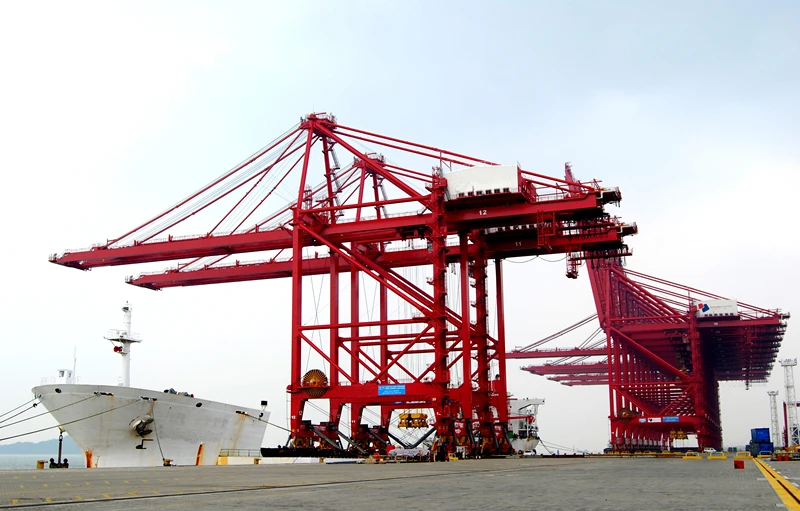

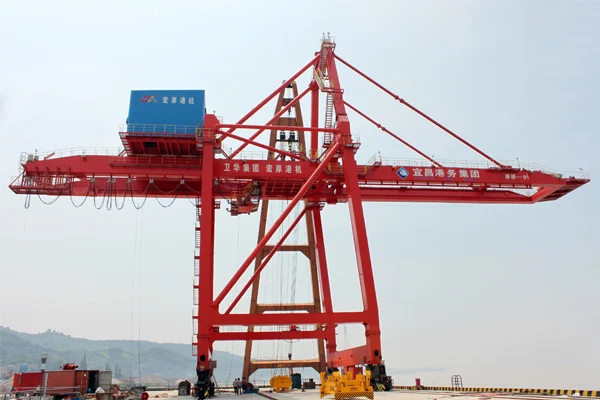

Top Quality Jetty Container Crane Spreader For STS Model
Quayside container cranes (abbreviation STS, QC), mainly composed of steel, lifting structure, tilt mechanism, crane traveling mechanism, trolley traveling mechanism, machine room, lift container, spreader, electrical equipment and other necessary safety and auxiliary equipment.
Depending on the type of trolley, the model is divided into traction, semi-traction, self-propelled, with the adoption of PLC control systems and CMMS automatic-fault monitoring and diagnostic functions, there is sufficient communication and lighting. The steel is divided into single, double box structure, the girder structure and H-type gantry structure.
Depending on the type of trolley, the model is divided into traction, semi-traction, self-propelled, with the adoption of PLC control systems and CMMS automatic-fault monitoring and diagnostic functions, there is sufficient communication and lighting. The steel is divided into single, double box structure, the girder structure and H-type gantry structure.
Structure Introduction & Referenced standards & Use of STS Crane
Structure Introduction:
1.hoisting mechanism2.trolley travelling mechanism
3.long travelling mechanism
4.luffing mechanism
5.Travel mechanism
6. Machine cabin
7.Elevator
9.Spray system
9.Electrical system
10.Other accessory equipment for safety
Referenced standards:
1.GB3811-2008 crane design criterion
2.GB6067-85 lifting equipment safety regulation
3.ISO standards
4.FEM standards
5.JIS standards
Use of STS Crane:
It has various applications, such as loading and unloading at port, material handing at dockyard, ship building and repairing yard, metallurgy industry.
Capacity(under spreader) | t | 30.5 | 35 | 40.5 | 50 | 65LT | ||||
Duty | A7 | A7 | A8 | A8 | A8 | |||||
Span | m | 10.5 | 10.5 | 22 | 22 | 22 | ||||
Base | m | 16 | 16.5 | 16.5 | 18 | 18 | ||||
lifting height(above rail) | m | 16 | 22 | 28 | 38 | 48 | ||||
lifting height(below rail) | m | 26 | 16 | 14 | 14 | 14 | ||||
hoisting speed (full load) | m/min | 50 | 46 | 50 | 70 | 70 | ||||
hoisting speed (only spreader) | m/min | 100 | 90 | 100 | 150 | 150 | ||||
trolley traveling speed | m/min | 150 | 120 | 160 | 220 | 320 | ||||
gantry traveling speed | m/min | 45 | ||||||||
Boom hoisting time (one way) | min | 6 | 6 | 5 | 5 | 5 | ||||
Total Power | kW | ~650 | ~650 | ~920 | ~1400 | ~1800 | ||||
max wheel load (duty) | kN | 320 | 480 | 560 | 650 | 850 | ||||
crane rail | QU80 | QU80 | QU100 | QU120 | QU120 | |||||
Power supply | 3-phase AC (50 or 60Hz) | |||||||||
Related Products
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane,grab bucket crane, jib crane,marine decke crane,electric hoist,electric winch,mobile platforms and other types of hydraulic crane technical requirements.
Company Profile
Weihua Group was founded in 1988. After 33 years of development, it has developed products such as lifting machinery, port machinery, mining machinery,electric hoists, electric winch, parking equipment, special robots and other products.The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
Packing and shipping
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: Remote control with push buttons B: cabin(space capsule seat) control with joystick.
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: Remote control with push buttons B: cabin(space capsule seat) control with joystick.
Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
