A

Technical parameters

wheelbase (mm):3110

Overall dimensions (mm):5420×1880×2435

Complete vehicle curb mass:(kg):2085

GVW (kg):3250

Engine model:3TZ

Transmission: 5 speed manual transmission

Max Torque: 246/3800 (N.m/rpm)

Fuel type: Petrol

Fuel consumption:10.8L

Working manner: in-line, 4 cylinders, water-cooled, direct Injection inter-cooled petrol engine

Displacement (L):2.693

Emission standard:GB18352.5-2013 CHINA V

Maximum power (kw):120

Front overhang/ Rear overhang: 1190/1120(mm)

Front wheel tread/ Rear wheel tread: 1655/1650

Max. speed (Km/h):150

Steering system: power-assisted steering

Tire:195R15C

B

Standard configuration of vehicle

1

Electric side mirrors

2

Power window

3

radio (with CD)

4

Hand-free Intercom system between driver's cab and Patient's compartment

5

2 seats in driver's cab

6

Single upward opening rear door

7

Foot pedal in rear door

C

Air conditioner and lighting system

1

Vehicle-mounted air conditioner in driver's cab

1

2

Vehicle-mounted air conditioner in Patient's compartment

1

3

Ventilation fan mounted on the roof of Patient's compartment

1

4

1 illumination light s left and right side of vehicle outside

2

7

Illumination lights in Patient's compartment

6

8

Spotlight lights in the roof of Patient's compartment

1

9

Ultraviolet radiation disinfector light

1

D

Central power supply distribution system

1

Automatic charging system

1

2

10m mobile cable

1

3

12V outlets in Patient's compartment

3

4

220V outlets in Patient's compartment

3

5

230V/16A waterproof outside outlet with protection cover

1

6

12V DC power-supply system

1

7

Intelligent inverted power supply system(12V -220V)

1

8

Central control system

1

E

Emergency alarm system

1

Control plate of siren and alarm lamp mounted in driver's cab

1

2

100W loud speaker

1

3

Blue Flashing alarm light bar mounted on the front roof of vehicle

1

4

2 Blue Flashing alarm lights mounted on left and right side of vehicle

4

5

Round cylinder alarm lights on the rear roof of vehicle

2

F

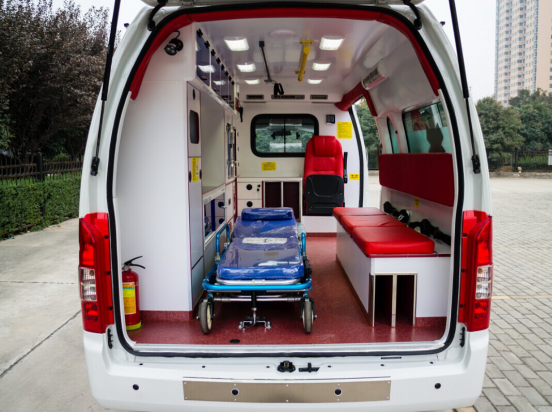

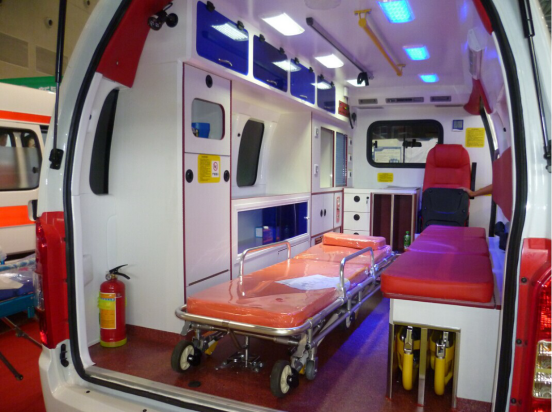

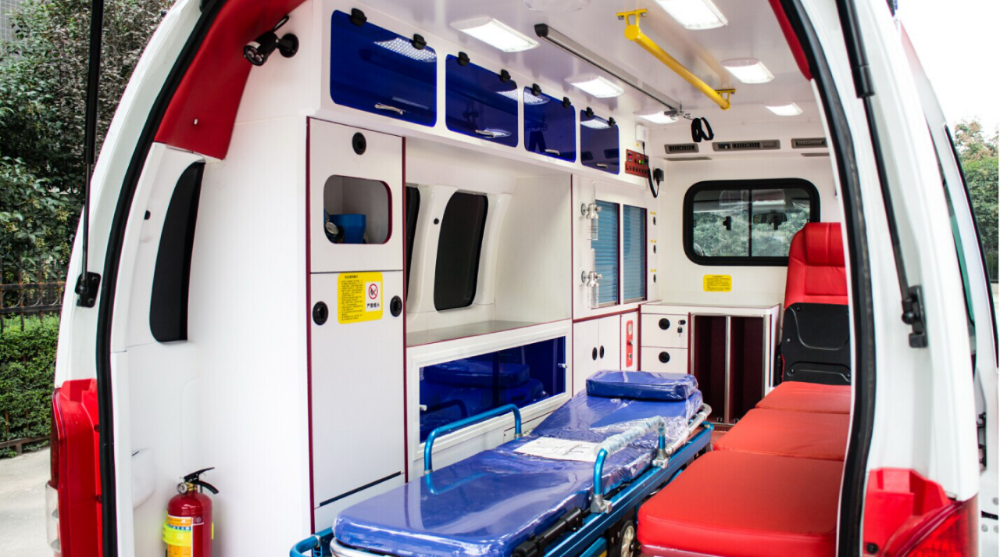

Patient's compartment

1

Compartment wall mounted between driver's cab and Patient's compartment , a glass window in wall to make observation

2

One foldable doctor’s seat mounted to floor near to compartment wall

1

3

Long bench one piece, mounted in right side of patient's compartment

1

4

Oxygen bottle (10L×2) ,mounted in left side of vehicle

5

Oxygen reducing valve

1

6

Instruments and medicine cabinet mounted to the the left side of patient's compartment

7

Wall, door, and vehicle roof adopts aluminum-plastic Composite materials

8

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

9

Raised edge of patient's compartment, dust-proof, anti-skidding, washable

10

Ventilation fan mounted in the interior roof of Patient's compartment

1

11

Illuminating lights mounted to the interior roof of patient's compartment

6

12

Red color reflective strip in waist of body

13

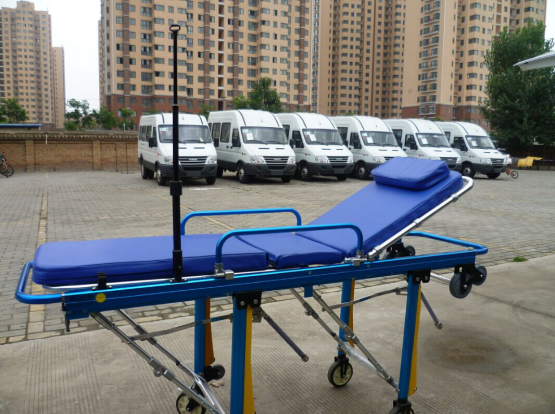

Mobile Self-lifting stretcher mounted to patient's compartment

1

14

Adjustable shovel Stretcher mounted to the interior left side of rear door.

15

220V outside power supply

1
