Блок питания с гидравлическим выравнивателем 380 В переменного
- Категории: Hydraulic Parts >>>
- Поставщик: Wuxi,Jinle,Automobile,Motor,Factory
Поделиться:
Описание и отзывы
Характеристики

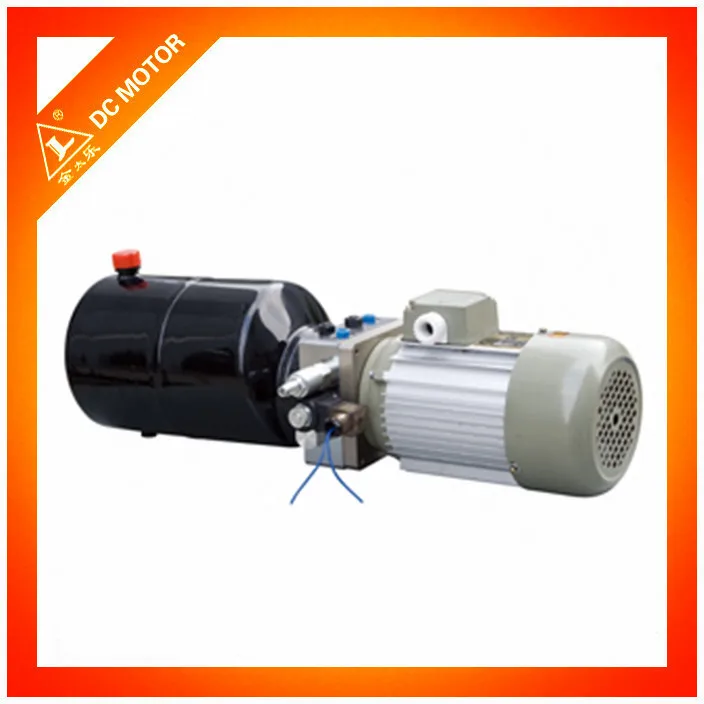

380VAC Dock Leveler Hydraulic Power Pack Unit
Product Description
General Description of hydraulic power pack :
This power unit is designed exclusively for the dock leveler, consisting of high pressure gear pump, DC motor, multi-functional manifold, valves and tank, etc. Once the ramp is fully lifted,the lip rises automatically Both lowering movements are activated by the solenoid valves with speeds adjusted by the throttles.

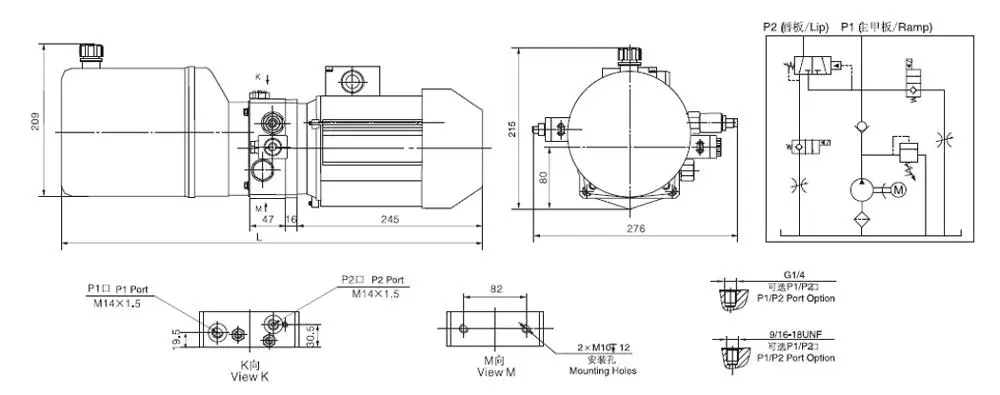

Model Specifications of hydraulic power pack unit 380v :
Model | Motor Volt | Motor power | Displacement | System pressure | Tank Capacity | L(mm) |
JL-E2.1B4E10/2 | 380VAC | 0.75KW | 2.1mL/r | 16MPa | 5L | 558 |
JL-E2.7B4E10/2 | 2.7mL/r | 14MPa |
Remark:
1.Please get in contact with us for the different pump displacement, motor power or tank capacity.
2.The manual override function is available on request.
3.60HZ motors with CSA or UL certification are available upon request.
Special notes
1.The hydraulic power unit is of S3 duty, which can only be worked intermittently, ie., 1minute on and 9 minutes off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15~68 cst, which should also be clean and free of impurities.N46 hydraulic oil is recommended.
4.Check the oil level in the tank after the first start of the power unit.
5.Change the oil after the first 100 hours of running the power unit, then change the oil every 3000 hours.
Packaging & Shipping
Our Services
1,sample service: samples can provide preferential.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
FAQ
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the hydraulic power pack samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Certifications
contact
