High acceleration linear motion
High acceleration linear motion
High acceleration linear motion

High acceleration linear motion


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


linear motor:





1





review



Our Services





 Almost any requirement can be successfully fulfilled


 Satisfactory after-sales service


 Product range





custom








Product Description

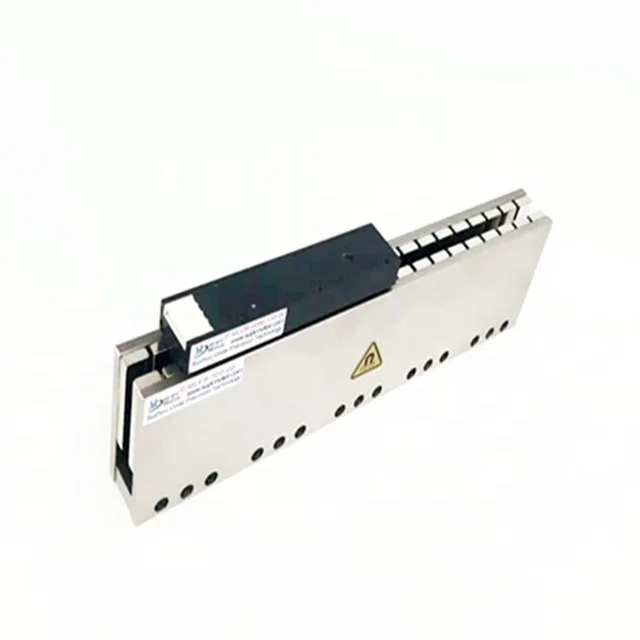

U-type linear motor -D series
Linear motor are untilized in wide variety of products,Markets serviced by SUPT MOTION include:Semiconductor manufacturing equipment, including wafer fabrication and chip packaging equipment ;Flat panel display industry precision test equipment, hard disk manufacturing, manufacturing,printing plate making equipment; Life science, medical equipment, machine vision inspection equipment, a variety of fetching device; Electronic element surface mount, PCB testing equipment, logistics equipment etc.




















































































































D Series--MLCD(Dynamic) MLFD(Stator)
Model/ParMLCD-0055-075-00MLCD-0120-135-00MLCD-0200-255-00
Peak force(Fp)N165360600
Peak current(lp)Amps4.54.57.8
Continuous force(Fc)N55120200
Continuous current(lc)Amps1.51.52.6
Actuator constants(DC motor conversion/3p)(Ka)N/W11.116.921.9
Constant Thrust(L-L)(Kf)N/Amps39.180.580.5
Back EMF constant(L-L)(Kb)V/m/sec22.647.244.8
Electrical constant(Te)ms0.350.350.35
Resistance(L-L)(R)@25℃Ω8.216.18.2
Inductance(L-L)(l)mh2.855.72.86
Heat transfer coefficient(Rth)℃/W*2.6**1.5**0.88
Coil maximum temperature(Tmax)℃120120120
Magnet Pole pitch(2T)mm303030
Mover weightKg0.380.681.3







Packaging & Shipping


 Main port:Shanghai/Shenzhen/Guangzhou or as require.


 Leading time:Normally goods can be ready within in 20-40days.


 Express company:DHL,TNT,UPS,FEDEX,etc.





packingdhl





Company Information


 company





Certifications


 ce
