Оптовая продажа нейлоновая сетка/чайная сумка

Описание и отзывы

Характеристики



Nylon Micron Filter Mesh Food Grade
Model	Mesh/cm	Mesh/inch	Aperture (μm)	Thread Dia. (μm)	Open Area (%)	Thickness (μm)	Theoretical Ink (cm3/m2)
5-500	5	13	1500	500	56	1000	308
6-400	6	15	1267	400	58	840	228
7-350	7	18	1079	350	57	640	209
8-350	8	20	900	350	52	645	232
9-200	9	24	911	200	67	370	92
9-250	9	24	861	250	60	460	145
9-300	9	24	811	300	53	570	205
10-250	10	25	750	250	56	530	148
12-300	12	30	533	300	41	495	256
14-200	14	35	514	200	52	380	135
16-200	16	40	425	200	46	400	155
16-250	16	40	375	250	36	420	240
17-200	17	42	388	200	44	380	160
18-220	18	45	366	220	37	400	207
20-200	20	50	300	200	36	375	190
24-150	24	60	267	150	41	305	130
28-150	28	70	207	150	34	278	150
30-120	30	76	213	120	41	230	105
32-100	32	80	213	100	46	240	77
36-100	36	90	178	100	41	195	86
40-100	40	100	150	100	36	192	95
44-100	44	110	127	100	31	175	105
48-80	48	120	128	80	38	150	73
56-60	56	142	120	60	44	110	48
59-60	59	150	110	60	42	98	50
64-60	64	163	96	60	38	120	55
72-50	72	183	89	50	41	90	44
80-50	80	203	75	50	36	93	48
88-40	88	224	74	40	42	65	34
96-40	96	244	64	40	38	76	37
100-40	100	254	60	40	36	78	39
104-40	104	264	56	40	34	79	40
120-40	120	305	43	40	27	80	46
Note:The above datas are theoretic,please reference the actual data if there is a difference!



---A detailed description



Characteristic & Benifit	1.Material: 100% nylon (polyester available if needed) 2.Weaving: Plain weave (Twill weave available if needed) 3.Mesh Count: 4T~140T mesh/cm(13mesh~355 mesh/inch) 4.Max. width: 365cm (143inch) 5.Color: white/yellow/black  6.Monofilament or Doublefilament 7.We can provide products in special specifications according to your demand.
Application	wholesale nylon mesh / tea bag nylon mesh  are extensively used for filtration in aviation,airspace and petrochemical industries and polyester filter mesh(polyester filter cloth) with black color is specially used for dustproof on the electronic speakers such as monile phone and other various speakers.   1.food filter   2.medicine   3.coffee fitler   4. water dispenser   5. seaculture   6. Flour processing factory   7.ceramic   8. electric kettle   9. juicer   10. water clarifier
Packing	Plastic bag inside,carton or wooden case outside



---Pictures show

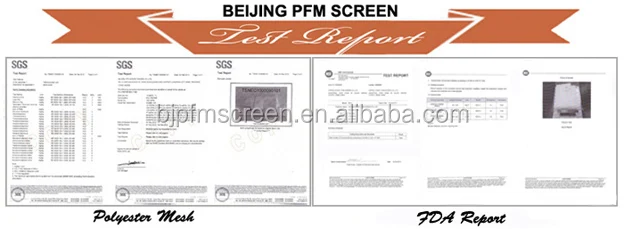

  ----Description company and certificate

----------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------------------

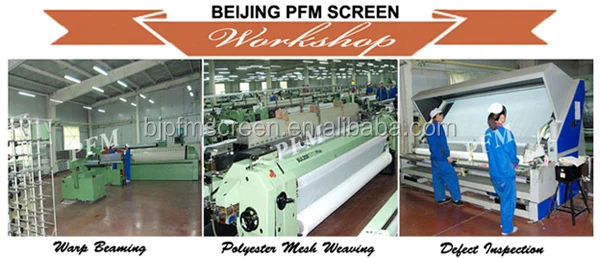

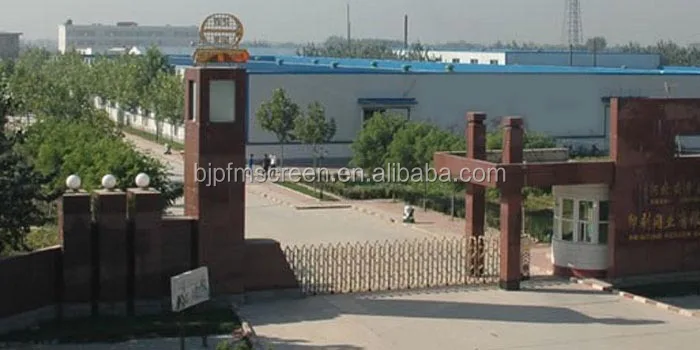

1.Our Factory

With more than 20 years development,PFM is not only professional in field of mesh ,but also in wire mesh filters and baskets.Our strong R&D capability(56 engineers and technicians) enables us to innovate almost everyday.So the customized orders are available.

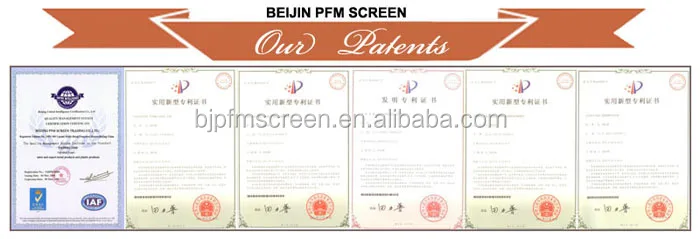

2.Our Patents
Established in 1987, PFM Screen is engaged in research and development of mesh.It is aim at creating a mesh R&D base,achieving self-development and innovation.
Now several patents of PFM Screen have approved by The people's Republic of China Intellectual Property Office,some are patent for utility models,and some of them are patent of invention.
Relying on powerful R&D capabilities and stable product comprehensive performance,PFM Screen has enough strength in the competition of global market.

Advanced production devices:83 sets P7100&P7150 Sulzer polyester printing mesh weaving looms,23 sets Sweden Texo polyester dryer fabric looms,50 sets Japanese GRS1300 wire mesh looms,and 46 sets of other machine and devices including automatic warp arranging machine,heat setting machine,Austria Automatic seaming machine and other test facilities.
