Quality hot sell new arrival plastic circular loom





Description of new arrival plastic circular loom:

1,About product:

The latest new Lever Type Small Cam Four Shuttles Circular Loom is developed from the energy-saving type of four shuttle loom (Patent No.: ZL200920119545.9), its features are adopting small cam with lever driving system, completely eliminating the friction structure between the sliding bar and the sliding block, and reducing energy-consumption from the static friction when starts running, the main motor power now it is 2.2KW instead of 4KW, and much less noise, achieving outstanding feature in energy-saving. At the same time, it can use the 100% recycled and low tensile strength plastic tape in production.



2,MainTechinecal Details:

Model No.	SJ-FYB750-4
Number of Shuttle	4
Layflat Width (mm)	350-750
Max. Number of Warp	640/768
Revolution of Main Motor (r/min)	140-180
Production Capability (10*10) (m/min)	1.4-1.8
Power of Main Motor(kw)	1.5/2.2
Gross Power(kw)	2/2.7
Weight (kg)	1800
Installing Dimensions (L × W × H) (mm)	8300 × 2200 × 2800



New Model Four Shuttles Circular Loom is the most widely use equipment, which features in reasonable design, convenient operation and maintenance, high adaptability and production efficiency, long durability and high price ration. It can produce fabric tube with smooth surface and make full

use of recycled plastic tape of lower intensity. It is the ideal equipment for making plastic woven sacks.

The Newly Researched and Developed Patented Product---SJ-FYJ650-4 Circular Loom.

Its technical performance is much more superior under at the same circumstances with 10% less noise, 25% less power consumption and longer durability of wearing parts, which is highly appraised by our customers. (Patent Number: 03272471.3)



Item&Para.

Type\\Item&Para.	Shuttle Number	Folded Width (40warps/100mm)	Max. Warp Number	Prime Motor Rotational Speed (r/min)	Gross Motor Power	Capacity (m/h) (40warps/100mm)	Installation Dimension (L×W×H) (mm)	Weight (kg)
SJ-FY750-4	4	300--750	640	140--170	4.5	80--100	8500×2500×2800	1900
SJ-FY750-4A	4	300--750	640	140--170	4.5	80--100	8500×2200×2800	2000
SJ-FYJ650-4	4	300--650	640	140--170	4.5	80--100	8500×2200×2800	2000
SJ-FY1100-4	4	550--1100	896	105--130	4.5	60--75	9300×2350×2800	2300
SJ-FY1400-4	4	700--1400	1120	95--115	6.2	55--65	9500×2600×3000	2800

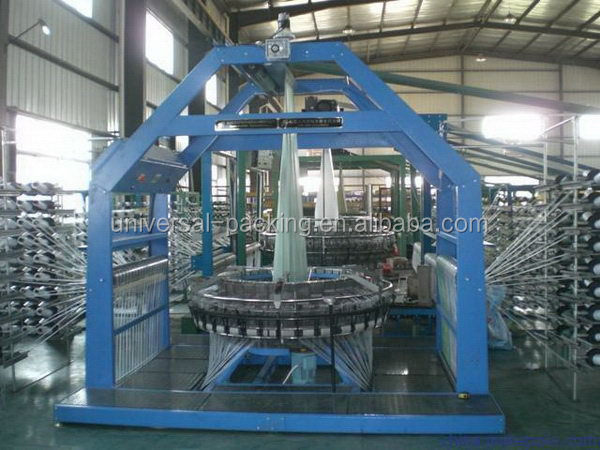

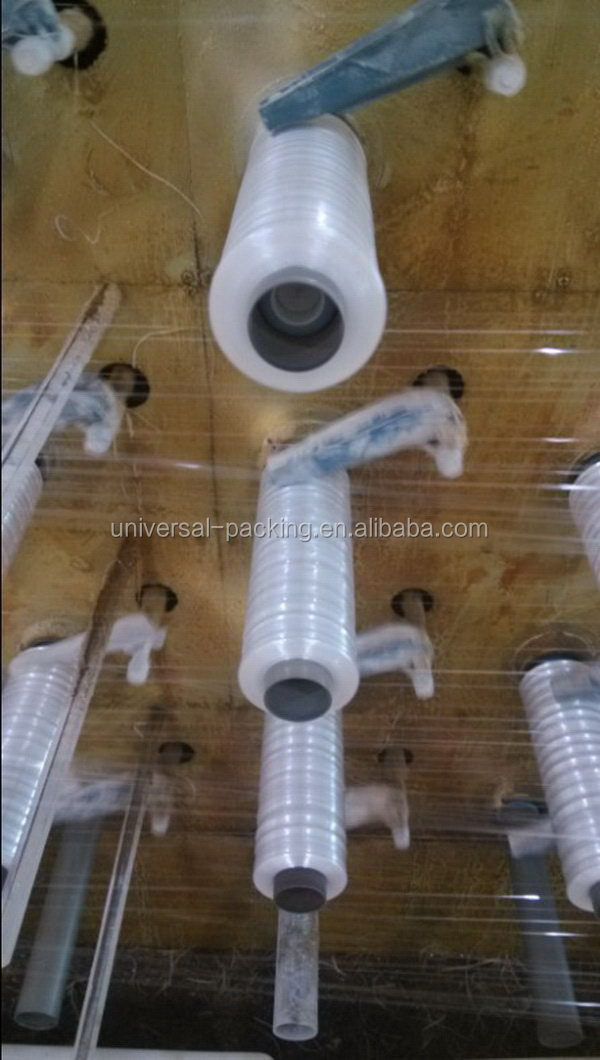

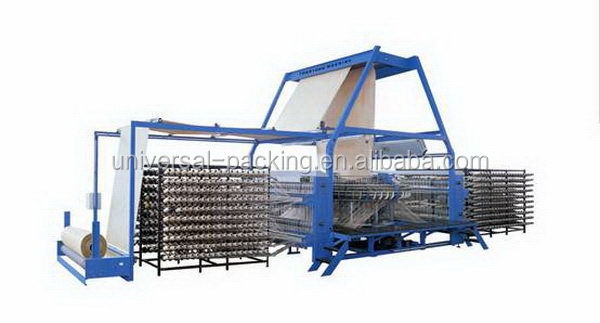

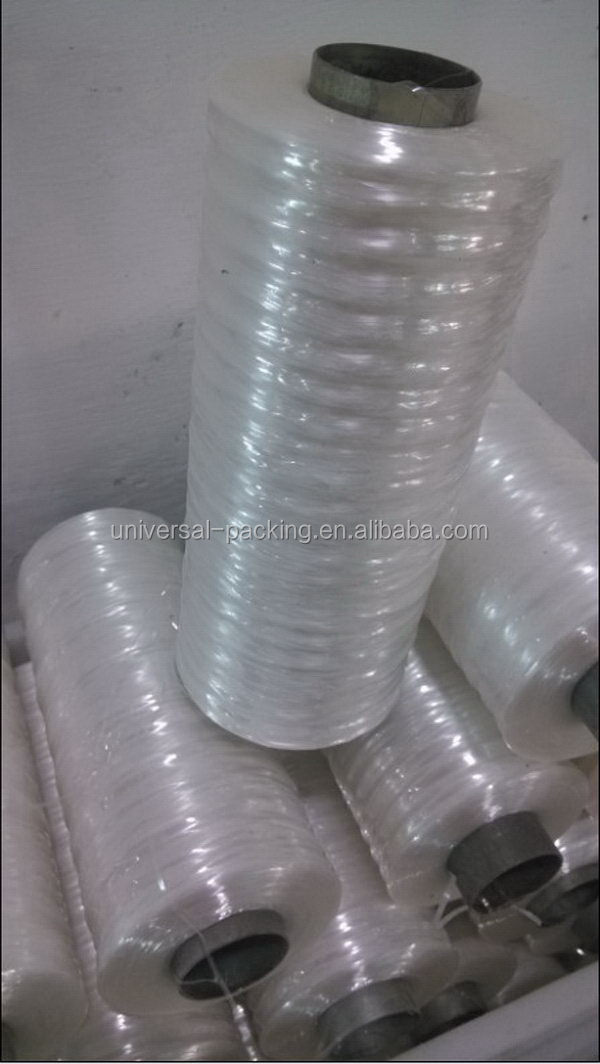

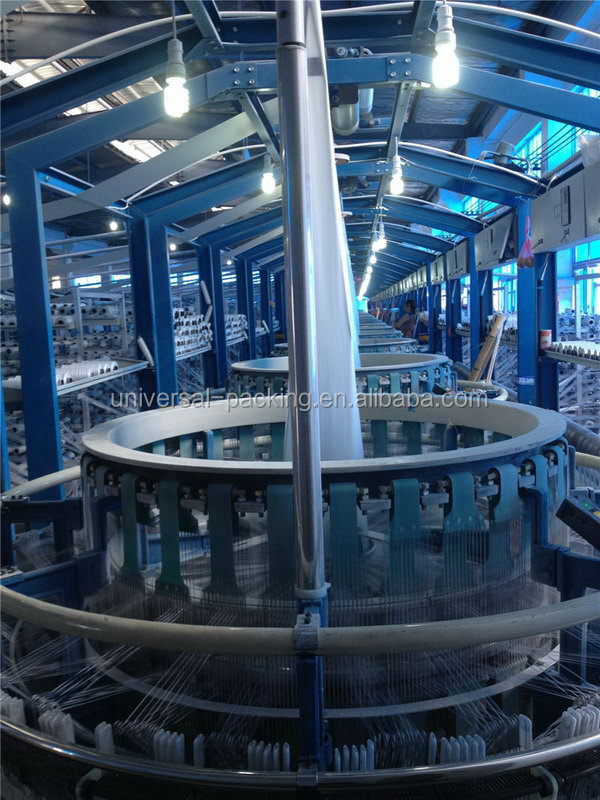

Pictures of new arrival plastic circular loom:

















About Us:



WHY CHOOSE US

Advantage&Service

1. Wen got 36years experience.Got good reputation in our “China Plastic Bag City”,80% factory use our machine.

2,Several senior engineers service in many countries, all the year round, with our after-sales office in countries.
3. Machines with quality guarantee for one year, life-long maintenance.
4. A lot of machines can be monitored via Internet, solve customer requirements immediately
5. Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical Stability.
6. Undertake various non-standard machinery, solve the customers' special requirements


Contact us now, expect the cooperation with you ! ! ! !
