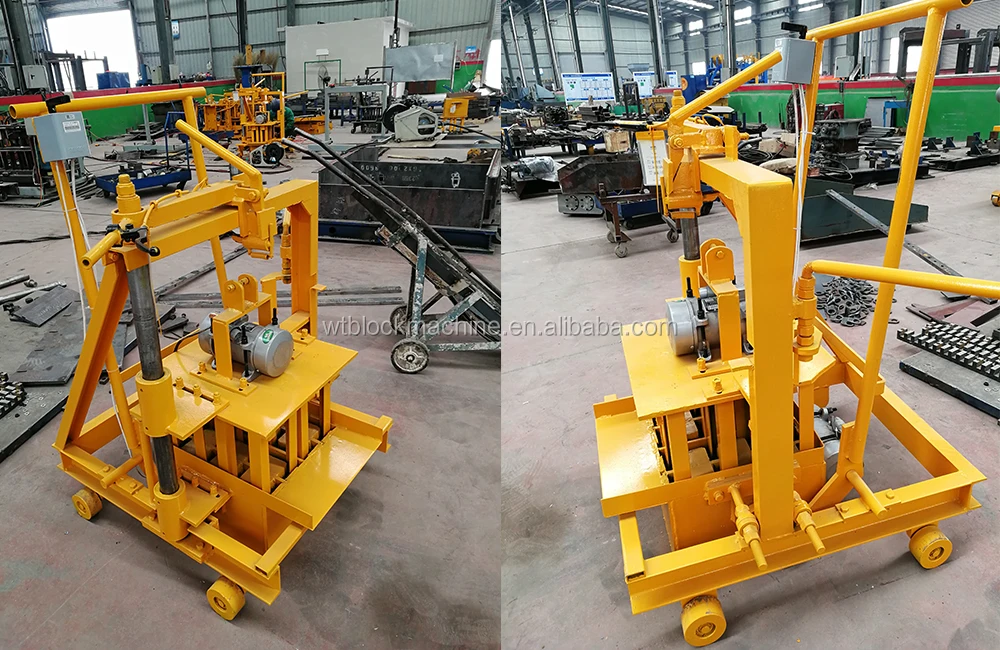

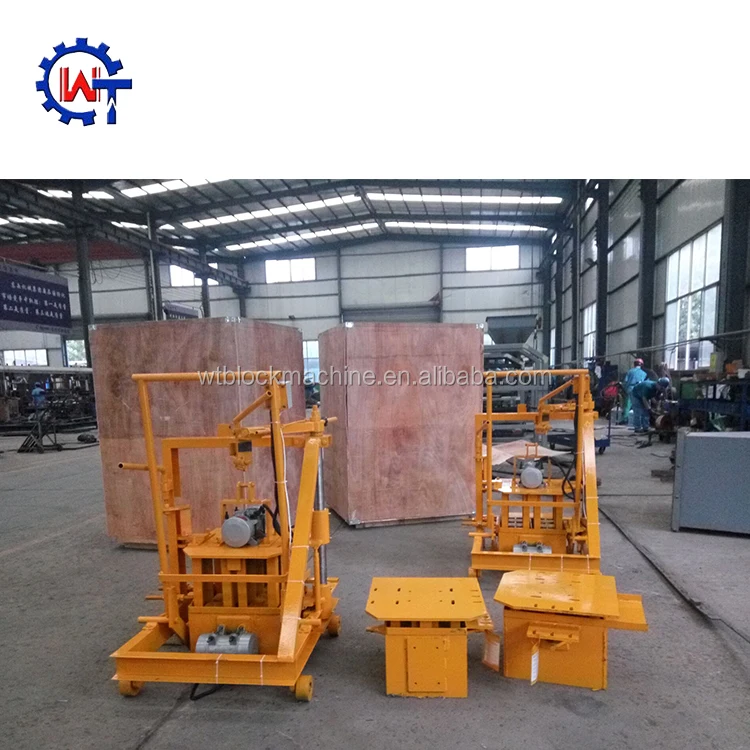

QT40-3C egg laying concrete block making machine used brick makingmachine for sale
QT40-3C is developped from original brick forming machine, it is equipped witn two vibrators,
the resonable install place gurantee the material feed into the mould box quickly and
shake the material of good density and inform, so the bricks made are strong
Technical parameters
Main specification and technical parameters | |
Overall size | 920(L)×800(W)×1258(H)mm |
Shaping cycle | 40-45 seconds |
Vibration frequency | Max.2500 R/Min |
Upper vibrator | 0.75KW |
Nether vibrator | 0.75kw |
Electricity | 380V/220V/ (adjustable) |
Total weight | 300 KGS |

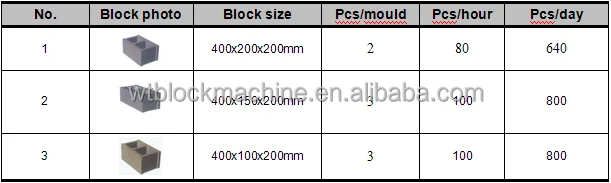

Bricks and capacity
QT40-3C can make many hollow brick by changing moulds, solid bricks are also possible, but the
height must be higher than 170mm.

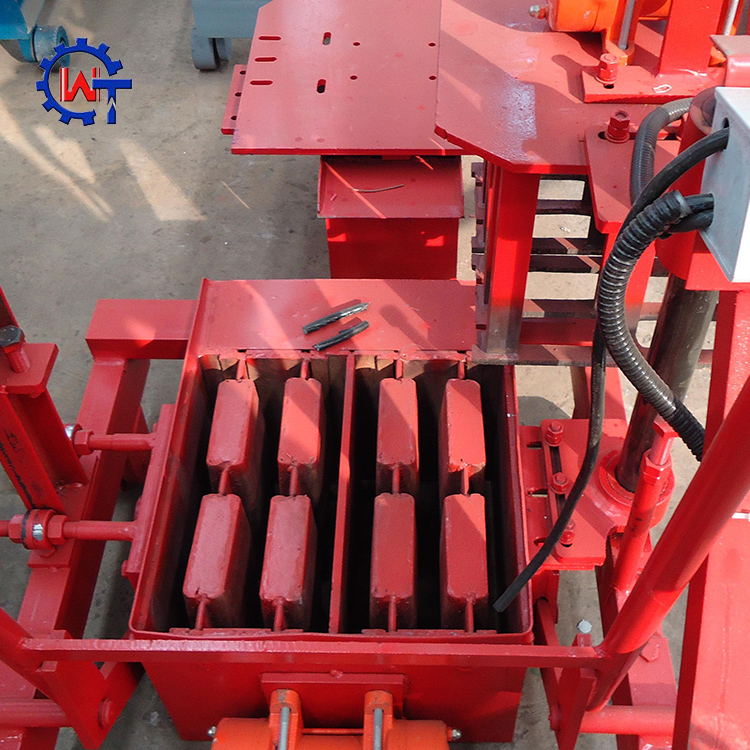

Moulds of QT40-3C
Speical treatment of Moulds
1. Moulds should be in enviroment for 1000 celcius
2. Carbonization during the treatment, moulds will be more anti-wearing and stronger

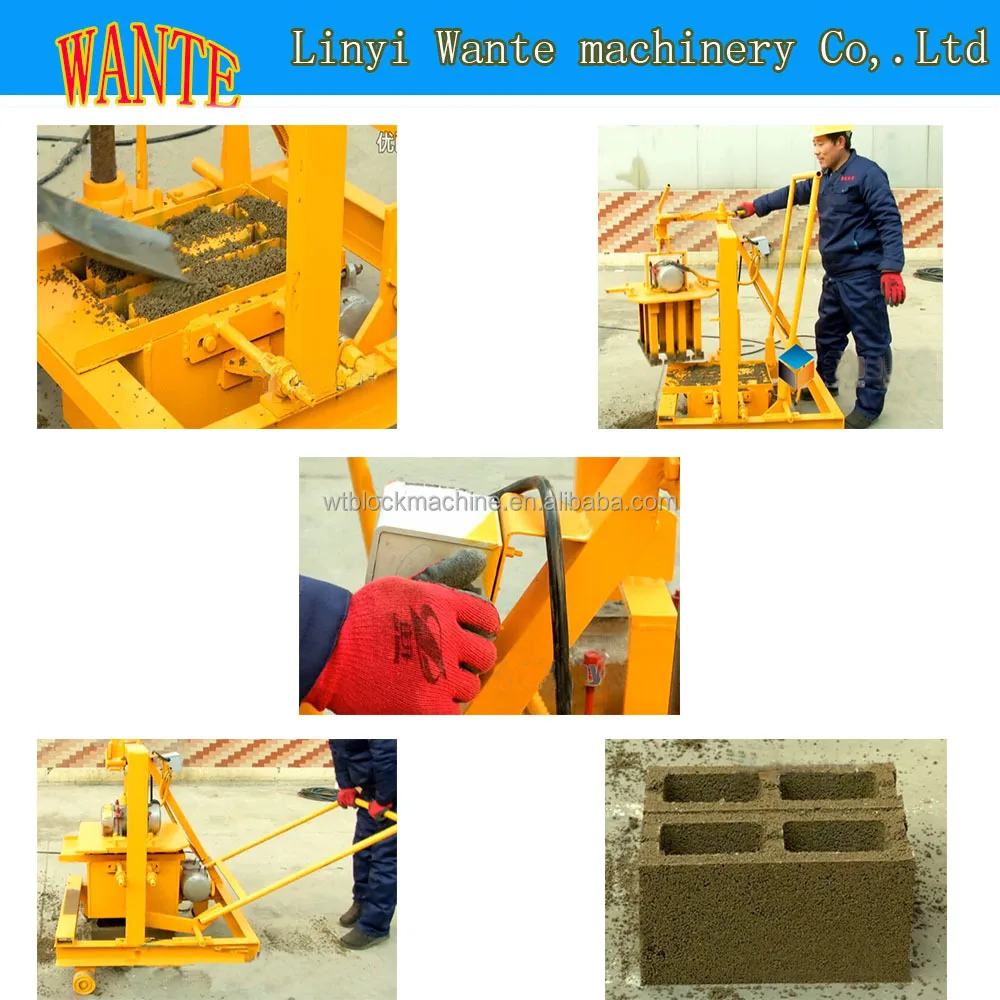

Make the bricks
1>Feed the materials
2>Turn back the mould box
3>Turn on the electrical vibrator button
4>Lift the mould
4>Move the machine
Related product
QT40-3A semi -auto movable block machine
6>Material proportion
1. cement,sand,stone (standard concrete block)
Raw Materials | Quantity per piece |
Water | 3used brick making machine for sale |
Cement | 9-12used brick making machine for sale |
River sand | 40used brick making machine for sale |
Crushed stone | 45used brick making machine for sale |
Other specify | You can change the proportion depend on your needs. This block is heavy, but strong |
2.cement,slag (light concrete block)
Raw Materials | Quantity per piece |
Water | 3used brick making machine for sale |
Cement | 9-12used brick making machine for sale |
slag | 80-90used brick making machine for sale |
Other specify | You can change the proportion depend on your needs. This block is light, not so strong |
3. cement,sand,stone,slag
Raw Materials | Quantity per piece |
Water | 3used brick making machine for sale |
Cement | 9-12used brick making machine for sale |
Sand | 10-20used brick making machine for sale |
Stone | 30-40used brick making machine for sale |
slag | 25-50used brick making machine for sale |
Other specify | You can change the proportion depend on your needs. This block is a little light, strong |
Customers of QT40-3C
The delivery of QT40-3C
