Specifications

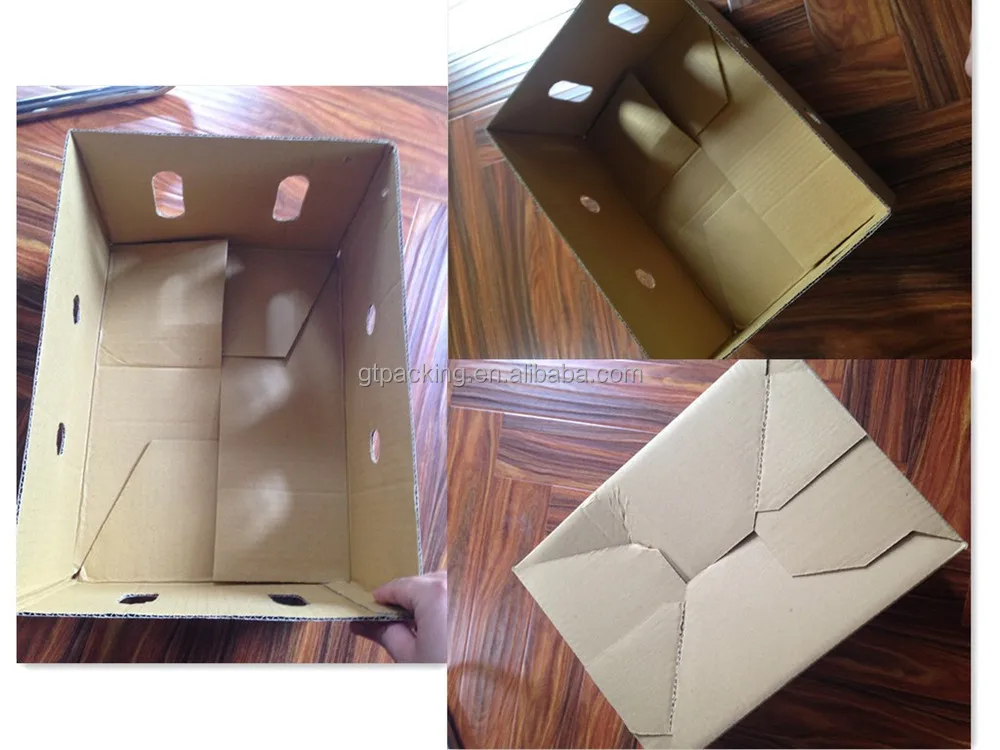

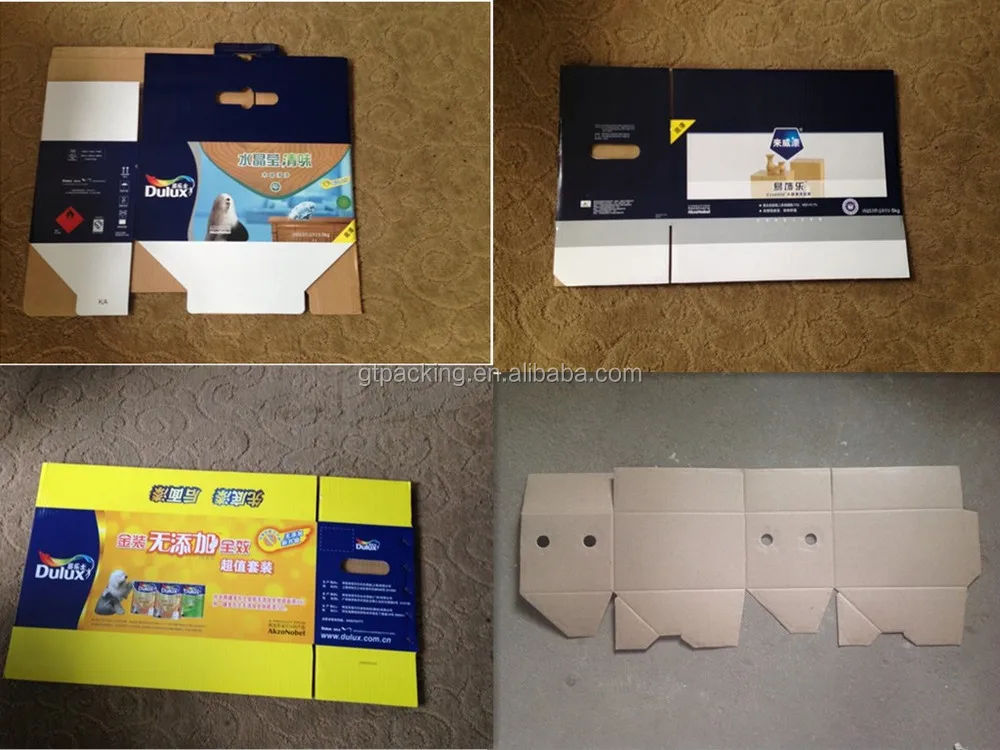

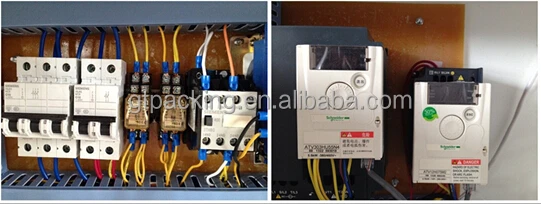

corrugated paper box machine SHH-E model is a new economical High speed with pre-fold and crash lock bottom machine . The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. Is more economical, more practical models. Professional for the wine box , gluing side keep stright no inclined , sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom . Also be used for various types of crash lock bottom boxes, medicine boxes, cosmetic boxes anddo simple box.

Main Technical Parameters

SHH-1200E

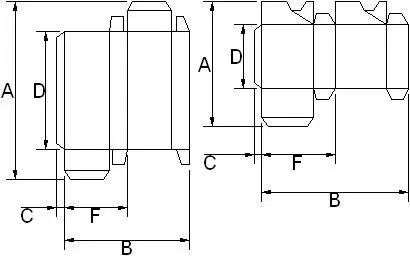

Type of box	A max	A min	B max	B min	Cmin	Dmax	Fmin
No-edged bottom box	700mm	70mm	860mm	130mm	8mm	70mm	51mm
Edgde Bottom box	700mm	160mm	790mm	180mm	9mm	90mm	85mm

SHH-1400E

Type of box	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	70mm	840mm	130mm	8mm	70mm	51mm
Edgde Bottom box	700mm	160mm	920mm	180mm	9mm	90mm	85mm

SHH-1600E

Type of box	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	70mm	1200mm	130mm	8mm	70mm	51mm
Edgde Bottom box	700mm	160mm	1100mm	180mm	9mm	90mm	85mm

SHH-1800E

Type of box	A max	A min	B max	B min	Cmin	Dmax	Fmin
No-edged bottom box	700mm	70mm	1400mm	130mm	8mm	70mm	51mm
Edgde Bottom box	700mm	160mm	1300mm	180mm	9mm	90mm	85mm

SHH-2000E

Type of box	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	70mm	1600mm	130mm	8mm	70mm	51mm
Edgde Bottom box	700mm	160mm	1500mm	180mm	9mm	90mm	85mm

Characteristics

Max linear velocity	220m/min
Suitable paper quality	220~800g/m² Cardpaper and E and F wave corrugated paper.
Paste box basic form	One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste
Way of folding in reverse	One and three fold 90º ,two and four fold 180º
Feeding way	Automatically and continuously feeding
Needed power	8.5KW 380V
Overall Size	11000×1450(1650) (1850) (2050) (2250)×1350mm
