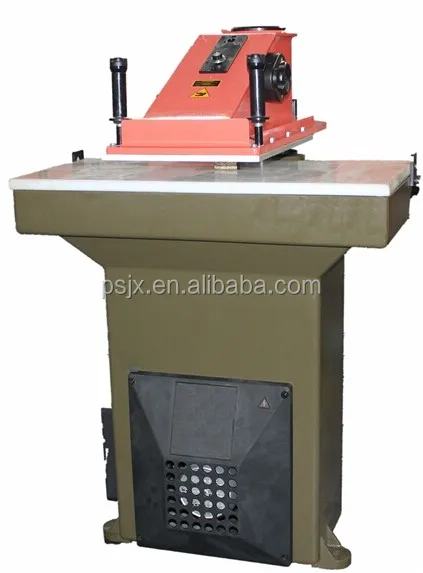

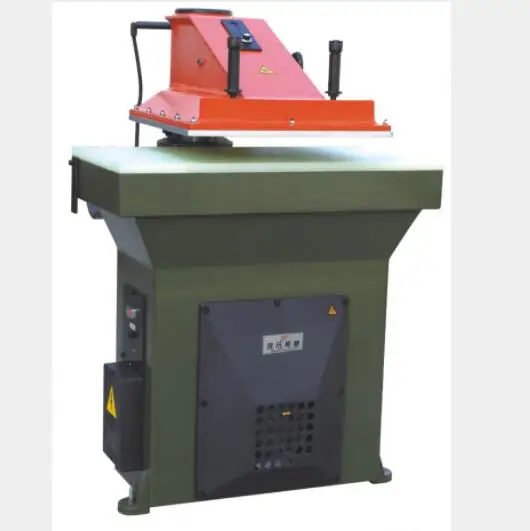

Машина для резки обуви/машина производства пластиковой
- Категории: Apparel Accessories Machinery >>>
- Поставщик: Jiangsu,Ponse,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Size Information
Model | PS-S22 |
Cutting Force | 22ton |
Cutting Area | 900*450mm |
Arm Width | 370*550mm |
Maximum Stroke | 90mm |
Motor Power | 1.5kw |
N.W(approx.) | 960kg |
G.W(approx.) | 1120kg |
Color | red+dark green |
Overall Dimensions (WxDxH) | 900*800*1380mm |
Packing Size | 1050*1000*1500mm |
Voltage | 380v |
Hydraulic oil | 46# 48# 68# |

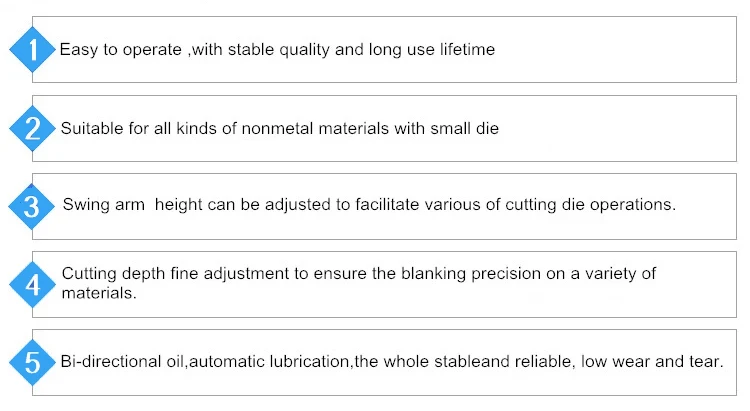

Application

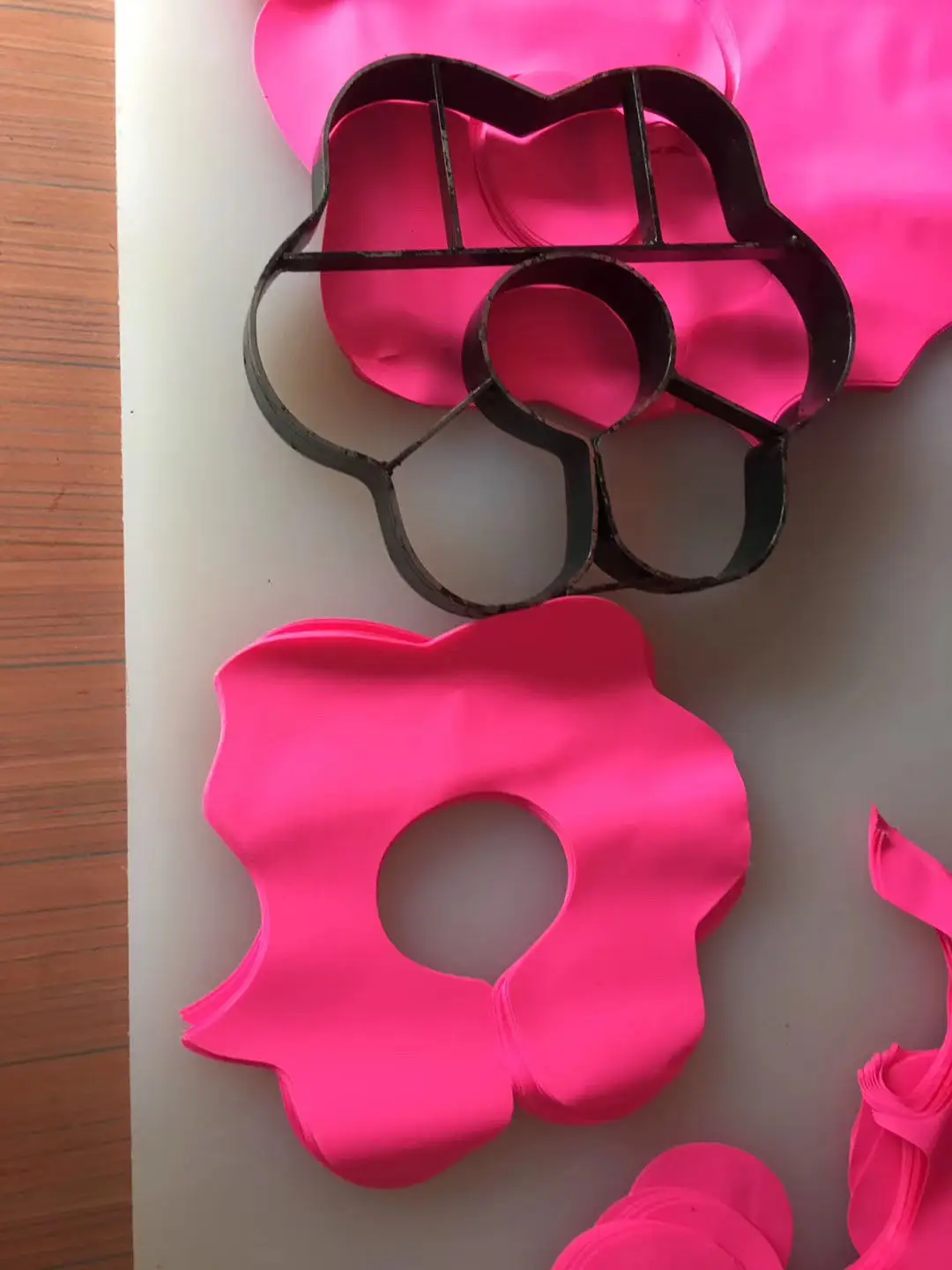

2) The machine is applicable to cutting of various nonmetal materials by die cutter.
3) The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
4) High speed and low energy consumption.
5) To meet the need of frequent replacement of die cutters of different sizes, another type of machine that can timely output three kinds of cutting force if available for selection.
6) The height of working stable is adjusted by hand wheel. Operation is simple, easy and safe. High cutting speed.
5) To meet the need of frequent replacement of die cutters of different sizes, another type of machine that can timely output three kinds of cutting force if available for selection.
6) The height of working stable is adjusted by hand wheel. Operation is simple, easy and safe. High cutting speed.
Related Products
Packing&Shipping
External Package : Standard Exportd Container
* Machines well packed with protective film and loaded in export container;
* English version operation manual and technical data;
* One-Year-Period wear parts;
* Tool kit
* Machines well packed with protective film and loaded in export container;
* English version operation manual and technical data;
* One-Year-Period wear parts;
* Tool kit
Company Introduction
Ponse is major in producing lamianting machinery ,cutting machine and embossing machinery .Now company is towards to dgital control machinery direction .We have many engineers who have more than 10 years rich experience in machinery in dustry .From system design to develop, spare parts process coice,and system matching for different OEM machine assembly.
We offer high profermance product for client, we take high stability,high reliable as the standard,strict product testing to make sure to offer users worry-free machine."Power saving , Stability,Precision" is our basic request to prodcut .
We offer high profermance product for client, we take high stability,high reliable as the standard,strict product testing to make sure to offer users worry-free machine."Power saving , Stability,Precision" is our basic request to prodcut .
FAQ
1. Established time?
Ponse was established for 20 years, specialized in laminating machine, cutting machine and embossing machine.
2. Warranty period?
One year.
3. How to choose right laminating machine?
Please let us know as below:
1 which material to laminate
2 what is final usage
3 what is max width for your material roll
4. Installing and operating?
Our Professional people will go for installing and offer the technical guidance as requests.
5. How many staff for operating of the machine?
3 to 4 workers
6. Voltage requirements?
According to different voltages in various countries, to be customized.
7. Payment Terms?
FOB, CIF, CNF or Ex-work; payment way: T/T or L/C.
8.Delivery method?
Shipping by sea. Shanghai Port to destination country.
Ponse was established for 20 years, specialized in laminating machine, cutting machine and embossing machine.
2. Warranty period?
One year.
3. How to choose right laminating machine?
Please let us know as below:
1 which material to laminate
2 what is final usage
3 what is max width for your material roll
4. Installing and operating?
Our Professional people will go for installing and offer the technical guidance as requests.
5. How many staff for operating of the machine?
3 to 4 workers
6. Voltage requirements?
According to different voltages in various countries, to be customized.
7. Payment Terms?
FOB, CIF, CNF or Ex-work; payment way: T/T or L/C.
8.Delivery method?
Shipping by sea. Shanghai Port to destination country.
