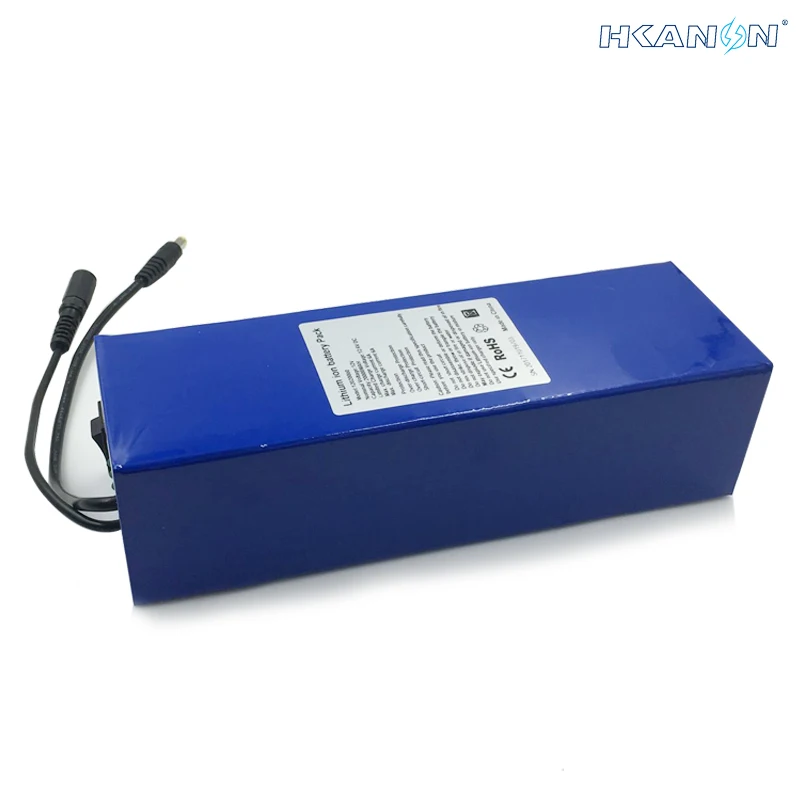

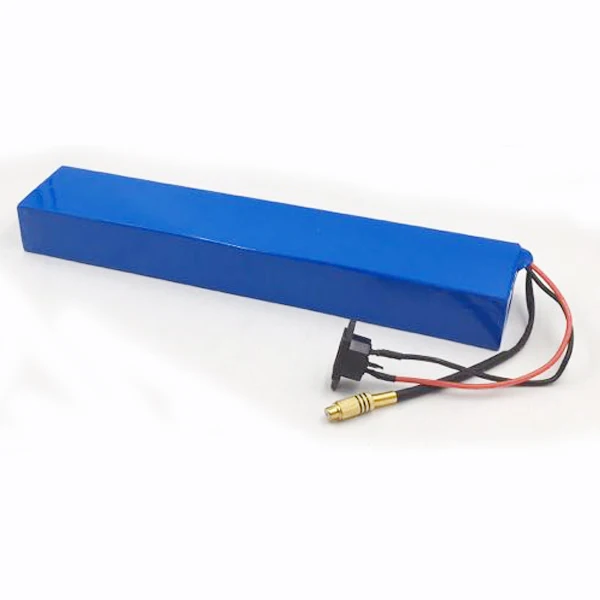

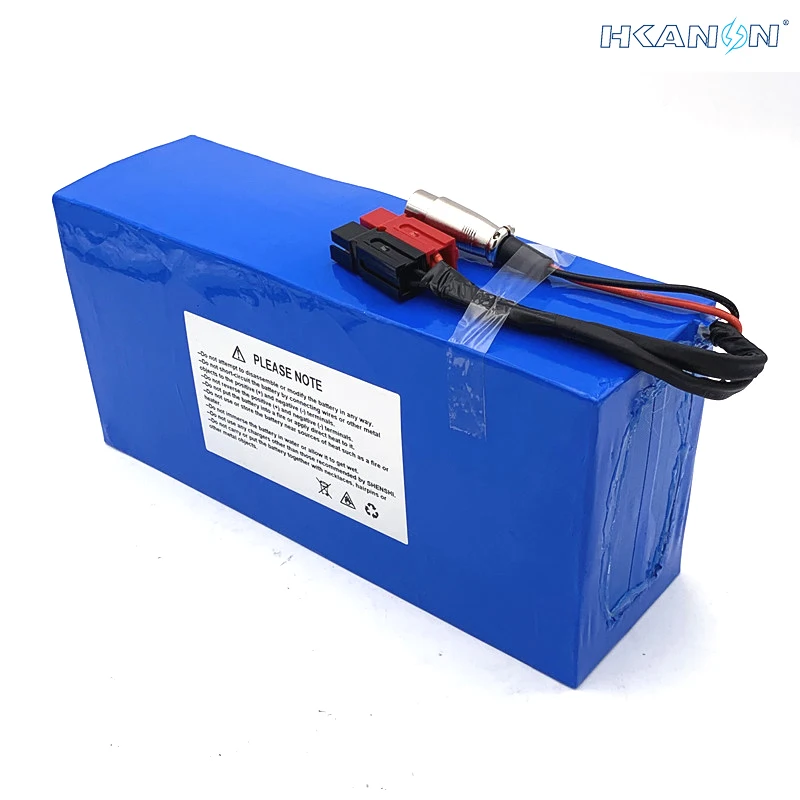

Перезаряжаемый Электрический электровелосипед 1500 Вт литий-ионный аккумулятор 48 В 20 Ач для электровелосипеда гольф-мобиля AGV
- Категории: Batteries >>>
- Поставщик: Shenzhen,Herculesi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
ATTENTION !!
There are four way (Airfreight, courier, ocean and railway) to deliver battery to your door for different quantity.
Please message us for the lower shipping cost before placing order to us.
Please message us for the lower shipping cost before placing order to us.
Battery size, voltage, capacity, power, shape can be customized, if you need custom battery please message us.
Specification
48V 12Ah | Size: 70mm*120mm*255mm / Weight: 3.9KG |
48V 15Ah | Size: 70mm*120mm*260mm / Weight: 4KG |
48V 20Ah | Size: 70mm*160mm*260mm / Weight: 5.8KG |
48V 25Ah | Size: 70mm*200*260mm / Weight: 6.8KG |
48V 30Ah | Size: 70mm*240mm*260mm / Weight: 8.2KG |
48V 50Ah | Size: 140mm*200mm*260mm / Weight: 13.5KG |
48V 80Ah | Size: 140mm*260mm*320mm /Weight: 21.5KG |
OEM are welcome: | Battery size, voltage, capacity, power, shape can be customized |
Material | Lithium Ion Battery (LiNiCoMnO2) | ||
Nominal Voltage | 48V | ||
Nominal Capacity | 12Ah/ 15Ah/ 20Ah/ 26Ah/ 30Ah/ 40Ah/ 50Ah/ 60Ah/ 80Ah | ||
18650 cell/ Samsun cell/ LG cell/ Panasonic cell/ Sanyo cell | |||
Capacity can be customized as your demand. | |||
(13S 30A BMS) | Over-charge & discharge protection. Temperature control function. Short circuit protection. Balance the cells and ensures long cell life. | ||
Charge Model | CC / CV | ||
Charge Current | 2A / 5A Charger | ||
BMS Charge Cut-off Voltage | 54.6V | ||
Cell Overcharge Protection Voltage | 4.2V / Cell | ||
Max Continuous Discharge Current | 30A | ||
Peak Discharge Current | 60A | ||
BMS Discharge Cut-off Voltage | 36 +/-1V | ||
Cell Over-discharge Protection Voltage | 2.75V / Cell | ||
Charge Temperature Range | 0~45°C | ||
Discharge Temperature Range | -20~60°C | ||
Cycle Life | 800~1000 cycles | ||
Our certifications | ISO9001, UL 1642, CE, ROSH | ||
Dimension | Customized as your requirement. | ||
Weight | about 5.8 Kg | ||
Application | E Bike, Scooter, Motorcycle, AGV, Golf craft, EV, Inverter, Robot | ||
Warranty | 26 Months | ||
Part Included | 1× Battery 1× 54.6V 2A Charger | ||

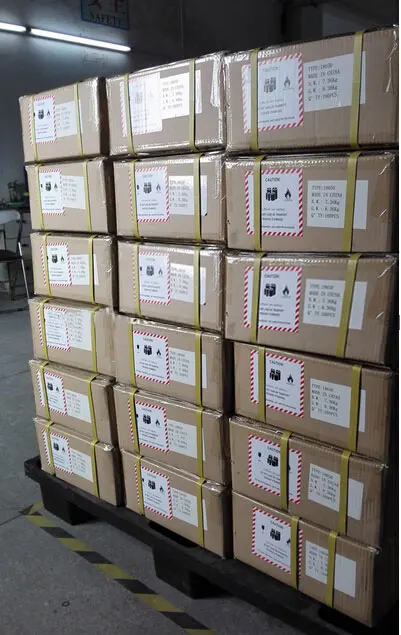

Packing & Delivery
If cell was broken as packing when shipping, we will bear it and send new cell to you again.
FAQ
WHICH BATTERY SHOULD I CHOOSE?
- It depends on the application, different application has their own optimal solution. This question we need consider material of battery, weight, capacity, rated power, cycle life, working temperature, charging method, power efficiency, veracity of discharge time under Max discharger current, power management of BMS system, user experience and so on.
WHAT CELLS ARE YOUR BATTERY PACKS MADE UP OF?
- it depend on the application, we need consider shape, weight, size of battery and battery working environment. However A grade cell is necessary.
HOW MANY VOLTS SHOULD I CHOOSE?
- Depending on your motor. If your motor is rated DC 48V, battery must be rated 48V DC. If your motor is rated AC 300V, voltage of battery must match your inverter, power need be higher than motor. For example, if your inverter accept rated DC 72V – 96V to AC 300V, means battery can be made to rated 72V or 96V. But we need consider rated power of motor and discharge rate of battery to decide 72V or 96V which one rated voltage is better for your application.
HOW MANY AMPS DO I NEED?
- Also depending on your motor, battery rated power must be higher than motor, we need consider energy loss.
HOW MANY AMP HOURS DO I NEED?
It depends on your demand. How many Kwh you need battery to save? How many time you want the battery work per charging. Or how far your bike or car can move under per charging.
- It depends on the application, different application has their own optimal solution. This question we need consider material of battery, weight, capacity, rated power, cycle life, working temperature, charging method, power efficiency, veracity of discharge time under Max discharger current, power management of BMS system, user experience and so on.
WHAT CELLS ARE YOUR BATTERY PACKS MADE UP OF?
- it depend on the application, we need consider shape, weight, size of battery and battery working environment. However A grade cell is necessary.
HOW MANY VOLTS SHOULD I CHOOSE?
- Depending on your motor. If your motor is rated DC 48V, battery must be rated 48V DC. If your motor is rated AC 300V, voltage of battery must match your inverter, power need be higher than motor. For example, if your inverter accept rated DC 72V – 96V to AC 300V, means battery can be made to rated 72V or 96V. But we need consider rated power of motor and discharge rate of battery to decide 72V or 96V which one rated voltage is better for your application.
HOW MANY AMPS DO I NEED?
- Also depending on your motor, battery rated power must be higher than motor, we need consider energy loss.
HOW MANY AMP HOURS DO I NEED?
It depends on your demand. How many Kwh you need battery to save? How many time you want the battery work per charging. Or how far your bike or car can move under per charging.
ANY MORE?
We have various cell & BMS for battery pack.
Chines cell, Japanese cell, Korean cell.
OEM order are welcome.
Please kindly let us know your requirements so that we can provide you nice solution.
Welcome to contact us.
The products what we produce is to meet your need.
Thanks for your time.
Please click the button to send us an email.
Thanks so much........
Chines cell, Japanese cell, Korean cell.
OEM order are welcome.
Please kindly let us know your requirements so that we can provide you nice solution.
Welcome to contact us.
The products what we produce is to meet your need.
Thanks for your time.
Please click the button to send us an email.
Thanks so much........

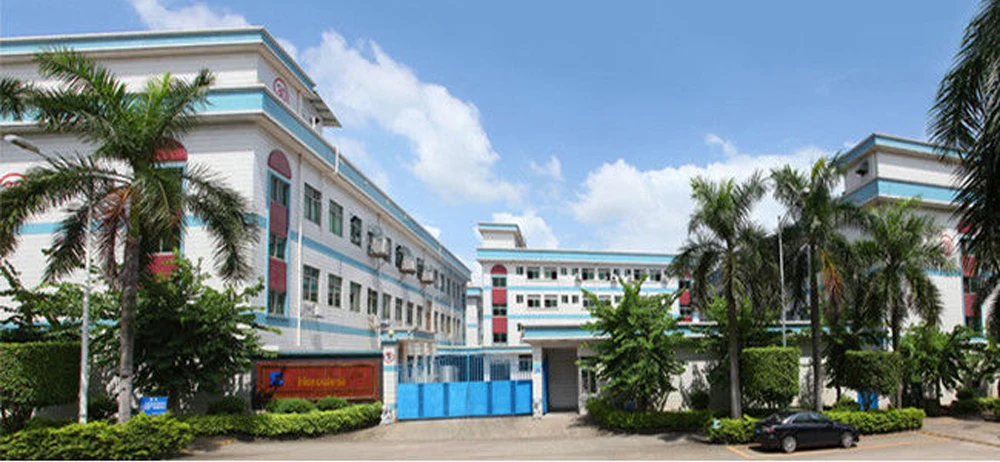

Company Profie
Our Advantages
- Offering cell solution for matching customer's device of Voltage, Current, Power, Lifespan and Budget.
- Offering BMS solution for making sure the Safety & Constancy of battery.
- Offering Nickel, Cooper, Aluminum solder tab / bus bar for the different characteristics of battery.
- Offering structure design of battery case to keep weight bearing, insulation, shockproof, cooling, heating & flat cable.
- CE / RoHS EN / IEC62133, EN / IEC61000,EN55022 / 55024, EMC, UL1642 / 1973, FCC, CB, KC, UN38.3, MSDS
- Core competence is battery solution & after service. QUALITY IS OUR CULTURE
- Offering BMS solution for making sure the Safety & Constancy of battery.
- Offering Nickel, Cooper, Aluminum solder tab / bus bar for the different characteristics of battery.
- Offering structure design of battery case to keep weight bearing, insulation, shockproof, cooling, heating & flat cable.
- CE / RoHS EN / IEC62133, EN / IEC61000,EN55022 / 55024, EMC, UL1642 / 1973, FCC, CB, KC, UN38.3, MSDS
- Core competence is battery solution & after service. QUALITY IS OUR CULTURE
If you need details of certificate, please message us directly.
North America Certificate: CE / UL
Europe Certificate: CE/ RoHS / REACH
Asia & Australia Certificate: PSE / KC / CQC / BIS
Global Certificate: CB / ICE62133 / UN38.3 / MSDS
Europe Certificate: CE/ RoHS / REACH
Asia & Australia Certificate: PSE / KC / CQC / BIS
Global Certificate: CB / ICE62133 / UN38.3 / MSDS
Herculesi Concepts:
- A company without innovation means company no soul.
- A company without core technology means no backbone.
- A company without competitive products means no future.
Herculesi Mission:
- Craftsman's spirit, nice quality, professional service, environmental protection.
Herculesi Vision:
- Creating new battery, strive to be a century-old brand.
The spirit of challenge In difficulties, care each other, helep each other,
never leaving,never discarding.That is Herculesi people.

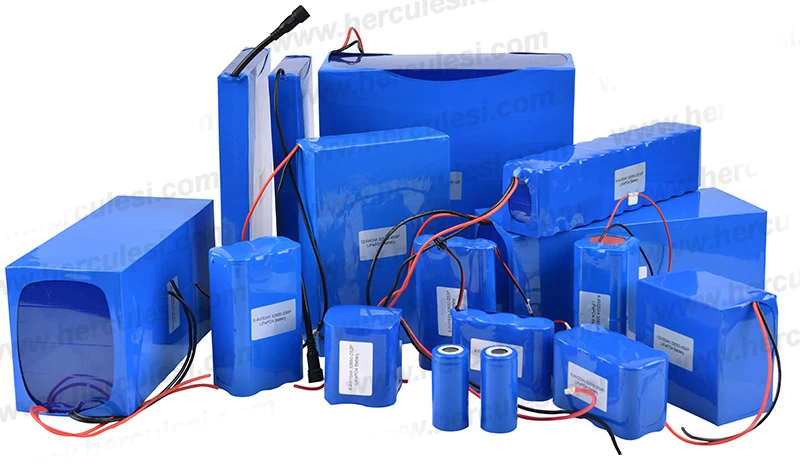

We are specialized in Lithium ion NMC/ LiFePO4 battery.
- A company without innovation means company no soul.
- A company without core technology means no backbone.
- A company without competitive products means no future.
Herculesi Mission:
- Craftsman's spirit, nice quality, professional service, environmental protection.
Herculesi Vision:
- Creating new battery, strive to be a century-old brand.
The spirit of challenge In difficulties, care each other, helep each other,
never leaving,never discarding.That is Herculesi people.
We are specialized in Lithium ion NMC/ LiFePO4 battery.
