Product Description

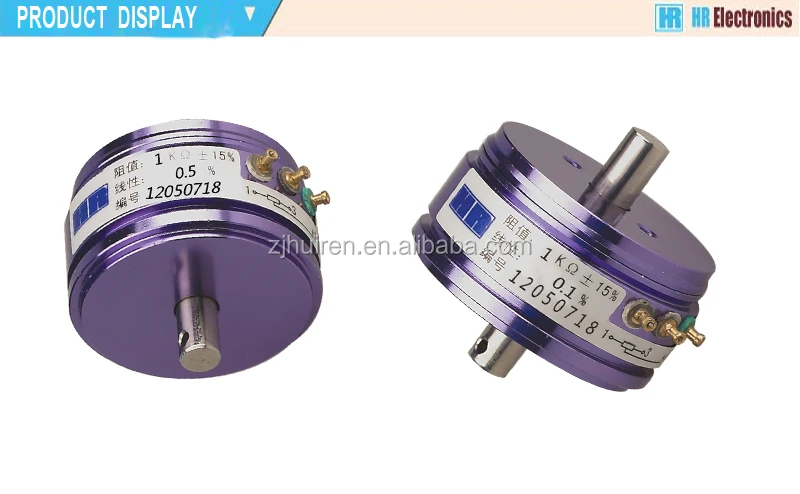

The precision conductive plastic angular displacement sensor adopts a hard antirust aluminum case and molded
integrated conductive plastic base. Imported precious metal brush and current collecting parts, stainless steel shaft with high speed bearing ensure high linearity, long mechanical life, high resolution, less dynamic
noise and convenient and reliable installation.

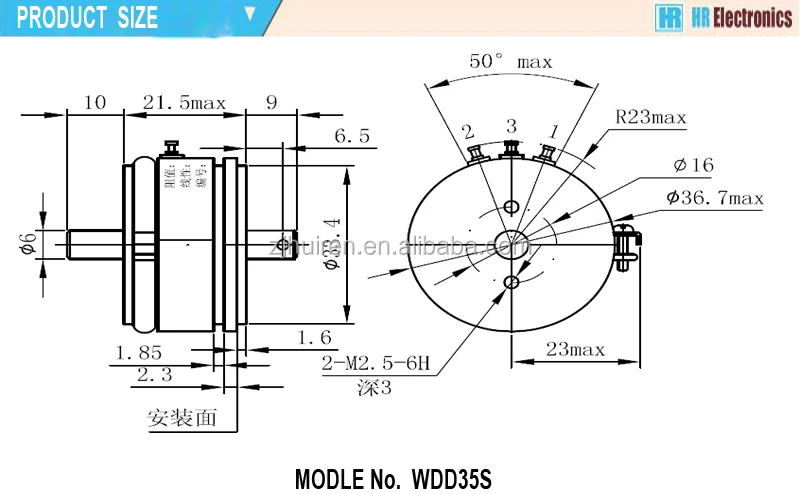

Mechanical parameter: Angular Displacement Sensor WDD35S
| Electrical: | |
| Standard Resistance | 1K, 2K, 3K, 5K, 10K (Ω) |
| Resistance Tolerance | ±15% |
| Independent Linearity | 0.1%, 0.2%, 0.3%, 0.5%, 1.0% |
| Electrical Travel | 345°±2° |
| Power Rating | 2W ( @70°C ) |
| Resist. Temperature Coefficient Of Wire | ≤ ±400 P.P.M/°C |
| Insulation Resistance | ≥1000MΩat 500V.D.C |
| Dielectric Strength | 1 minute at 1000V(AC.RMS) |
| Output Smoothness | ≤±0.10% |
| Mechanical: | |
| Mechanical Travel | 340° |
| Starting Torque (MAX.) | ≤10x10-4N.M |
| Shaft | Stainless Steel |
| Housing Case | Aluminum alloy |
| Environmental: | |
| Life Expectancy | Approx. 50,000,000(Shaft Revolutions) |
| Operating Temperature | -55°C~ +125°C |
| Vibration | 15G 2000Hz |
| Shock | 50G 11ms |
Advantage:
1. Substrate: Use the imported materials--DAP resin It has the good stability, water resistance, heat resistance, chemical resistance.
2. Electric brush and Collecting components: Use Alloy Which is made of six different Precious Metals. With the advantages of Hardness, heat resistance and corrosion resistance .
3. Lubricating oil: The lubricating oil used in the Our Products is aviation instrument lubricating oil. With Excellent high-temperature performance, mechanical stability and oxidation stability.
Packaging & Shipping
To be packed in standard packing. 1 pcs in a box; 12 boxes in a carton.
The goods can be shipped by sea, by air, or by express.
Our Services
We would provide our high quality products and sincere service to meet customer demend.
Company Information
Zhejiang HuiRen Electronic Limited Company is located in the center of Huzhou where is called a bright pearl of Nantaihu of north of the Zhejiang province.
Our company is specialized in sophisticated electric conducted plastic products such as precision angular diaplacement sensor, precision linear displacement sensor and precision conductive plastic potentiometers. The products are widelyly used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and medical instruments and so on.
Our company focuses on quality management. Its aim is to satisfy the customers and serve all customers sincerely.
