General Description:
Lab twin-screw extruder can test even only a small amount of material, especially for color-matching, raw material evaluation, new formula research and development and pre-screening for pre-mixing materials. The machine is handy and convenient with attractive price-performance ratio, and is the best choice for various institutes labs,universities and research institutes.
>Main features:
1.Very low energy-consumption
2.Quiet operation
3.can process standard-sized granules
4.Self-cleaning capacity
PP/PE/PVC granules making machine making machine/KTE-20 lab equipement of twin-screw extruder pelletizing machine

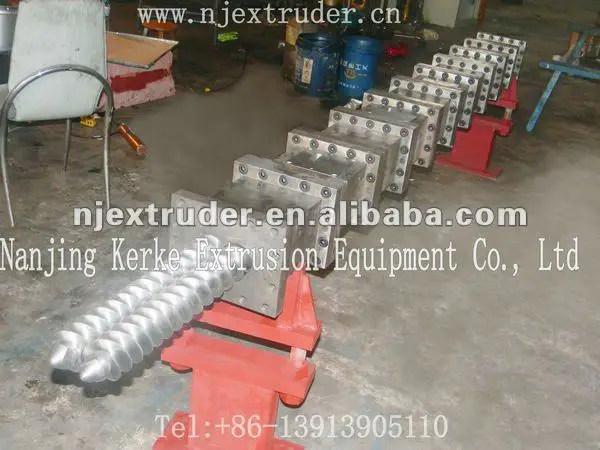

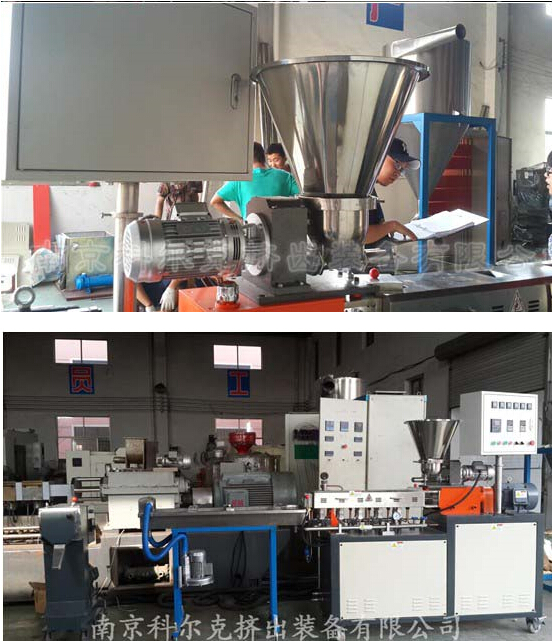

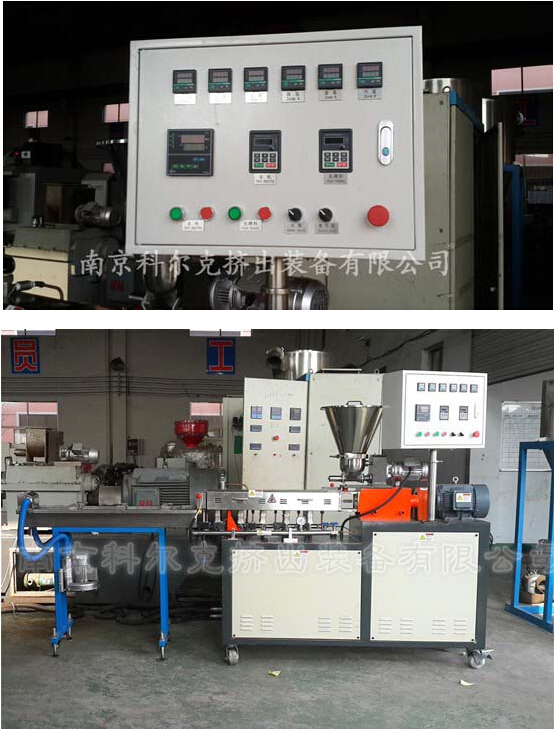

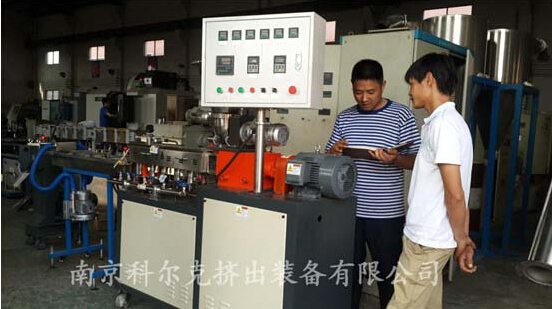

1. Product Pictures
2. Detailed Description of plastic granulating product making machinery
1)Application
a Masterbatch
b Plastics modification
c Fiber glass reinforcement
d Cable compounds
e Alloy plastics
f Powder coating and toners, etc
2)Reference Values
| KTE series twin-screw extruder | |
| Mixing modification | PE,PP,PS+SBS,PA+EPDM,PP+NBR,NVA+silicon rubber,etc |
| PE,PA,PC,CPE+ABS(ALLOY),ABS+TPU,PBT+PET,PE+PP,etc | |
| Filling modification | PE,PP,EVA,etc+Calcium carbonate,talcum power, titanic powder, |
ABS,PC,PS,etc+aluminum hydroxide,magnesium hydroxide, antimony oxide | |
| PP,PA,ABS+ferrous powder,sulphuric powder,ceramic powder | |
| Functional masterbatch | PP,PA,ABS,PBT,etc+burning agent and other auxiliary agents: combustion-supporting machine pellets |
| PP,PE,PS etc+starch:de-composing machine pellets | |
PE+fog-preventing dipper,stabilizer: dual-prevention machine pellets | |
| PE,EVA,ABS+carbon black:black machine pellets | |
| Colored masterbatch | PE,PP,ABS,AS,PA,EVA,PET+pigment and auxiliary |
glass fibers/ carbon fibers reinforcement | PP,PBT,ABS,AS,PA,PC,POM,PPS,PET,etc+long fibers, small fibers,carbon fibers,crystals and so on |
| Various cables | HDPE,LDPF,LLDPE,MDPE,EVA,PVCetc+Insulating cables, coatings,PE peroxide,silicon alkyl crossing cables |
| Special materials | EVA heat-melting glue,polyurethane,fluorin rubber,fluorin plastics, PP cigarette filtering material and TPR sole material |
| Reaction extruding | Polyamide condensate,polyamide melting polymerization, polyamide polyethrne-adding,polycarbonate condensate,etc |
| Exhausting and Volatilization | Polystyrene oxide,high-absorbing resin,chlorine sulphur polyethylene |
| Powder paint | Polyester,ring oxide,lactide,polyurethane,acrylate |
3 )Technical data
| Model | D (mm) | L/D | N (r/min) | P (KW) | Q (kg/h) | |
| KTE-16A | 15.6 | 28~40 | 600 | 1.1/2.2 | 2~10 | |
| KTE-20A | 21.7 | 28~40 | 600 | 3/4 | 3~15 | |
| KTE-36 | A | 35.6 | 28~52 | 500 | 11/15 | 20~60 |
| B | 35.6 | 28~60 | 500/600 | 18.5/22 | 20~100 | |
| KTE-50 | A | 50.5 | 28~60 | 500 | 45 / 55 / 75 | 80~150 |
| B | 50.5 | 28~60 | 400/500/600 | 45/55/75 | 120~280 | |
| KTE-52B | 51.4 | 28~60 | 400/500/600 | 45/55/75 | 120~280 | |
| KTE-65 | A | 62.4 | 28~60 | 500 / 600 | 55 / 75 / 90 | 150~380 |
| B | 62.4 | 28~60 | 400/500/600 | 90/110 | 200~500 | |
| KTE-75 | A | 71 | 28~60 | 500 / 600 | 90 /110 /132 | 300~550 |
| B | 71 | 28~60 | 400/500/600 | 110/132/160 | 300~800 | |
| KTE-85B | 81 | 28~60 | 400/500/600/ | 160/220/280 | 480~1000 | |
| KTE-95B | 93 | 28~60 | 400 / 500/600 | 250 /280/ 315 | 750~1400 | |
KTE Series Co-rotating Parallel Twin-screw Extruder Features
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function,
the new kneading block design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array,
venting number and location, feeding method, electrical control methods etc. for rational allocation.
3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting, water ring die face hot cutting,
Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.
4. Application: Filling Modification, glass fiber (carbon fiber) enhance various kinds of master batch,
rubber and plastics compounding, plastic alloys, functional master batch, Various kinds of electric cable material,
reactive extrusion. Devolatilization process, powder coating and so on..
Security Protection:
1.coupling can effectively protect the reduction gearbox from extrusion unit overload dangers.
2.water-cooling system and lubrication systems are all real-time online monitoring.
3.drive ead pressure and melt temperature are all equipped with alarm systems.
Our machine types:
1. Co-Rotating Parallel Twin Screw Pelletizing Extruders
2. Single Screw Pelletizing Extruders
3. Die Face Cut (Air Cooling) Pelletizing Extruders
4. Double Stage / Double Degassing Recycling Extruders
5. Crushers, Mixers, Storage Tanks, Vibrators, Granulators, Blowers
6. Extruder spare parts

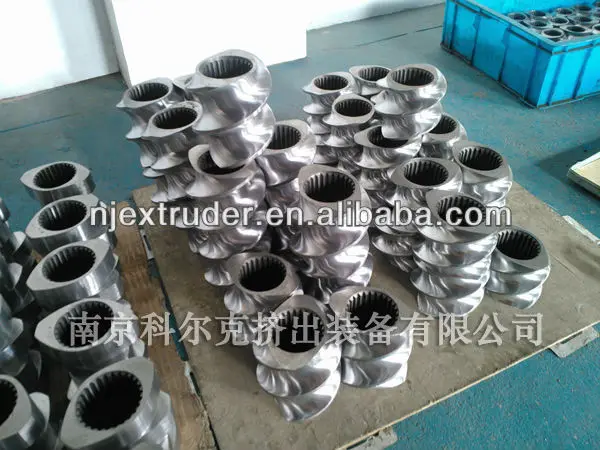

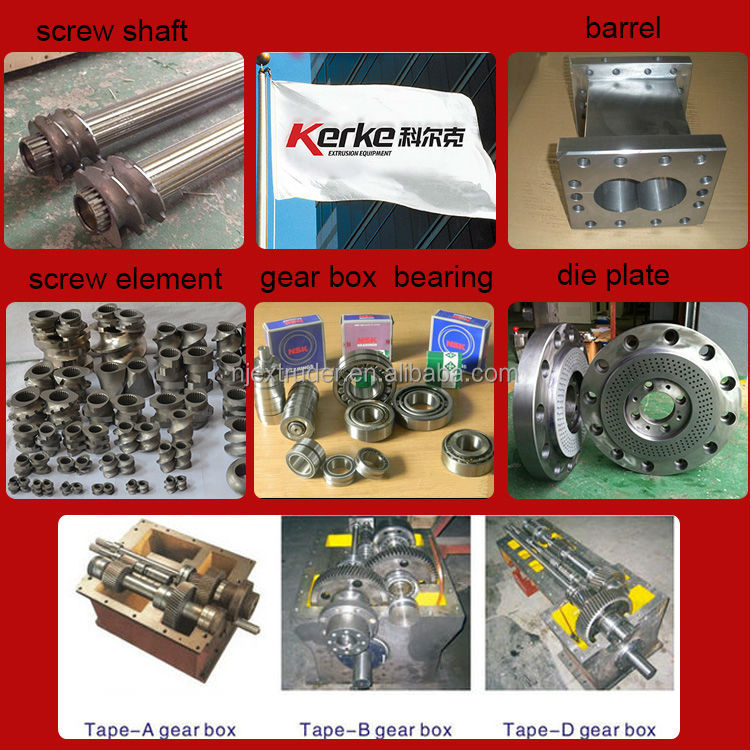

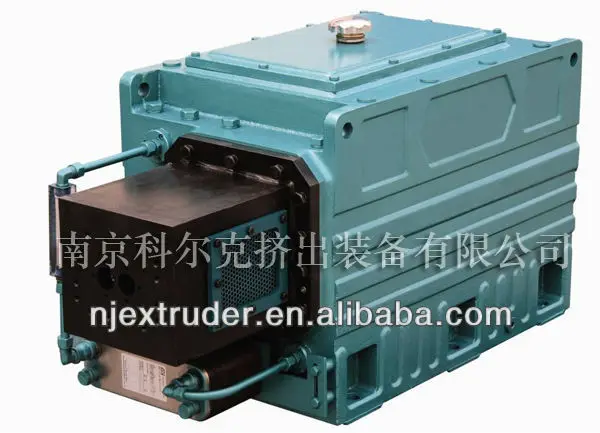

3. More spare parts of plastic granulating product making machinery

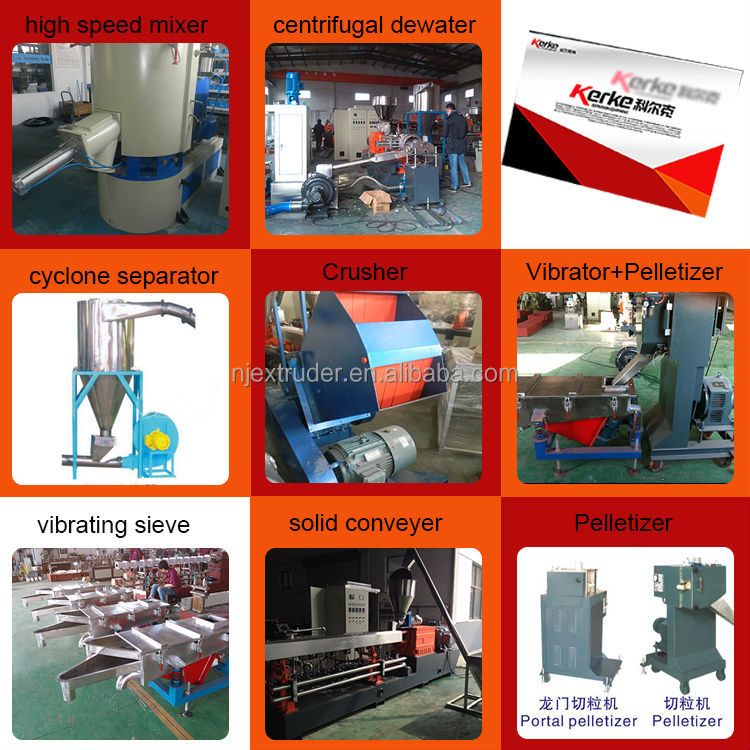

4. More auxiliary equipment of plastic granulating product making machinery
5. The production process of plastic granulating product making machinery
6.Our Service
Presales service:
>introducing in detail features and application of the products to customer
>Selecting economical and practical machine & equipment for customer
>Providing operation data of the related machine & equipment
>Providing means of trial performance for customer
Sales service:
>Recommending engineering conditions required for installation of the machine & equipment
>Communicating in time the manufacturing progress of the machine with user
>Providing assistance in technical conditions, screw combination and barrel disposition needed for product
After-sales service:
>Providing on-the-spot technical assistance in installation, commission and training
>Filling in detail customer’s information
>Providing long-term maintenance service and spare parts
>Giving technical support to customer for developing new product
>Providing free maintenance for a year

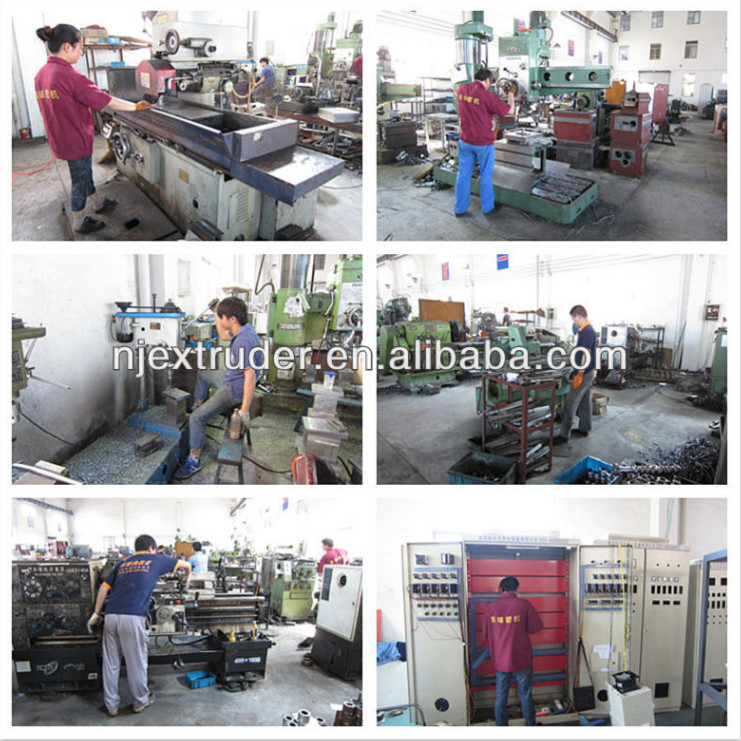

Company show
1. About us
If you do not know how to choose the appropriate granulation methods, our professional technicians will provide you
professional technical support.
