High stability linear coreless


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


linear motor:





1





review






Our Services





 Almost any requirement can be successfully fulfilled


 Satisfactory after-sales service


 Product range





custom

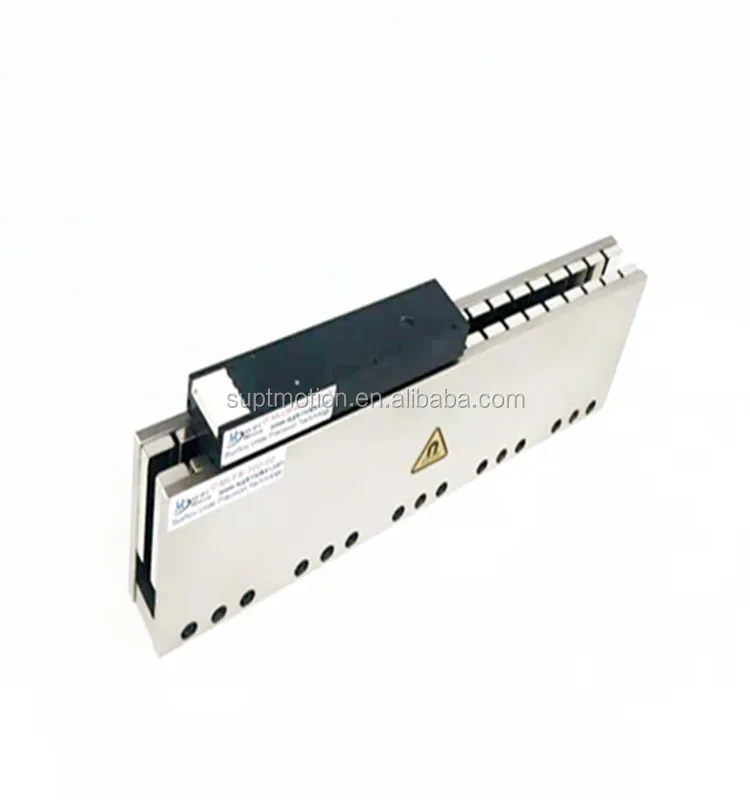

U-type linear motor -B series

Linear motor are untilized in wide variety of products,Markets serviced by SUPT MOTION include:Semiconductor manufacturing equipment, including wafer fabrication and chip packaging equipment ;Flat panel display industry precision test equipment, hard disk manufacturing, manufacturing,printing plate making equipment; Life science, medical equipment, machine vision inspection equipment, a variety of fetching device; Electronic element surface mount, PCB testing equipment, logistics equipment etc.


The main application of the linear motor:


1.semiconductor manufacturing equipment,including wafer fabrication and chip packaging equipment,etc.


2.The flat panel display(FPD)industry,precision test equipment/hard disk manufacturing/connector manufacturing/printing plate-making equipment,etc.


3.Life sciences,medical devices,machine vision inspection equipment,all kinds of devices to take place.


4.Electronic components SMT,PCB testing equipment.


5.Logistics equipment devices.






















































































































B Series--MLCB(Dynamic) MLFB(Stator)
Model/ParMLCB-0040-075-00MLCB-0080-135-00MLCB-0145-255-00
Peak force(Fp)N120240435
Peak current(lp)Amps4.94.84.45
Continuous force(Fc)N4080145
Continuous current(lc)Amps1.651.61.48
Actuator constants(DC motor conversion/3p)(Ka)N/W8.412.116.3
Constant Thrust(L-L)(Kf)N/Amps24.649.597.5
Back EMF constant(L-L)(Kb)V/m/sec14.228.656.3
Electrical constant(Te)ms0.30.30.3
Resistance(L-L)(R)@25℃Ω5.611.223.4
Inductance(L-L)(l)mh1.83.787.5
Heat transfer coefficient(Rth)℃/W*3.2*1.86**0.95
Coil maximum temperature(Tmax)120120120
Magnet Pole pitch(2T)mm303030
Mover weight Kg0.280.490.97




MLCA




Packaging & Shipping


 Main port:Shanghai/Shenzhen/Guangzhou or as require.


 Leading time:Normally goods can be ready within in 7days.


 Express company:DHL,TNT,UPS,FEDEX,etc.





packing
