Никелированная латунь/нержавеющая сталь/соединитель SS 12/24 дюйма 10/24 3/16 M5 фитинги охлаждающая туманная

Описание и отзывы

Характеристики

12/24" 10/24" 3/16" M5 Nickel Plated Brass/Stainless steel/SS connector fittings cooling fog mist Nozzle





Informations:

1.Thread Size: 3/16unc,10/24unc,12/24unc, 10/32unf, 6mm, 8mm.

2.SS orifice Size: 0.1mm ,0.2m,0.3mm ,0.4mm ,0.5mm and larger.

3.Water Drop Size: 15 micron---70 micron.

4.With Anti-drop Device inside Nozzle.

5.High working pressure: up to 1300psi (80bar)

6. Without airs supplementary, system device is simple.

7. Energy and water saving, low cost and good effects.
8. Nozzle tip uses wear-resistant materials, and service life is 2.5 times of similar nozzle.







Product name :	Mist/fog nozzle
Meterial :	Brass
Spray pattern:	Cone fog spraying
Application :	Mist cooling/humidifying
Thread size:	3/16unc,10/24unc,12/24unc, 10/32unf, 6mm, 8mm
Orifice size:	0.1m, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm...
Spray angle:	65-90 degree
Installation:	Quick Release
Working pressure:	Could be high pressure or low pressure

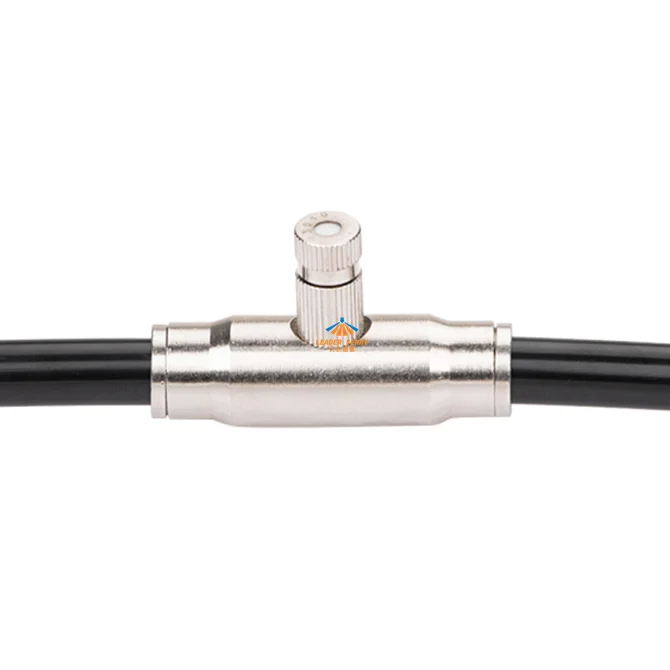

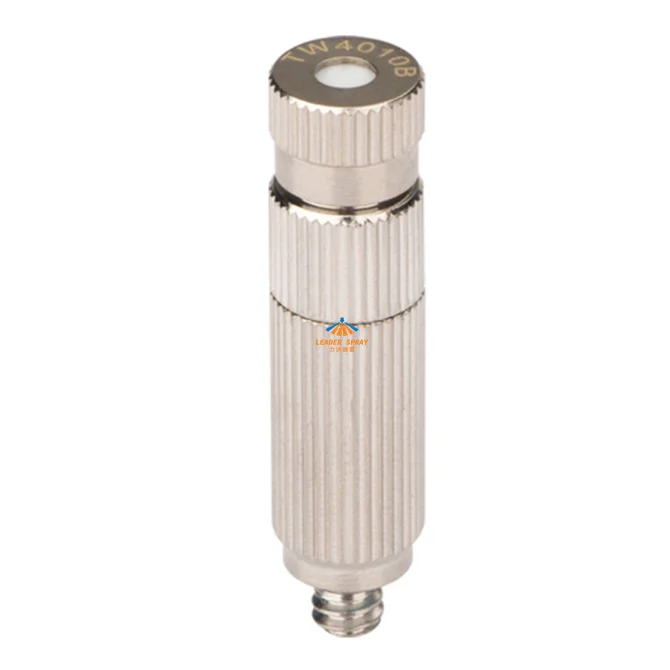

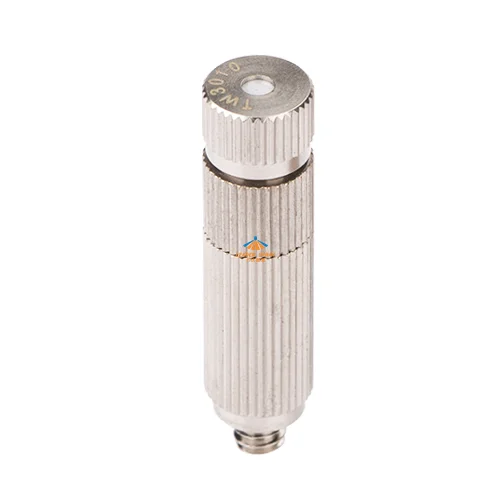

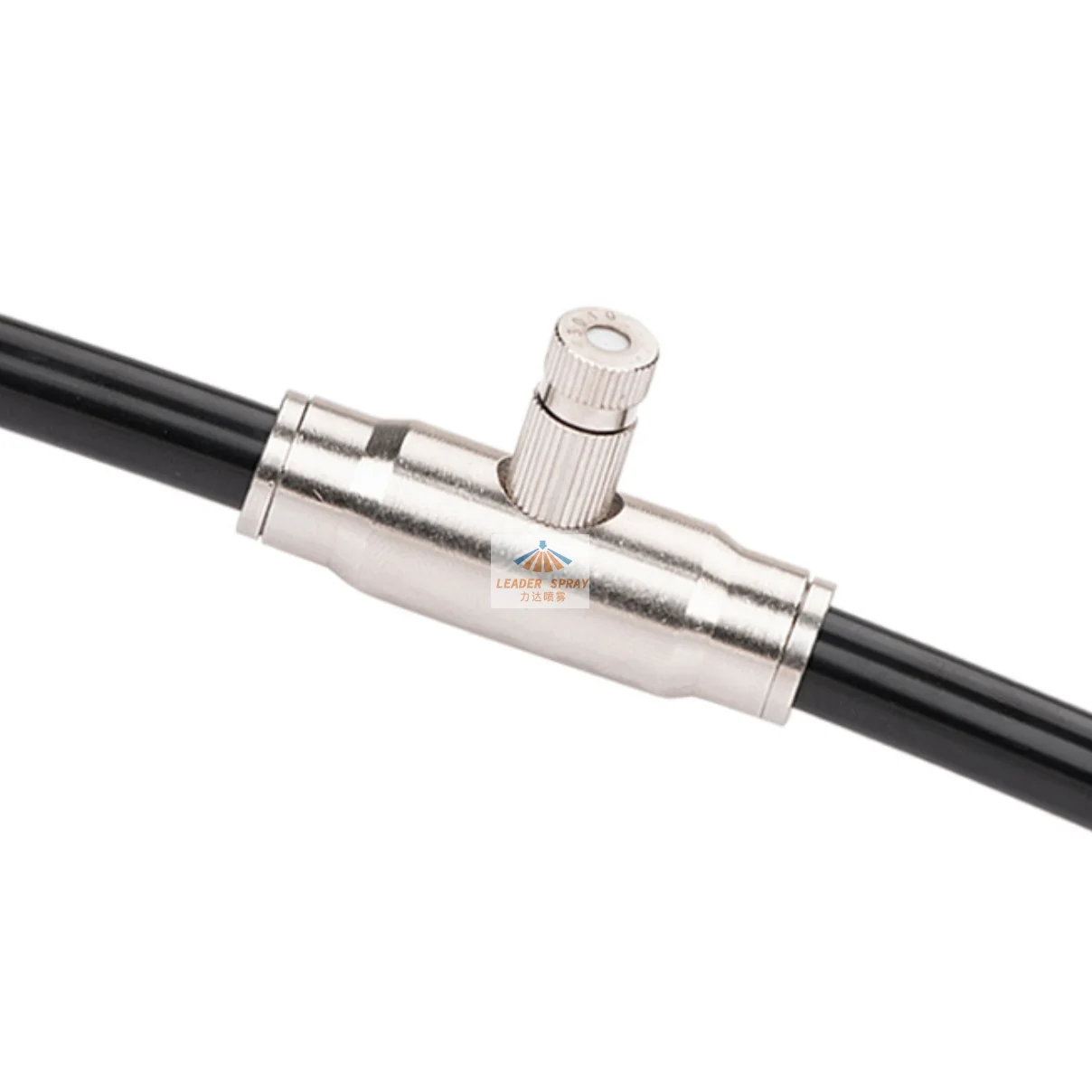

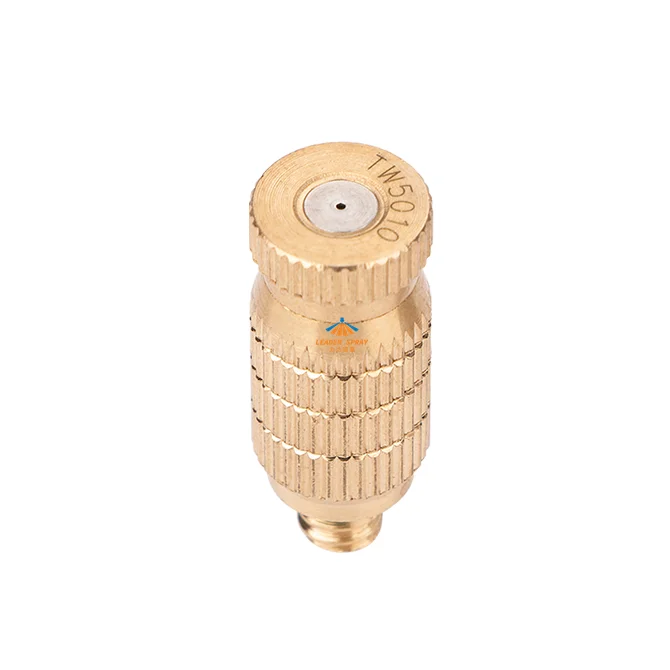

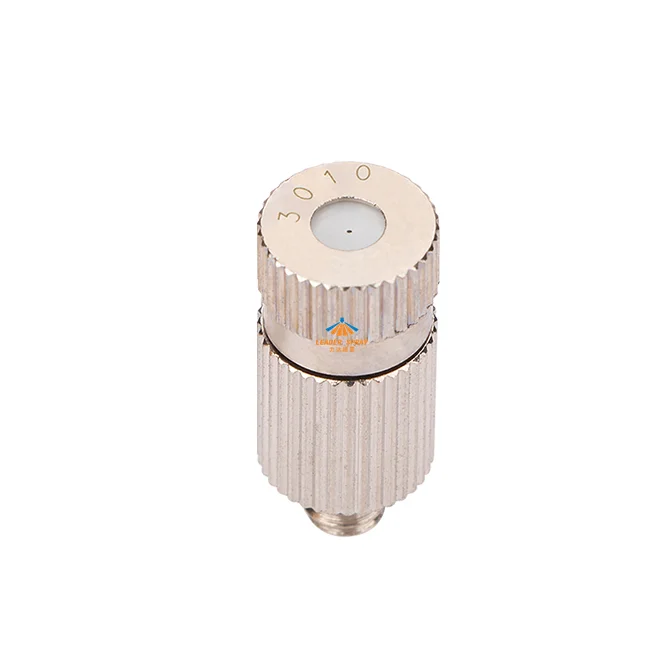

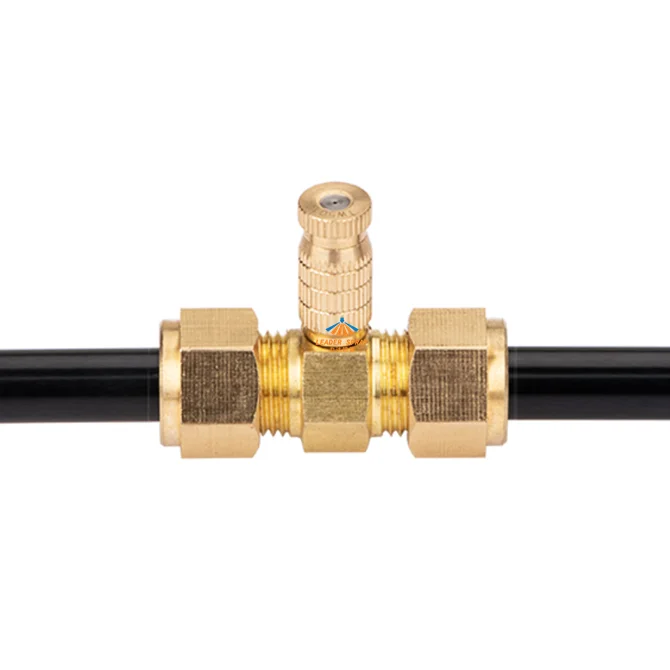

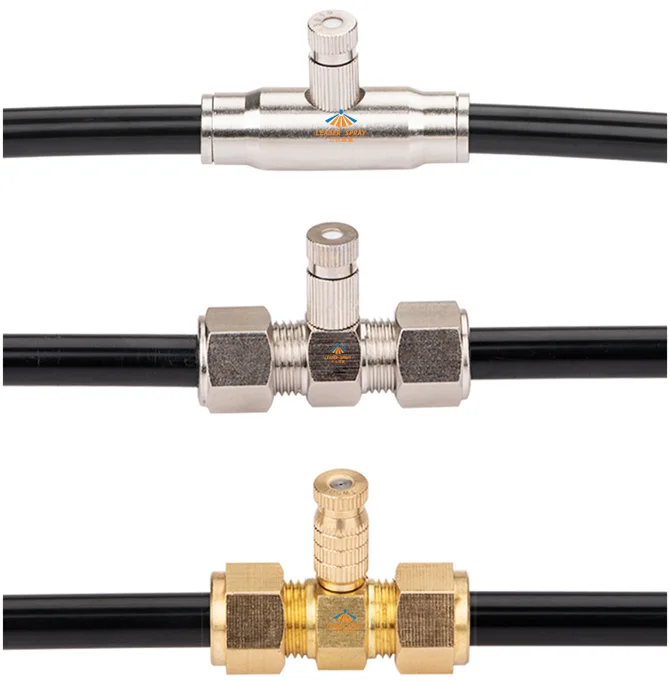

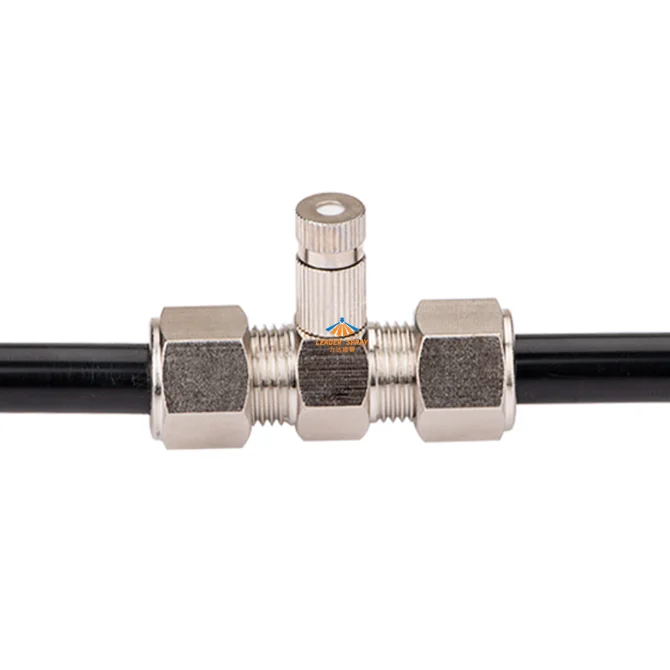

Our fog nozzles products show:



The packaging process:





Applications:

1.Wetting & Rust removal;

2.Humidify for space;

3.Chemical agent spraying;

4.Liquid coating;

5.Humidify for tabacco leaf;

6.Pill coating;

7.Evaporative cooling for flue gas;

8.Disinfection & sterilization;

9.Parts cooling;

10.Fruit wax injection;

11.Ceramic tile glazing;

12.Humidify for factory;

13.Salt fog test;

14.Artificial fog;
