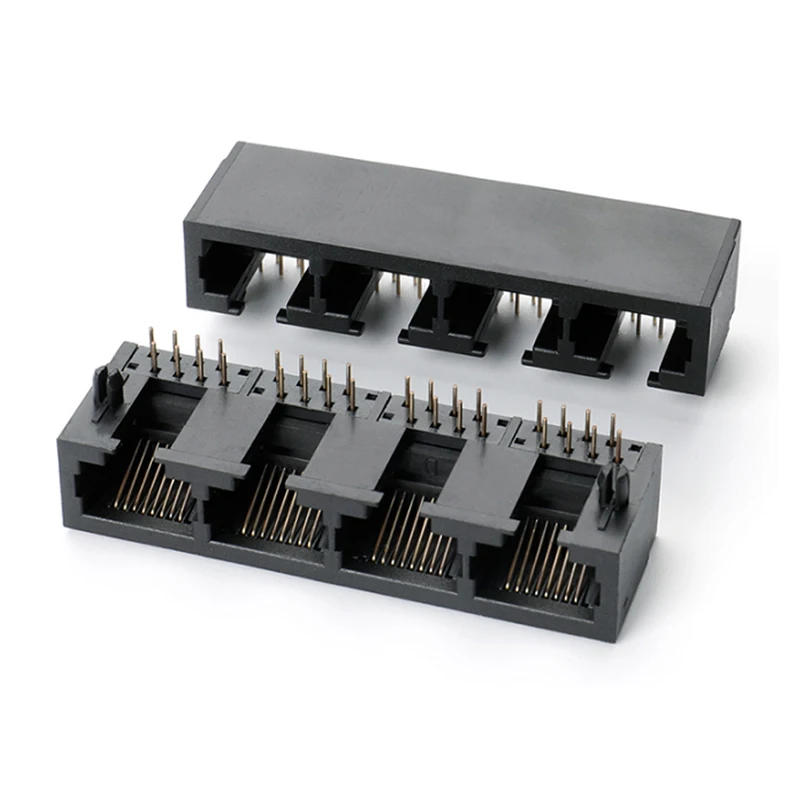

1x4 10P8C rj45 разъем Женский Разъем pcb
1x4 10P8C rj45 разъем Женский Разъем pcb
1x4 10P8C rj45 разъем Женский Разъем pcb
1x4 10P8C rj45 разъем Женский Разъем pcb
1x4 10P8C rj45 разъем Женский Разъем pcb
1x4 10P8C rj45 разъем Женский Разъем pcb
1x4 10P8C rj45 разъем Женский Разъем pcb

1x4 10P8C rj45 разъем Женский Разъем pcb


Поделиться:

Цена:0,13 $ - 0,20 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Our Certificate




Note: All certificates are authentic and valid. If you need the certificate details, please contact customer service to provide


Specification


Electrical
1.Current Rating
1.5 amps
2.Voltage Rating
125vac
3.Insulation Resistance
500 MΩmin
4.Contact Resistance
30 MΩmax
5.Withstanding Voltage
AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Retention Strength
7.7KG.F min between jack and plug
2.Durability
750 mating cycles min
Material
1.Housing
PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield
0.20~0.25mm thickness brass with tin plated
4.Gold Plating
1u ,3u 6u 15u 30u 50u
5.RoHS peak wave solder
RoHS peak wave solder temperature rating 260℃±5℃
Operating and Storage Temperature
Operating Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK,
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.
