Аморфный тороидальный сердечник на железной основе от золотого поставщика BIDRAGON
- Категории: Магнитные материалы >>>
- Поставщик: Beijing,Double,Dragon,International,Industrial,&,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Iron-based Amorphous Toroidal Core
Company Information
Bidragon Group have angaged in supplying amorphous & nano ribbon and core for many years, and our amorphous & nano core has passed the ISO 9001 certificate, at the same time, our producs has got CE certificate. Until now, our amorphous core and nano core has exported to many countries, including India, Korea, Russia, France, America, etc.

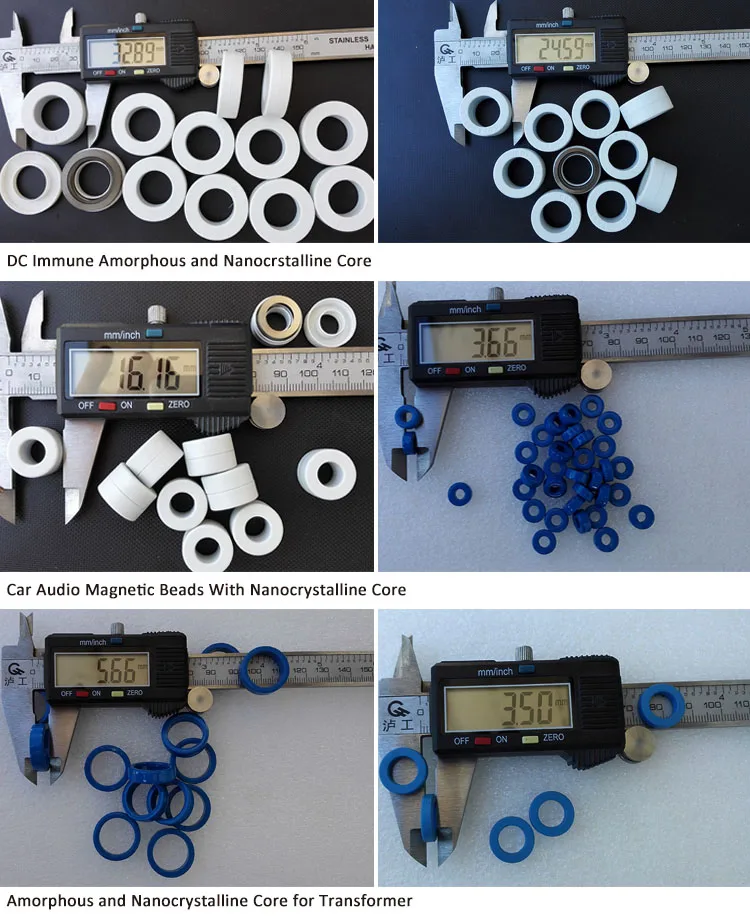

Product Description
Our amorphous cores and nano cores are widely used in current transformer, current sensor, current switch, EMC filter, PFC inductor, car audio,air-conditioning switch, noise suppression, etc.
FollowingParameter Table for Reference:
Core Size(mm) | Outside Size(mm) | Electrical Parameters | |||||
ID | OD | H | ID | OD | H | AL (μH) | AT |
12 | 20 | 5 | 9.7 | 22.5 | 8 | 0.085 | 180 |
12 | 20 | 8 | 9.7 | 22.5 | 11 | 0.12 | 180 |
16 | 26 | 10 | 14.3 | 30.2 | 13.5 | 0.132 | 280 |
20 | 32 | 10 | 17.5 | 34.5 | 13.5 | 0.12 | 350 |
25 | 40 | 12.5 | 23 | 45 | 16 | 0.15 | 370 |
25 | 40 | 15 | 23 | 45,0 | 19 | 0.2 | 370 |
32 | 50 | 15 | 29 | 55 | 18 | 0.126 | 470 |
40 | 64 | 15 | 37.8 | 67.5 | 19 | 0.16 | 600 |
50 | 80 | 20 | 47 | 85,0 | 24 | 0.2 | 730 |
56 | 92 | 25 | 53 | 97 | 29 | 0.25 | 800 |
Customer
Packaging & Shipping
Support Free Sample for Our Toroidal Amorphous & Nano Cores, Welcome to Contact us for Free Sample.
