Highway Construction Hydraulic Pile Driving

Dear Customer:

Welcome to our website and hope our products will

make you satisfied .We think creatively,design bravely,

manufacture precisely and loyalty to our customers.

And we have our own factory.so We can produce the products

according to customer requirements .

Give us a negotiate chance, we will yield you a surprise

                                                                  Yours

                                                                                                           WBQ

Paramater                Highway Contruction Hydraulic Pile Driving

Pile Drilling Parameter                            Highway Contruction Hydraulic Pile Driving
Drilling Diameter	mm	76
Drilling Depth	mm	1800
Chassis
Wheel gauge	mm	1430
Track  gauge	mm	1150
Crawler width	mm	250
Grounding clearance	mm	280
Dozer length	mm	1400
Travel Capacity
Max. Traction	KN	19
(Max/Min) Travel speed	Km/h	4.7/2.6
Climbing capacity	°	20
Feed                                                   Highway Contruction Hydraulic Pile Driving
Length of feeding beam	mm	3400
Stroke	mm	2000
Speed	m/min	2
Rotation
Torque	N.m	1500
Speed	rpm	50
Engine                                               Highway Contruction Hydraulic Pile Driving
Model		YANMAR-3TNV82A
Displacement	L	1.331
Power/Rev.	kw/rpm	16/2200
Fuel tank volume	L	42.5
Turntable Swing	°	360
Dimension(L*W*H)	mm	5500X1400X3000
Machine Weight	kg	3000

Advantages                          Highway Contruction Hydraulic Pile Driving

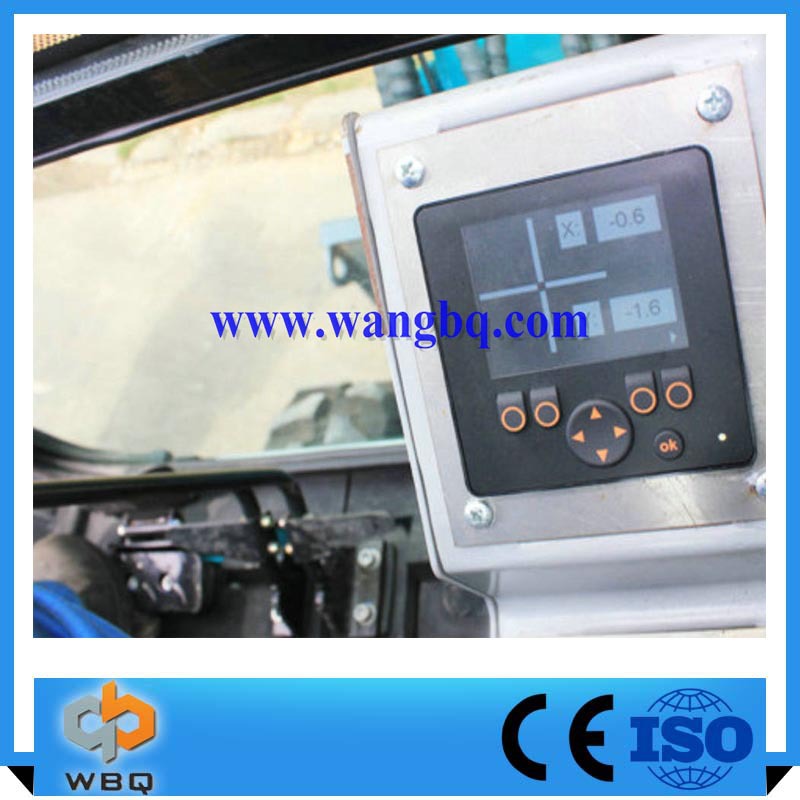

1. Drill frame angle display is fit in the cab, which make operation clearly.

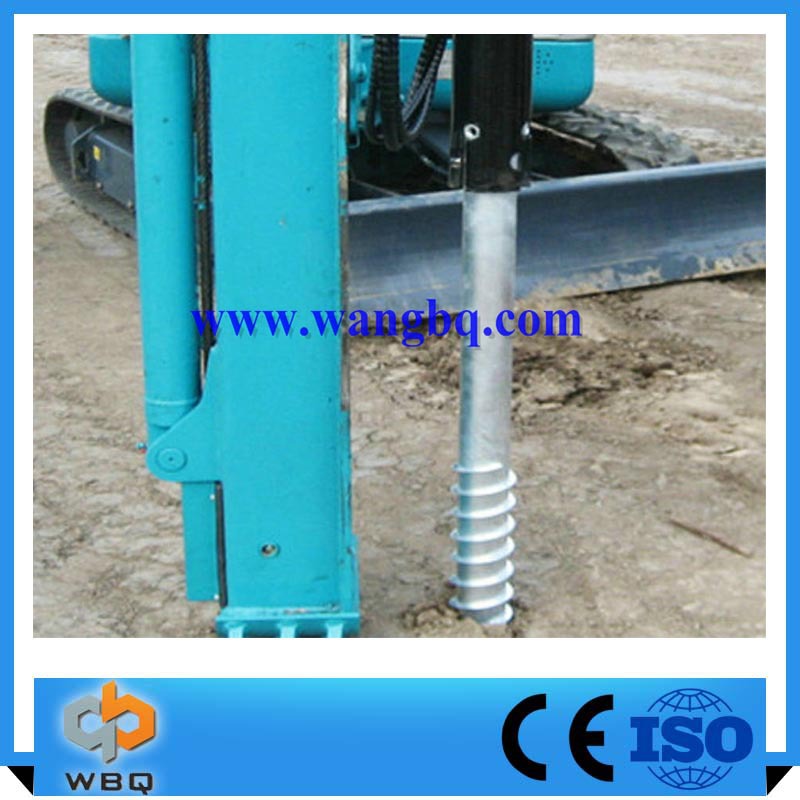

2. The machine is supplying special clamping fixtures for piles, easy assembling and disassembling, high efficiency.

3. The machine is supplying pile guiding device which can ensure the verticality of pile drill.

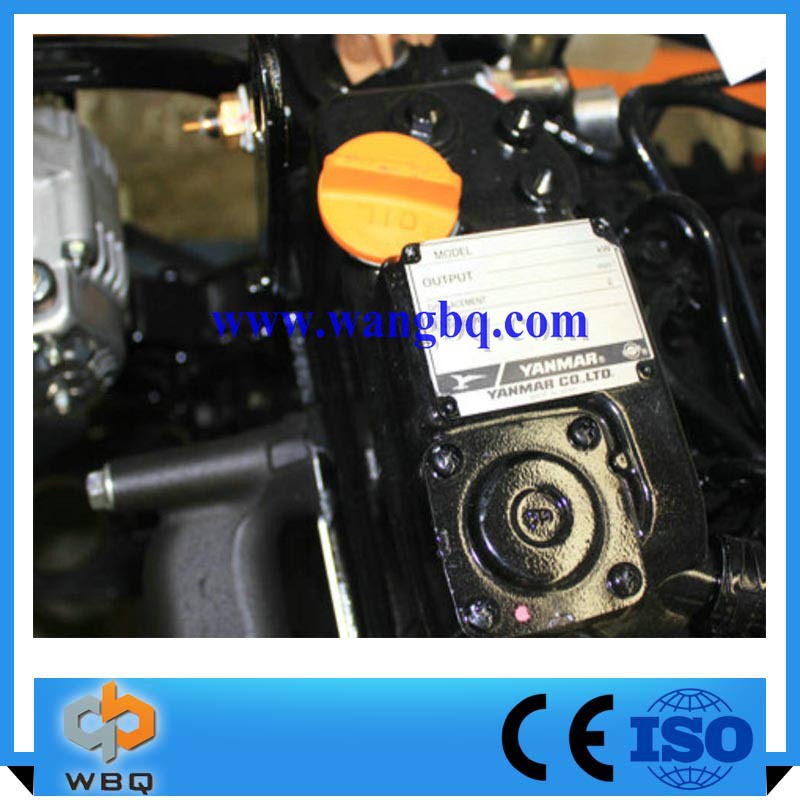

4. Safety and reliable key parts: YANMAR-3TNV82A engine from Japan, hydraulic system main pump, main valve, swing motor, travel motor are all from KYB Japan.

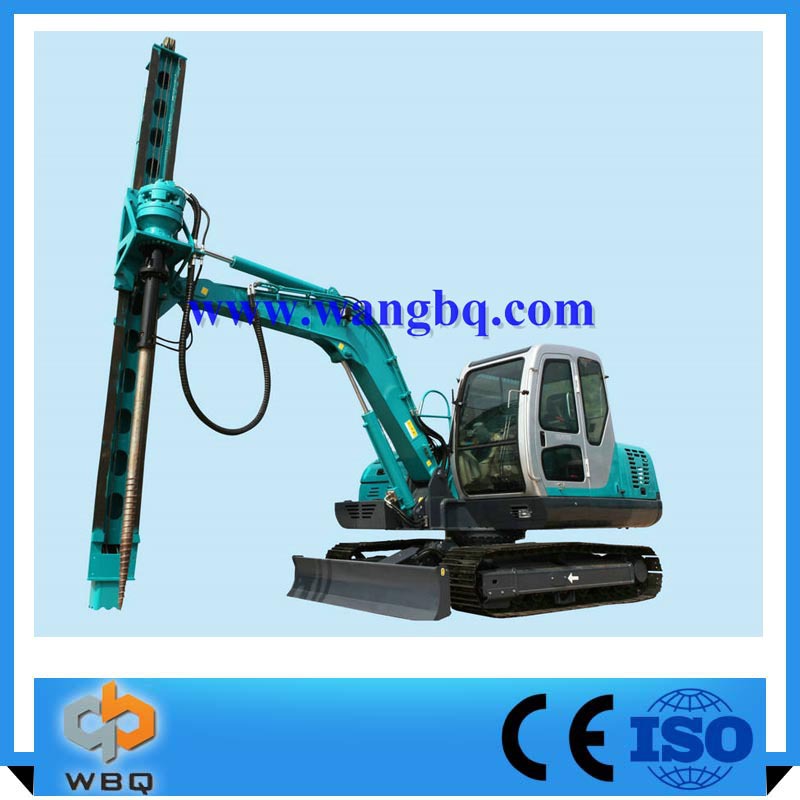

Product   Pictures  Show                  Highway Contruction Hydraulic Pile Driving



The most advanced pile construction equipment

A)SWDL series of spiral pile drill is a new type of spiral pile drilling equipment with independent innovation

B)Broadly applied in pile construction for billboards, fixed umbrella, street lamp, solar panels, fences,flagpoles, traffic signs, isolation net and simple housing building ,etc

Excellent performance

A)The power head rotates with large torque, strong power and stratum adaptability

B)Rotation and propulsion are matched exactly based on operating condition of stratum, which is easy to adjust and ensure high efficiency of drilling pile.

C)The machine is equipped with a pile guide device to ensure verticality and high quality of drilling pile.

D)Based on the control system of excavator, the machine is developed in pilot control, which is responsive, stable and accurate.

Flexibility,convenience and strong adaptability

A)The machine is based on excavator chassis, which assures large driving force and strong adaptability.

B)The platform rotates in a range of 0-360 and assures multi-faceted construction.

C)Disassembly flexible and efficient

Comfortable operation environment

A)The cab with beautiful appearance, inner security and comfort is high-end and practical

B)The cab is equipped with air conditioning, adjustable seat with elastic damping device,anti-smashing and anti-roll protection facilities.

Reliable quality                   Highway Contruction Hydraulic Pile Driving

A)The machine is equipped with international famous engine with low fuel consumpytion,low noise and small vibration

B)The core parts of hydraulic system are purchased in international public bidding, which ensures stable performance of the machine.

C)Special chassis is crested through high-strength steel.

Why  choose  us?                   Highway Contruction Hydraulic Pile Driving

1.Factory:   WBQ can do the best control for the production cost, product's quality and inspection as a factory owner

2.Service:    WBQ can do the best service which credit to 20 year's full export experience and top-quality sales team.

3.Profession:   As the biggest and earliest supplier for ground screw foundation and mounting system in China, WBQ has full experience in manufacturing industry.

4.Quality:   WBQ products follow up Krinner's production standard, the products enjoy a good reputation in Germany and Japan.

5.Technology:   WBQ can offer customer the best design proposal with the supports from top-quality engineers and R&D teams.
