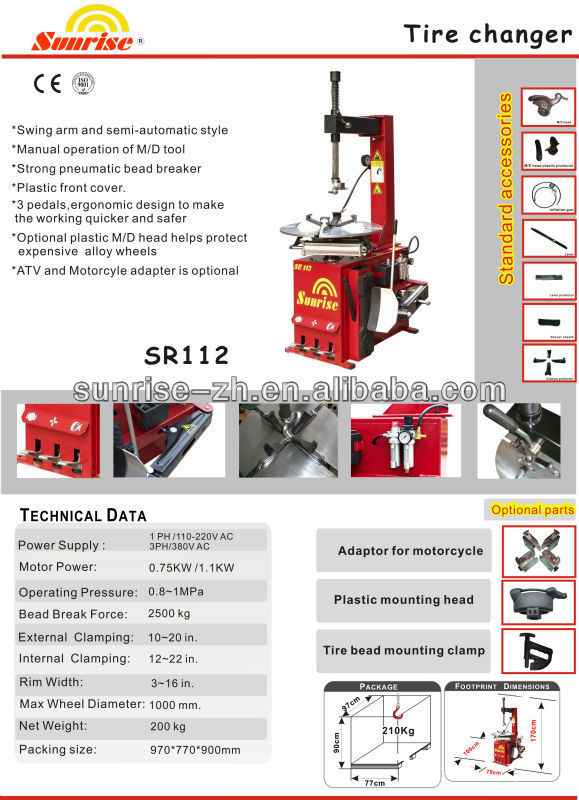

Tire changer Strong pneumatic bead breaker SR112:





Product description



The SR-112 is a space saving swing-arm tire changer requiring less floor

space than tiltback designs featuring a proprietary bead press mounting

system with multiple pressing arms and a quick-change tool holder.

Powerful bead rollers, a quick-change lower disc roller and centering

cone aids in clamping, lubricating, demounting, mounting and inflation

of difficult tire and wheel combinations. The dualcylinder tabletop clamping

system features adjustable wheel clamps that can accommodate wheels

10” up to 33” and a geometric table design allows unhindered inspection of

the bottom bead. A powerful 110V / 220V high-torque drive motor operates

at a controlled speed minimizing damage to wheels and tire beads when

servicing tough combinations.





Features:



1.Swing arm and semi-automatic style

2.Manual operation of mounting/demounting tool

3.Strong pneumatic bead breaker

4.ATV and Motorcy adapter is optional to handle tire from 6-26 tire

5.M/D Head with interchangeable plastic parts to protect rims



Technical Specification:



Motor power	0.75-1.1KW
Power supply	110V/220V1Ph 220V/380V3Ph
Wheel diameter	960mm
Wheel width	3"-15" (76-410mm)
Outside clamping	10"-20"
Inside clamping	12"-22"
Air supply	0.8~1MPa
Bead breaker force	2500Kg
Noise level	<70dB
Package size(mm)	970×770×900
Weight	200/210kg

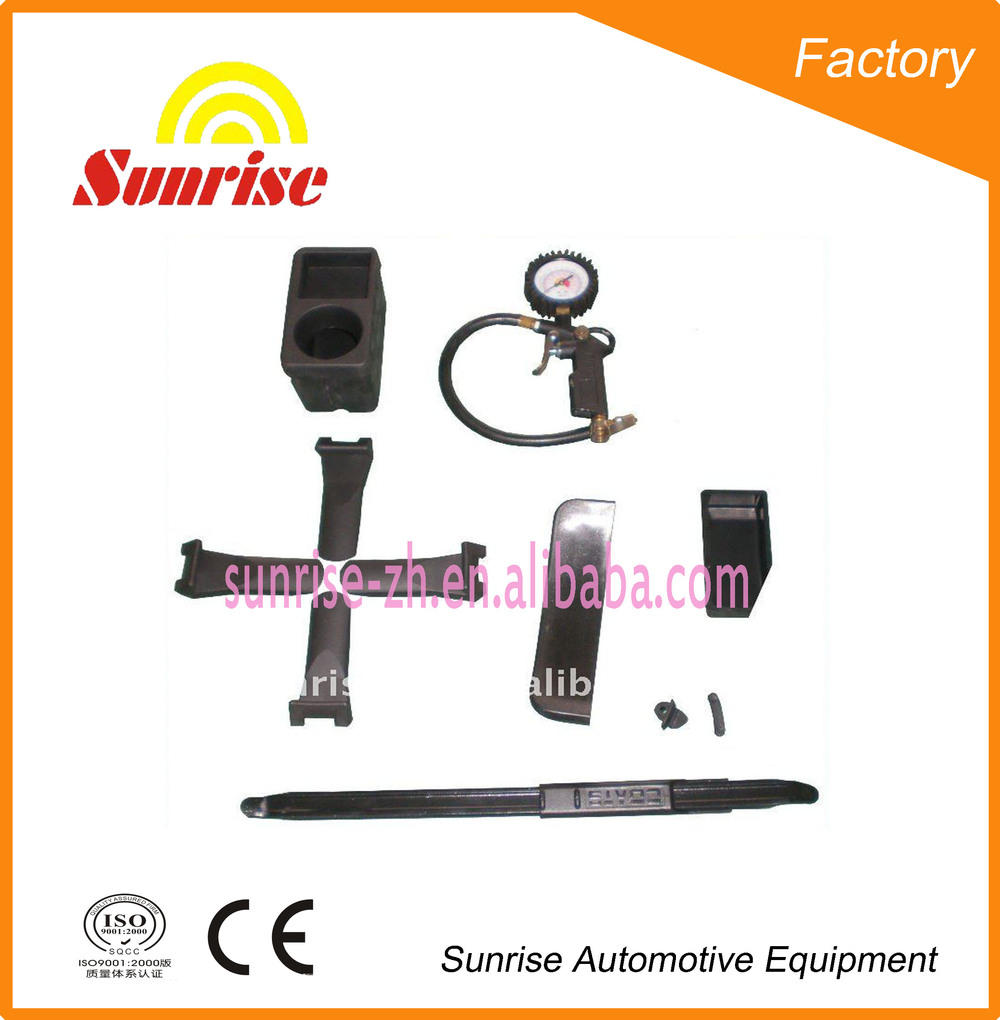

Standard accessories

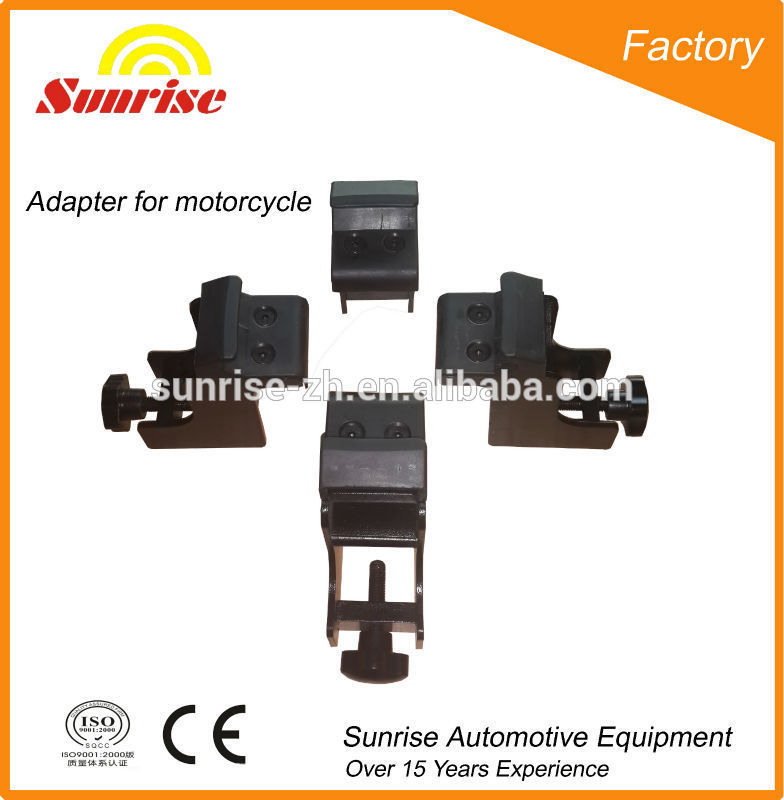

Motorcycle adaptor

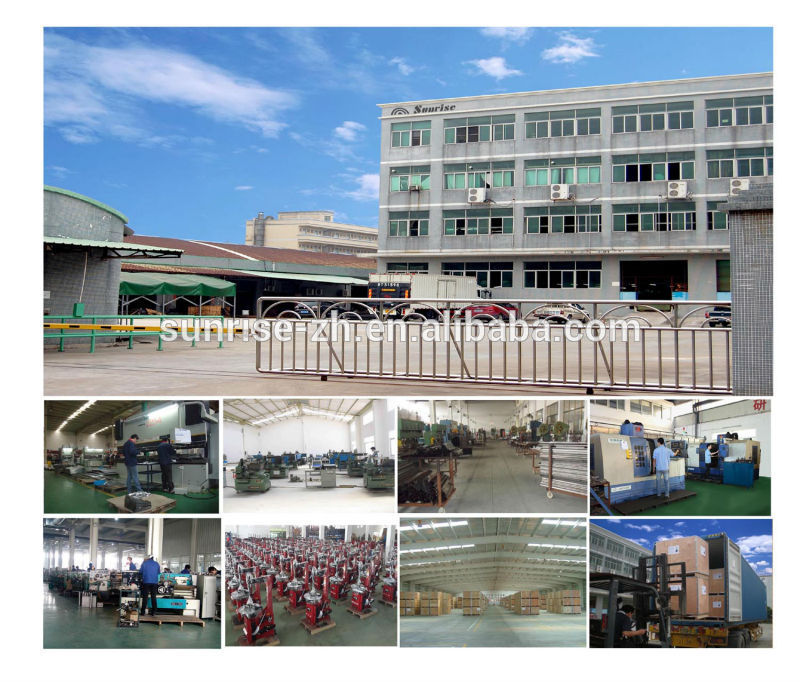

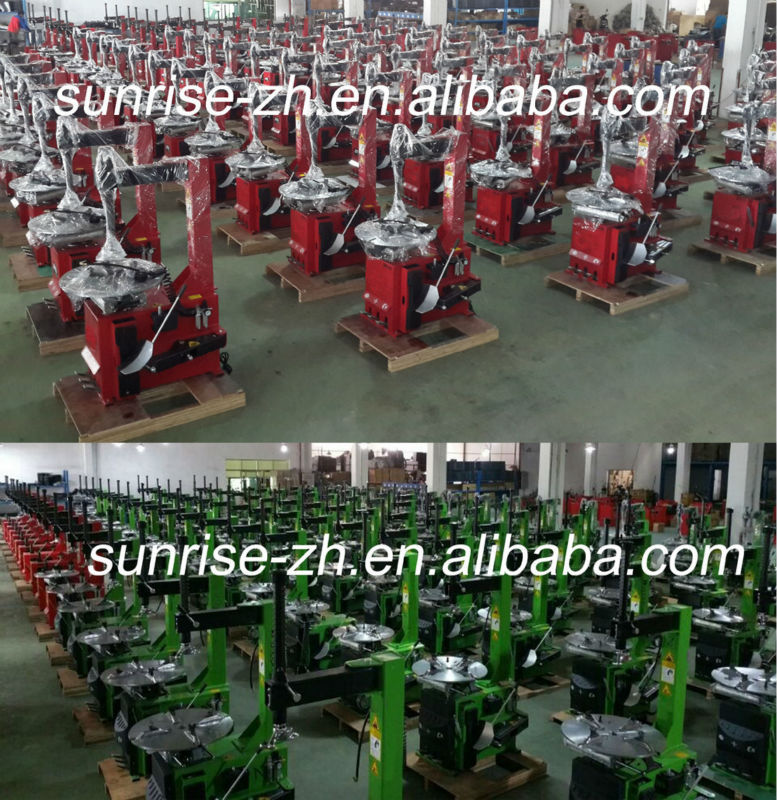

Our workshop:



Warranty
We aim to provide the best parts warranty for our customers.
We offer 12 months parts warranty and require photographic proof or the item to be sent back to our workshop for assessment and review.

Our warranty does not cover the followings :
1.Intentional Misuse
2.Not following maintenances chedules and accidents out of the human control
3.Freight is at the buyers expense
4.All warranty claims will be attended promptly and in a professional manner

Delivery Term
Usually we send the shipments in FOB term.However,the terms of CIF and C&F are acceptable which depend of clients.

Delivery Time
Usually it takes about 20-30days after we received your down payment.However,it would depend on our production line schedule(the timing clients place order)and the complication of the item.

Payment Term
By T/T, 30% previous payment and 70% balance payment before shipping or copy of Bill.

Minmum Order Quantity
The sample order, if we have stocks, we will send out the products within 1 week.

Advantage
We have exported our products and service to more than 50 countries./ we have speclized team work for you, you will get our feedback within 12 hours./ Germany and Italian advanced manufacturering technology.
