325mm 15inch LED Backlight KIT adjustable brightness update ccfl to led

input:DC 12V to 30V
output:9.6V
LEDS:57 leds lamps
LED strip size:325mm*4mm*3mm (L*W*H)
the kit include 2 led strip, 1 converter with power wire







Package:
2x LED strip
1x converter
1x connection cable







Other normal size:

385mm for 19" square screen.

418mm for 19" wide screen.

480mm for 22" screen



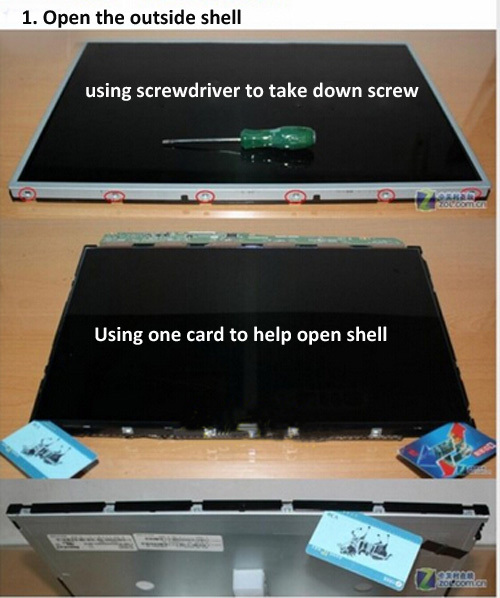

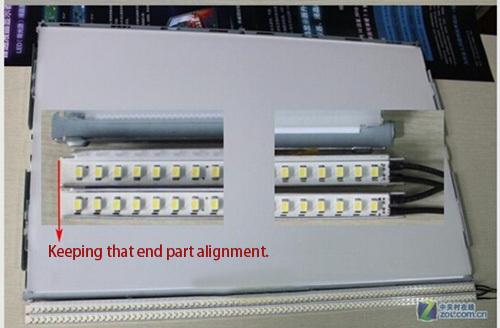

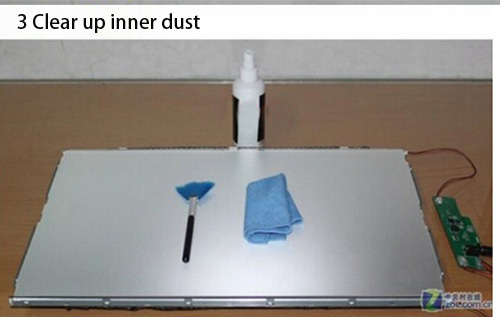

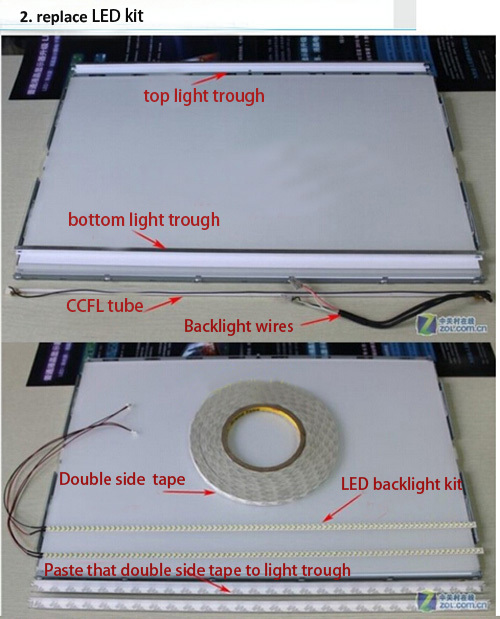

About that replace progess, you can follow one step by one step































Installation:

If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;

If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),

and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting

the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive

electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect

with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,

In the original high-pressure front to take power

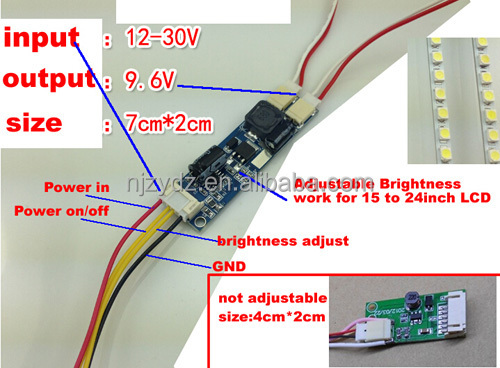

VIN : voltage

ENA: on/off

DIM: ADJ adjust brightness

GND: connecting Ground



Different size for different display screen:













































Now we also have LED proucts to replace this ccfl backlight
