1260C high resistant ceramic fiber insulating tube
Product Description
Ceramic Fiber Special Shape products are made of high purity Alumina fibrous and Alumina powde,
to be formed and fired in special equipment with advanced patent process, can withstand temperature
up to 1800 Celsius.
According to different temperature grades, refractory fiber product may add proper organic and inorganic
additives into polycrystalline mullite fiber, high alumina fiber, zirconic fiber, and aluminum silicate fiber etc. by
use of vacuum moulding methods, to manufacture all kinds of products with different temperature grades:
1000 degree, 1260 degree, 1400 degree, 1500 degree, 1600 degree, 1700 degree and 1800 degree. Its
varieties include two classes: fiber plate and fiber special-shaped product.
Physical Character of 1260C high resistant ceramic fiber insulating tube:
Density(Kg/m3) | 300-600 | |
Strength to resist bending(MPa,25C) | 0.72 | |
Linear shrinkage rate % (1600Cx8hrs) | 0.11 | |
Expansion rate at %(600C) | 0.28 | |
Average modulus of linear expansion (x10-6/K) | 1.77 | |
Thermal conductivity rate | 400C | 0.147 |
600C | 0.186 | |
800C | 0.236 | |
1000C | 0.296 | |
Chemical composition | AL2O3:87% SiO2:13% | |
Note: Data are average results of standard tests which are subject to variation, don't show the
guarantee data of product quality because of fluctuating within certain range.
Types of 1260C high resistant ceramic fiber insulating tube:
Type | JY-1000 | JY -1260 | JY -1400 | JY -1600 | JY -1700 | JY -1800 | |
Classification temperature | 1000 | 1260 | 1400 | 1600 | 1700 | 1800 | |
density (Kg/m3) | 200-600 | 200-600 | 200-600 | 200-600 | 350-600 | 350-600 | |
Line change(CX24hS) | 1.3 (900C) | 1.1 (1100C) | 1.6 (1200C) | <2.0 (1400C) | <2.0 (1500C) | <2.0 (1600C) | |
compressive strength | 0.5 | 0.5 | 0.5 | 0.3 | 0.3 | 0.3 | |
Chemical composition | Al2O3 | 45-47 | ≥55 | ≥35 | / | / | / |
Al2O3+SiO2 | ≥96 | ≥98 | +ZrO2≥98 | ≥98 | ≥98 | ≥98 | |
ZrO2 | / | / | ≥15 | / | / | / | |
Fe2O3 | ≤0.50 | ≤0.30 | ≤0.30 | ≤0.20 | ≤0.15 | ≤0.10 | |
K2O+Na2O | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.20 | ≤0.15 | ≤0.10 | |

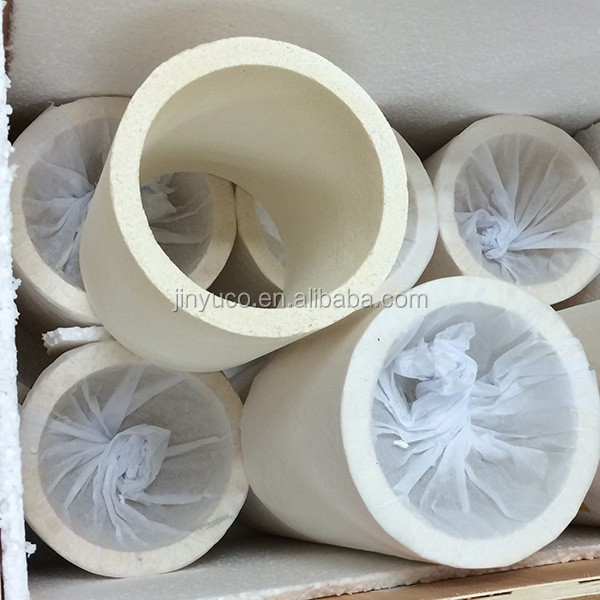

Related pictures of 1260C high resistant ceramic fiber insulating tube:

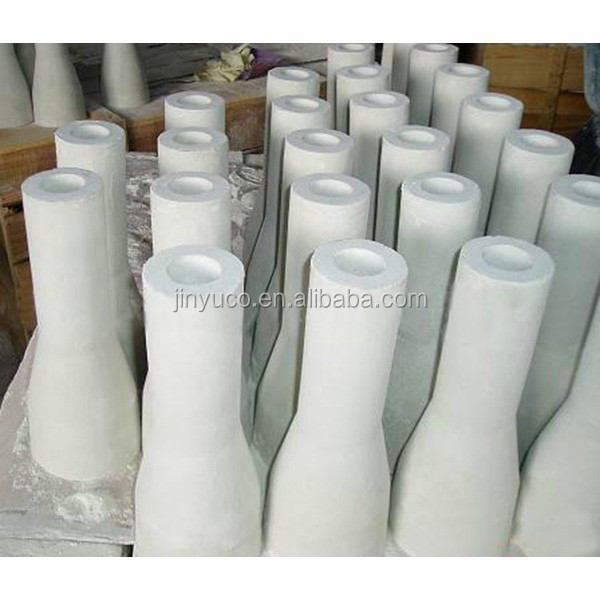

Other shape ceramic fiber products:
Application:
1. Various High Temperature Furnace Lining and backing
2. The heat insulation of back lining of industrial kilns
3. The liner of the hot side of ceramic kiln, mechanical and metallurgical heat furnace, heat treatment furnace
and other industrial kilns
4. High-temperature fire stopping and muffle
5. Heat insulation materials such as kiln car, kiln door, and expansion gap, etc.
6. Glass kiln heat insulation.
Packaging & Shipping
In standard export wooden case, carton box or according to your requirements.
Our Services
As a professional exporter, our target is to serve worldwide clients with high-quality products, great reliability,
devoted responsibility, professional services and honorable credibility to meet customers' requirements in all
aspects. Offering skillful after-sale-service, specialists are available for all customers at 7*24 hours every
week.
As for payment, except for (L/C, TT etc), our company also accepts all kinds of emerging payment terms (like
Western Union, MoneyGram etc) to provide convenience for you.
If you have any questions, please kindly sent inquiry to us.
FAQ
1.Why choose us?
Our company is a direct exporter and agent of many manufacturers,so there are no intermediary costs
involved.
2.What about products?
Company has always proved the 100% quality products it provides with genuine intent.
3.How about after sales service and technical assistance?
The company provides after sales service and technical assistance as per the customers requirement and
needs.
4.How about the delivery?
The company provides just-in-time delivery with its streamlined supply chain.
5. Is sample order available? How many payment ways for small orders?
We welcome sample orders to try our quality and propose a long term cooperation. West union,Escrow are
at customers’ easy options.
