Ультратонкая светодиодная панель zigbee 36 Вт 40 42 с регулируемой

Описание и отзывы

Характеристики

zigbee 36w 40w 42w dimmable ultrathin led panel light





* Constant current

* Continuous dimming from 0-100%

* Support 3 remote controls: WiFi-ZigBee, 0-10V dimming and microwave sensor

* Control the panel lights anywhere, using WiFi-Zigbee Technology

* Side Emitting, 9mm thickness , light-weighted (<10kg/sqm)

* High luminous uniformity: > 90%/ square feet

* NO flicker, NO noise, NO UV and IR

* Different dimensions and sizes







Optical Parameters
LED chip: Epistar
LED type: SMD 2835
Material: Aluminum, PMMA, PS
IP Rate: IP44
Beam Angle: 120°

Working Temperature: -20-+55℃
Lifetime: 30000 Hours
Warranty: 3 years



Electrical Parameters
Input Voltage: AC100-240V
Dimmable: YES
LED Driver: 1-channel WiFi-ZigBee
Wireless Frequency: 2.4GH
Power Factor: >0.92





No.	Model	Panel Size	LED	Input Power	CRI	Luminous Flux (±10%)
			QTY			5700-6500K
1	ASLP-SC3636	295×595×10mm	204pcs	36W	>80	3300lm
2	ASLP-SC6636	595×595×10mm	204pcs	36W	>80	3300lm
3	ASLP-SC6640	595×595×10mm	204pcs	40W	>80	3600lm
4	ASLP-SC6236	620×620×10mm	204pcs	36W	>80	3300lm
5	ASLP-SC6240	620×620×10mm	204pcs	40W	>80	3600lm
6	ASLP-SC3140	295×1195×10mm	204pcs	40W	>80	3600lm
7	ASLP-SC3142	295×1195×10mm	204pcs	42W	>80	3750lm
8	ASLP-SC6140	595×1195×10mm	204pcs	40W	>80	3600lm
9	ASLP-SC6142	595×1195×10mm	204pcs	42W	>80	3750lm













LED Panels have become a popular lighting option recently, especially for commercial properties. Amelech’s ZigBee Dimmable LED Panel Light provides a multitude of benefits for working in studio, office, business facility or anywhere in the world. You can control the light anywhere, by your mobile phones, tablets or computers. Also, it supports 0-10V dimming and microwave sensor remote control. With Amelech’s ZigBee Control Bridge, you can turn on/ off the light, adjust brightness for the light. There’s timing feature, delay function and definable modes. Group control and individual control lets you manage up to 65533 lights at once. Our ZigBee dimmable LED panels transforms your living and working space brighter and smarter via ZigBee wireless control. It offers the most economic and smartest energy saving solution.

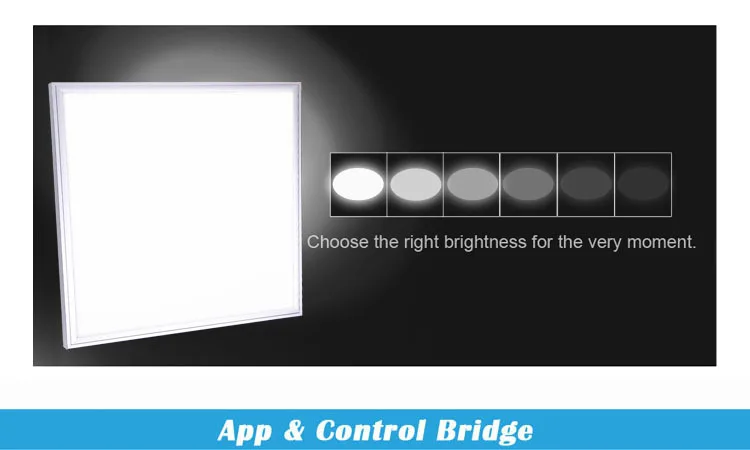

Amelech’s ZigBee LED panel is dimmable, which allows the light to be adjusted to suitable brightness for power saving purposes. By connecting your mobile phone to the light through Amelech’s ZigBee control bridge, you can dim the light from 100 percent to 1 percent, anytime, anywhere. Or you can dim the light locally, if the light is fitted with 0-10V dimmer. For university lighting, you can adjust the brightness to 500lm for classroom, 300lm for library, and 100-150lm for corridor. It’s the simple choice for any location that requires area dimmable illumination and could benefit from lower energy costs.



Our ZigBee dimmable LED panel light is going to change the world in many ways.

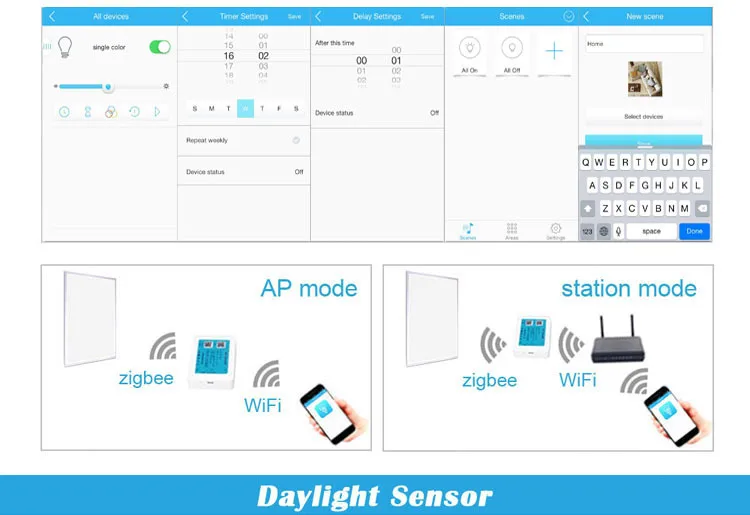

The smart LED panel light sets up in minutes and, with a quick download of the free ‘iLightsIn’ app, the system can be controlled from any iOS or Android device. From the app, you are empowered to turn on and off, dim and brighten, set daylight sensor, program timers, set delays and scheduling functions, all through the convenience of your smart device. Group the lights and give them a name like “area 1”. Control the lights one or all together at a time. It supports control to up to 36655 lights. Pick up the preset mode for reading. Or create and save any scene or mood to suit your purpose.

There are two control modes for the light. One is AP Mode. The App connects to the control bridge directly, which allows local control, 15 meters between the mobile device and the control bridge. The other is Station Mode. The App connect the control bridge to the light through the WiFi router, which makes it workable to control the light home or away.







Specially, daylight sensor is embedded in our control bridge, to provide automatic dimming control of Amelech’s panel light. Based on your specific requirement, it can work with other sensors, such as motion sensor, for multi-sensor control purpose. It provides convenient light control and is engineered for optimum energy savings.
The sensor works by monitoring outdoor daylight conditions and then controlling the panel light to ensure that adequate lighting levels are maintained. There are 3 modes, enhanced mode, opposite mode and maintain mode. Enhanced Mode is used for commercial lighting, such as jewelry shop and luxury store. When outdoor illuminance becomes brighter, the lighting in the room becomes brighter. Opposite Mode and Maintain Mode are both used for places where supplemental lighting is needed, such as school. When outdoor illuminance becomes brighter, the lighting in the room becomes darker. And vice versa. Different from Opposite Mode, Maintain Mode enables the panel light to maintain a minimum light-level (set-point). Besides setting fixed illuminance value, the user can also save any suitable illuminance as wish.











There’s microwave motion sensor control input in the driver of Amelech’s LED panel light. Once rigged with motion sensor, the light can provide automatic dimming control for daylight harvesting applications.

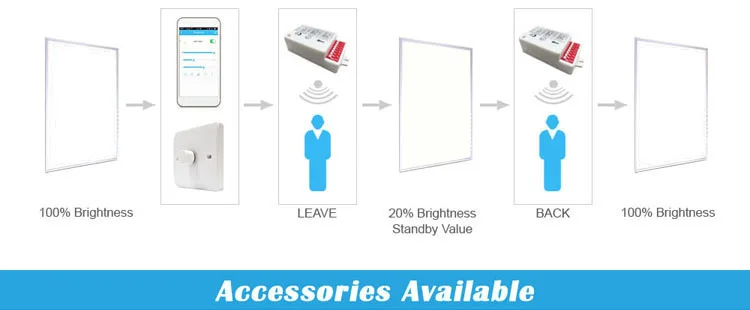

The default brightness of our LED panel is 100%. Through the 0-10V dimmer, App on your device or hand-held dimmer, you can adjust the brightness to a standby value, for example, 20%. When you leave and nobody is detected by the sensor, the light will automatically turn into 20% brightness. When somebody is back, the panel light will operate at full-bright level, 100%.

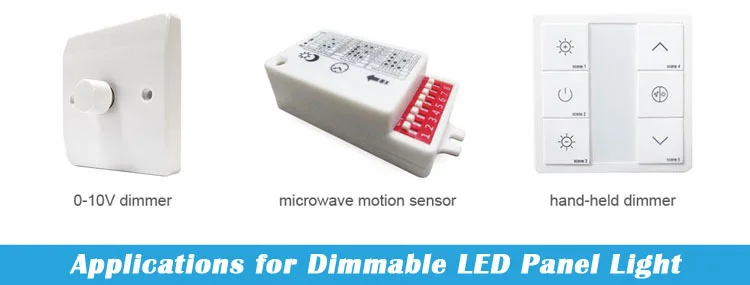

Our light can also be controlled by 0-10V dimmer, microwave motion sensor and hand-held dimmer. They are all optional. For the 0-10 dimmer, the LED driver works for any models at the market. As for the hand-held dimmer and microwave motion sensor, we offer them and make them workable with our control bridge.
