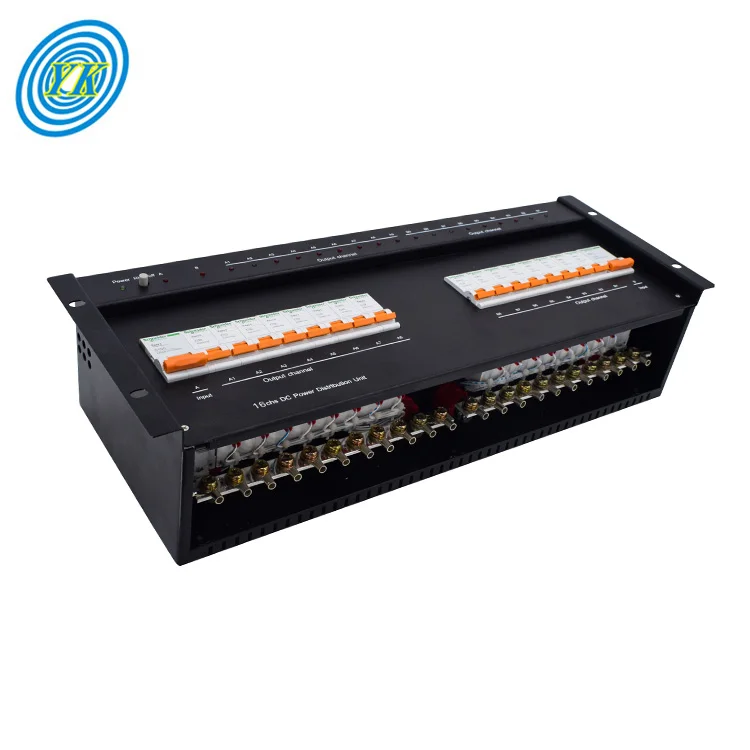

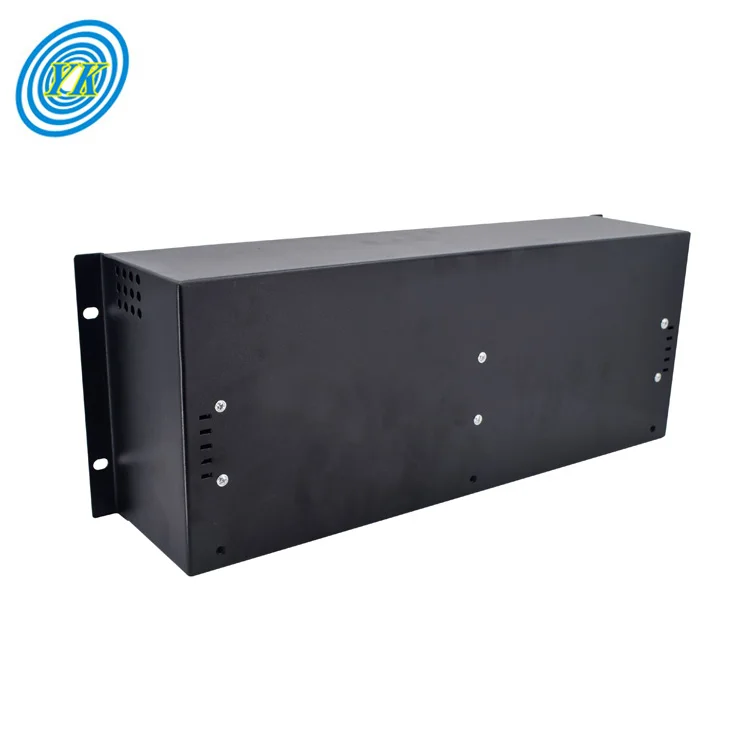

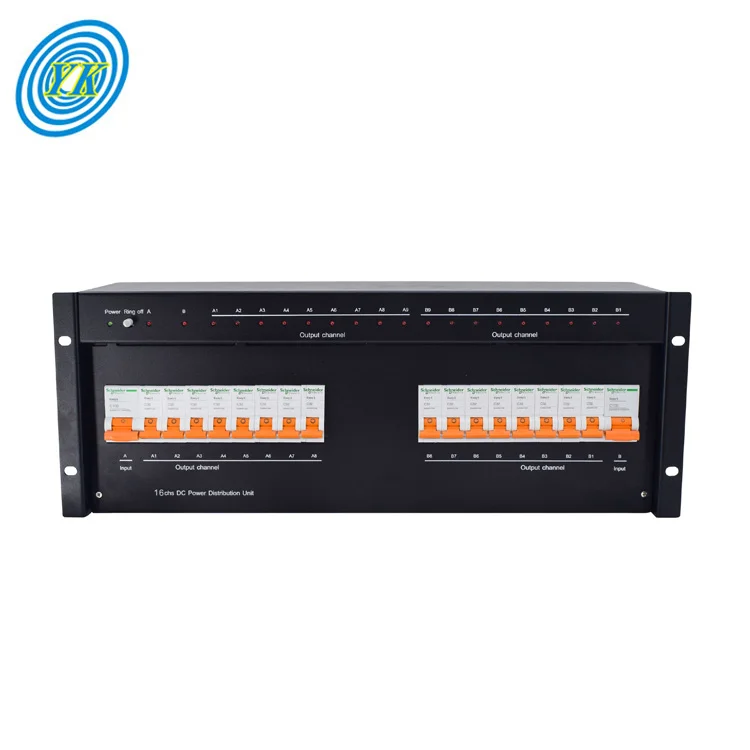

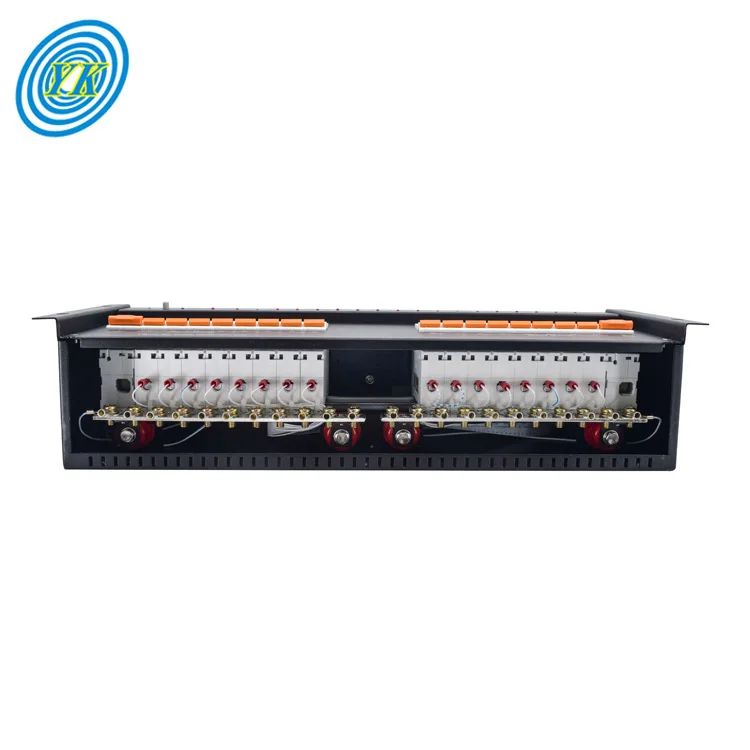

20 каналов в стойку pdu Блок Распределения

Model

YKDPZ-B

Input channels

1 channel / 2 channels for option

Input voltage

-48VDC/24VDC/220VDC/110VDC

 or

-48VAC/24VAC/220VAC/110VAC

For option

Input Current

10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option

Insulation resistance

≥30MΩ

Insulating intensity

Input—housing AC1000V,50Hz,1minute

Output-housing  AC1000V,50Hz,1minute

Output channels

12 channel /16 channel/ 18 channel /20 channel for option

Output voltage

-48VDC/24VDC/220VDC/110VDC

 or

-48VAC/24VAC/220VAC/110VAC

For option

Output Current

10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option

Alarm

Visual-aural alarm signal. When there is any channel is failed,

Red LED ON and buzzer sounds.

With/without alarm function for operation

Working environment

Working temperature :0℃~40℃

Related humility :≤90% (+20±5℃)

atmospheric pressure:70Kpa~106Kpa

Dimension

L*D*H(mm):485 mm *175 mm *85 mm

Weight

5.5Kg

Packing:

510 mm *150 mm *125mm, 6.0kg

DC Distribution Unit can customize different specification

Input

Channel

Voltage (Optional)

Circuit breaker/Air switch

2 channels

-48/24/220/110VDC

or

-48/24/220/110VAC

10A, 16A, 32A, 63A ,100A,125A/800A

Output

Channel

Voltage(Optional)

Circuit breaker/Air switch

Can customize

1-36 channels

-48/24/220/110VDC

or

-48/24/220/110VAC

10A, 16A, 32A, 63A ,100A,125A/800A

Optional

Alarming--- With/without alarming function can be option

Rack Mount--2U-6U can customize

Regards as PDU/DC Distribution Unit, We can customized all kind of PDU according to your request
