  Shot Blasting Cleaning Machine



shot blast cleaning machine

hook shot blasting machine

shot blasting machine price





QR3210 ZD series belt shot blast machine



QR3210 Crawler aotomatic feeding cleaning machine for cleaning Shot Casting and Forging,stamping parts ,such as easy to roll the workpiece and to drop the core parts and the cast and on the surface of stick sand ,embroidered layer and oxide ,and other glitches .The main users of machine tool plant ,the pant spring plant ,heat treatment worksshop ,foundry and stamping workshop



Main Technical Parameters

Productivity	Feeding amount	Maximun weight of single piece	Effective volume	Diameter of end disk	Abrasive flow rate	ventilation capacity	Power consumption	Out line dimention
t/h	kg	kg	m	mm	kg/min	m/h	kw	mm
1.5-2.5	600	30	0.3	1000	250	5000	24.3	3972x2600x4768

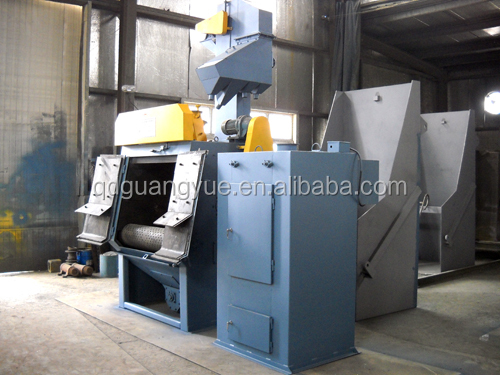

Q32 Tracked Shot Blast Clean -UP Machien



This machine is in keeping with many species ,big medium the batch quantity produce the suface of the work piece in addition to becoming rusty or throwing the pill to enhance .Tidy up the work piece and the hot processing pieces that musts be the mot afraid collision.That machine since can singe machine usage ,can go together with the line usage agine.



Technical parameters

Item		Q326C	QR3210
Productivity	t/h	0.6-1.2	1.5-2.5
Feeding amount	kg	200	600
Maximun weight of single piece	kg	10	30
Effective volume	m3	0.15	0.3
Diameter of end disk	mm	650	1000
Abrasive flow rate	kg/min	100	250
ventilation capacity	m3/h	2200	5000
Power consumption	kw	12.6	24.3
Out line dimention	mm	3681x1650x4200	3972x2600x4768

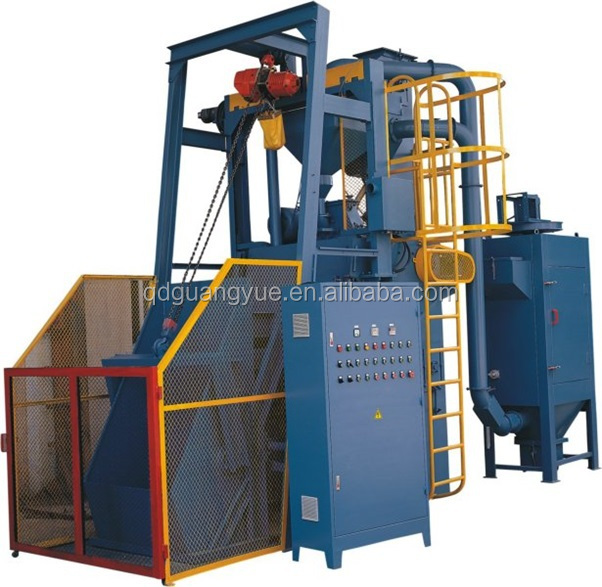

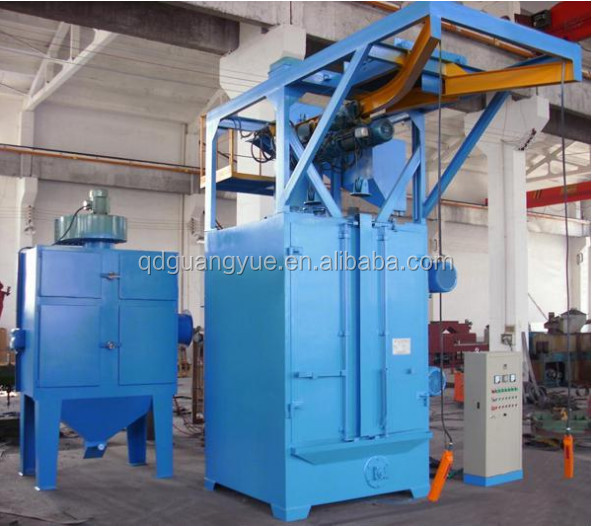

Q37 Hook airless blast cleaning machine



The  hook type throws the pill to tidy up the machine tool to throw the pill to have great capacity,tidying up the efficiency high ,the valid space of the room body is big ,the structure tightly packed ,and adopt without a pit form,use towards tidying up the shap structure of the work piece without the special request ,can a machine manufacturing industry and the foundry industries extensively.



Our company can tidy un the work piece to request according to the customer to design the manufacturing for the customer.



Technique parameter



Item	Unit	Q376	Q378	Q3710	QD3710	Q3720	Q3730	Q3750	Q3780
Maximum weight of cleaning	Kg	500	1000	1000	1000	2000	3000	5000	8000
Abrasive flow rate	Kg/min	2*120	2*200	2*250	2*250	3*250	3*250	4*250	4*250
Ventilation capacity	m3/h	5000	8000	9000	9000	15000	15000	18000	20000
Lifting amount of elevating conveyor	T/H	15	22	30	30	45	45	60	60
Separating amount of separator	T/H	15	22	30	30	45	45	60	60
Max overall dimensions of suspender	mm	Ø600	Ø800	Ø900	Ø900	Ø1400	Ø1600	Ø1800	Ø2000
		*1100	*1500	*1600	*1600	*2300	*2300	*2500	*3000
Power(excluding dedusting)	KW	19	32.5	36.55	39.65	61.27	64.4	78.4	81.5





Our Services:

1.) Pre-sales Service:

Freely provide project designing, Professional suggestions, Quickly Response!

2.) Medium-sales Service:

Accompany you to complete the purchasing, shipping, installing and training

3. )After-sales service:

2years quality guarantee, Life-long Maintenance



Our certification :

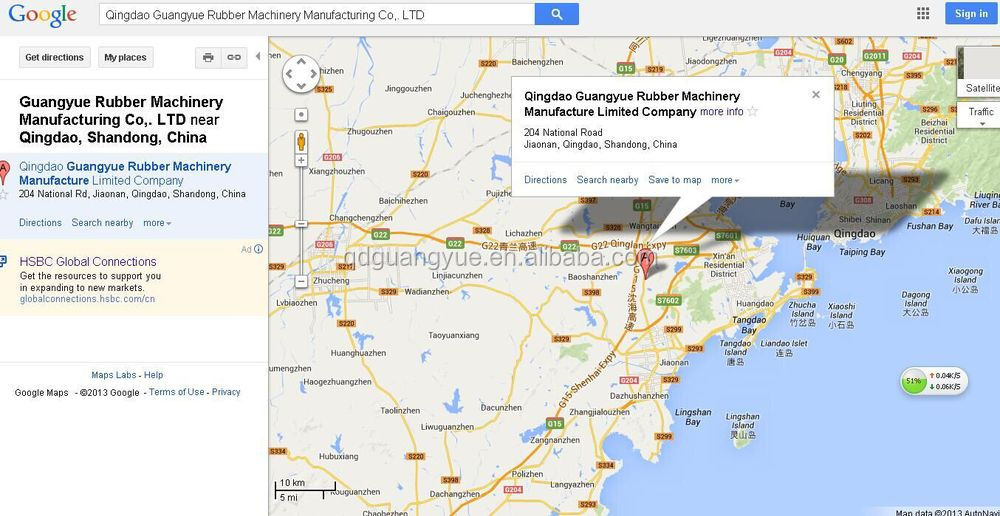

 Welcome to visit OUR FACTORY, we can show you the workshop and machine in our client factory
