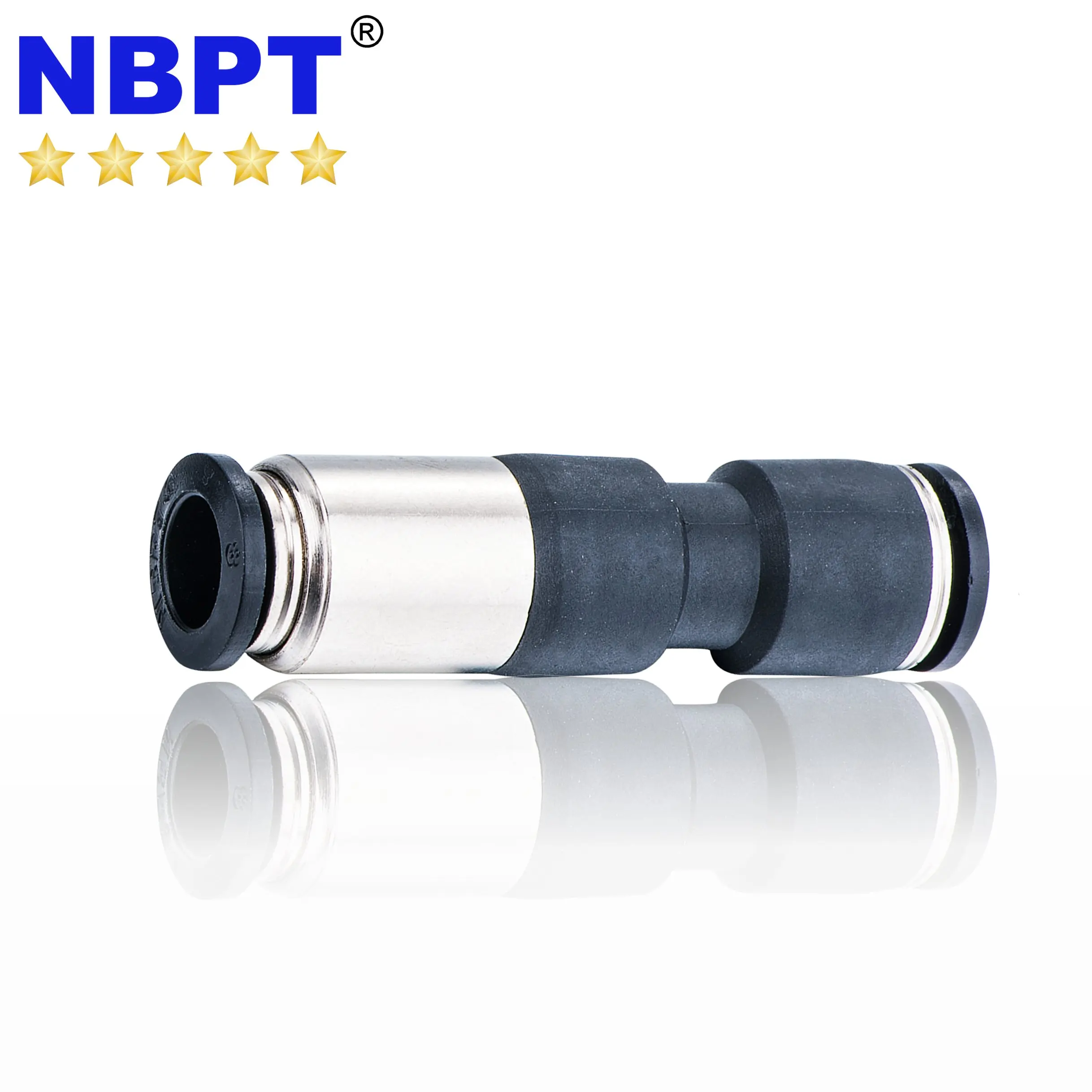

Обратный клапан Нажмите для подключения серии SPU в линии воздушный активированный одно касание стоп
- Категории: Valves >>>
- Поставщик: Ningbo,Pneumatic,Technical,Expert,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

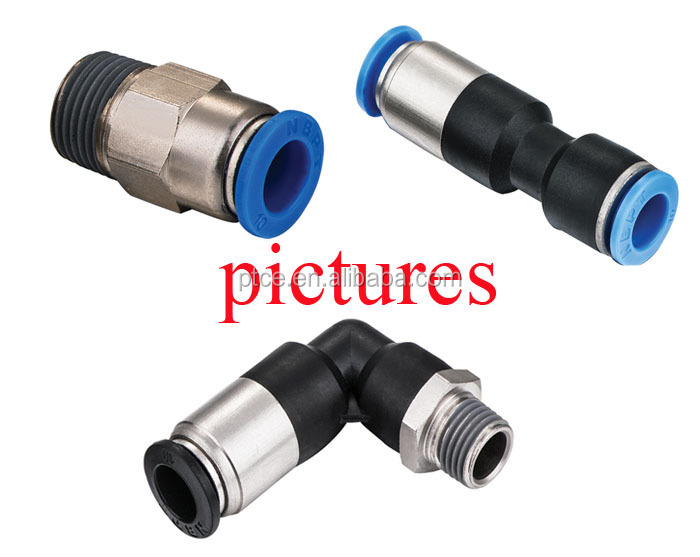

ü Nickel plated high-quality virgin Brass for maximum performance and protection
ü Specially designed for Polyurethane and Nylon tube connection
ü Quick and easy installation and removal, fittings can be reused multiple times
ü Available in BSPT, BSPP, NPT, UNF, SAEand ISO thread types
ü BSPP thread standard equipped with an O-ring
ü NPT and BSPTthreads are PTFE coated, no additional sealant is needed
ü NBPT threads are thicker and heavier than most of our competitors
ü Hexagonal hole thru allows for easy access in tight spaces with an hex Allen wrench
ü Fittings are extensively tested under vibration for leaks at 10kg/cm2 (140 psi)
ü Specially design inner seal is capable to perform at temperature of up to 75 C
ü Hardened Stainless Steel Lock Claw provides extended lifetime and performance
ü Customized release sleeve color: black, blue, red, grey, orange, green
ü Certification: GB/T 19001-2016/ ISO 9001-2015
Applications:
Used in the place where pneumatic piping frequently changes.
Features:
Air is completely blocked when the tube is released and the air flows again only after connection to ensure safety. The air flows only when the tube is connected.

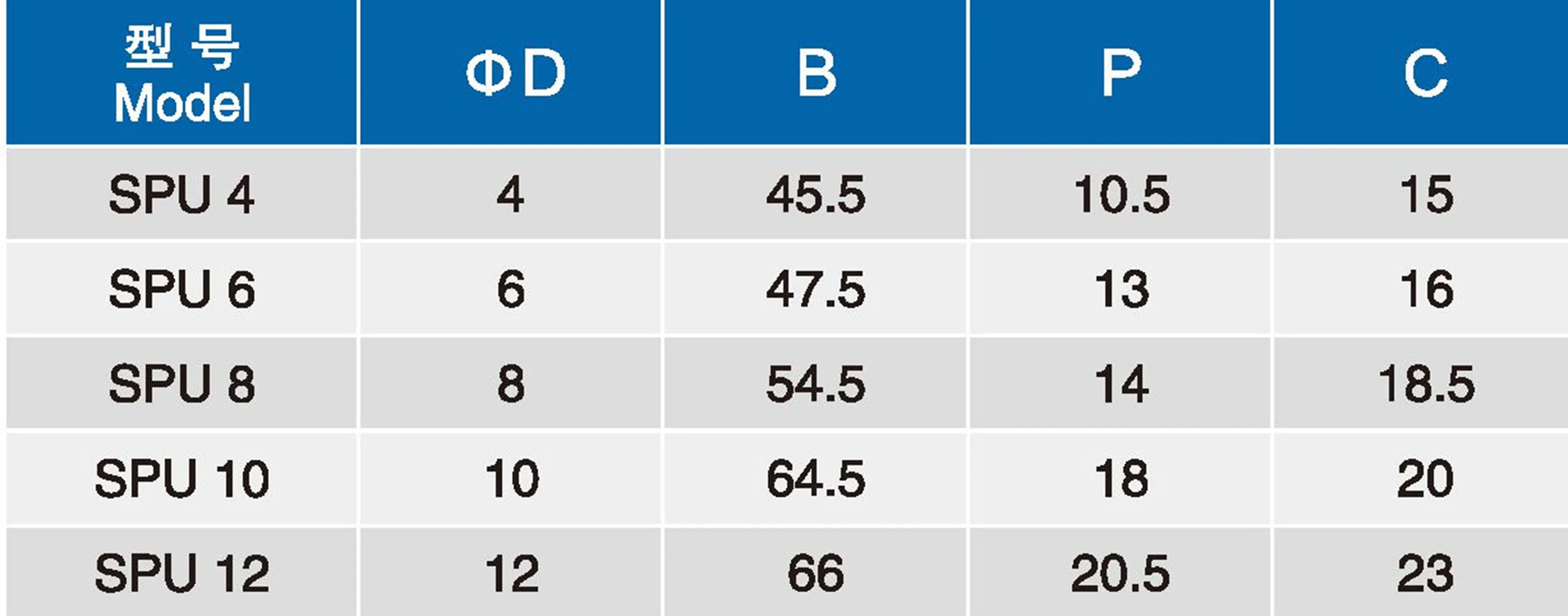

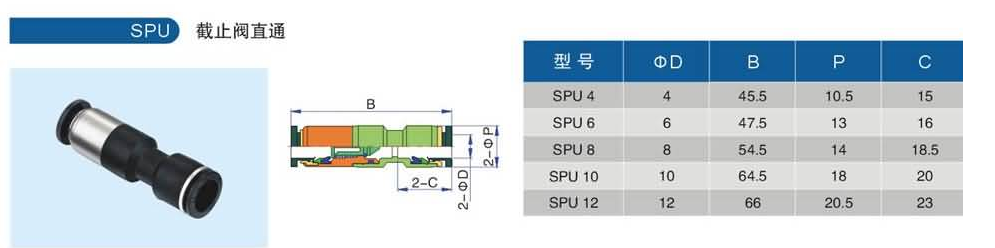

Specifications:
| Fluid | Air(no other grass or liquids) |
| Operating Pressure | 0-150psl 0-9.9kgf/cm²(0-990kpa) |
| Negative Pressure | -29.5in Hg -750mmHg(-750Torr) |
| Operating Temperature | 32-140°F 0-60°C |
| Applicable Tube | PU/Nylon and polyurethane |
For more information about us ,please go to the website:http://ptce.en.alibaba.com/company_profile.html#top-nav-bar
