Product Description
Product Application
This machine is suitable for stiring,kneading and dispersion of all kinds of chemical raw materials,such as plastic ,rubber, synthetic rubber hot melt adhesive, etc.And then put the formula into the production line.This machine is equipped with PLC man-machine interface,temperature control module,and heat conduction oil heating cooling system.Make it easy to operate,fast heating and cooling.With this machine,you can do many different experiments of all kinds of material in a short time.
XH-420 Technical Parameter | ||||||
Mixing Capacity | 1L,3L,5L,10L (can be customized) | |||||
Rotor speed(front/back) | 40/31r/m(non-adjustable) | |||||
Cylinder diameter of top peg | 80mm | |||||
Compressed air pressure | 0.5~0.8MPa | |||||
Heating power | 10KW | |||||
Heating mode | oil heating or electrical heating | |||||
Temperature | room tempe ~300°C | |||||
High temp oil pump | 0.75KW-350°C wheelcoupled(lift:20m, flow:3/H) | |||||
W type mixer chamber | 138*200mm high-carbon steel | |||||
Mixing blade | 137*200mm high-carbon steel | |||||
Power of main motor | 5.5 KW | |||||
Rotate speed of motor | 1440rpm | |||||
Title angle of Mixing chamber | 110° | |||||
Power of tilt Motor | 0.75 KW | |||||
Demention | L*W * H 1750*880*2300mm | |||||
Weight | about 1200Kg | |||||
Power | 3Ø, AC380V, 20A | |||||

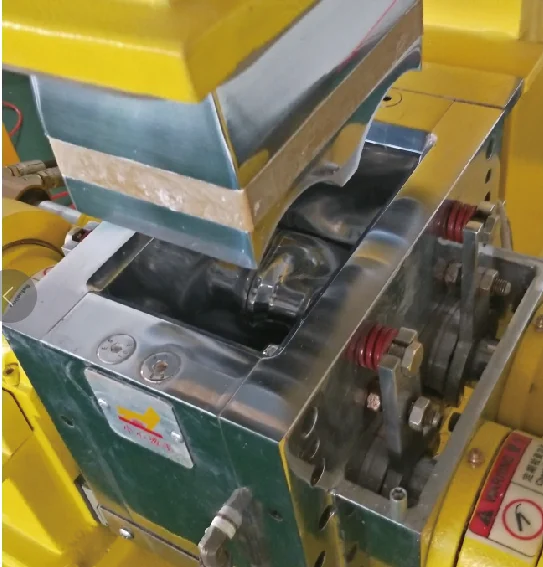

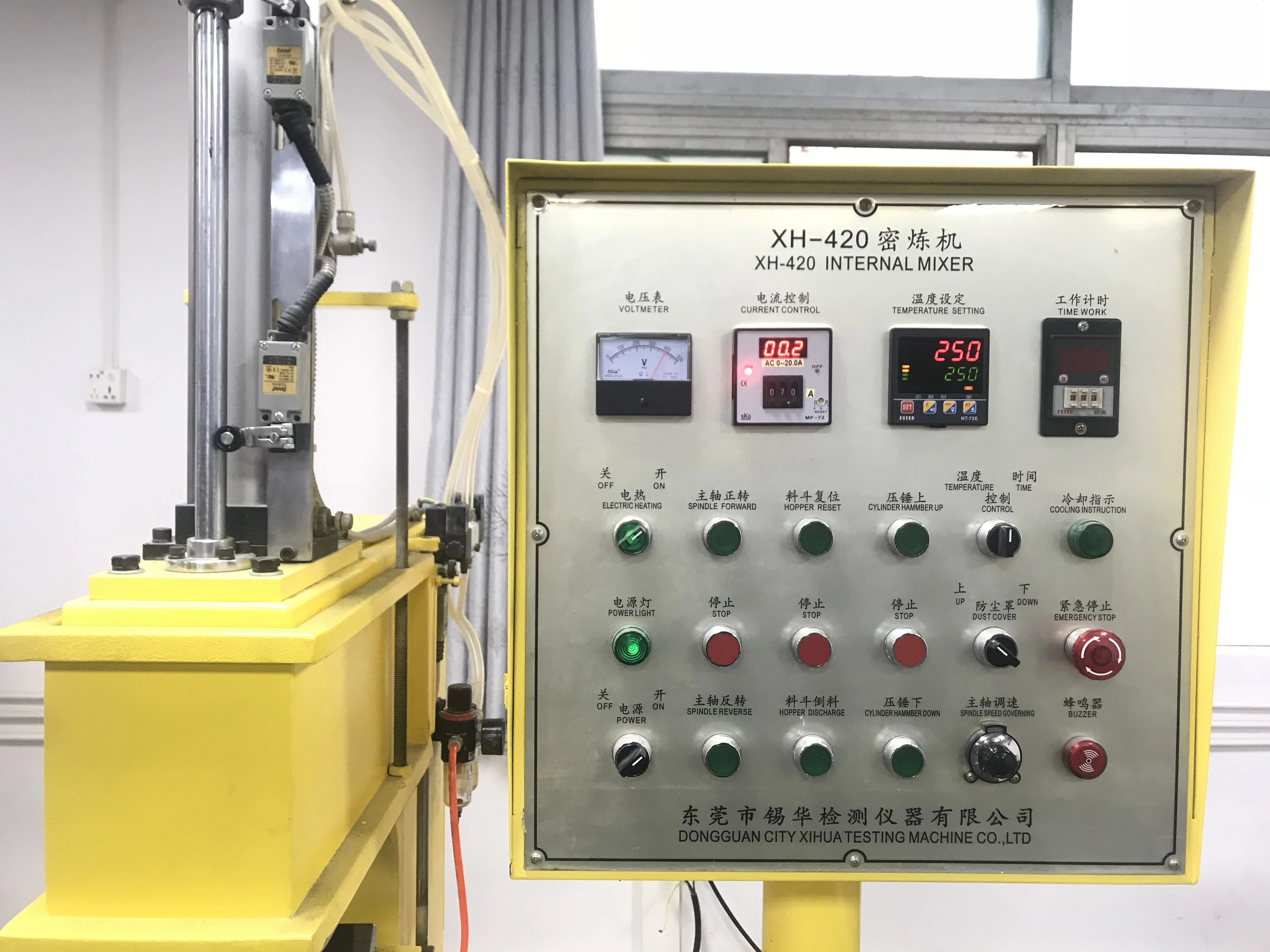

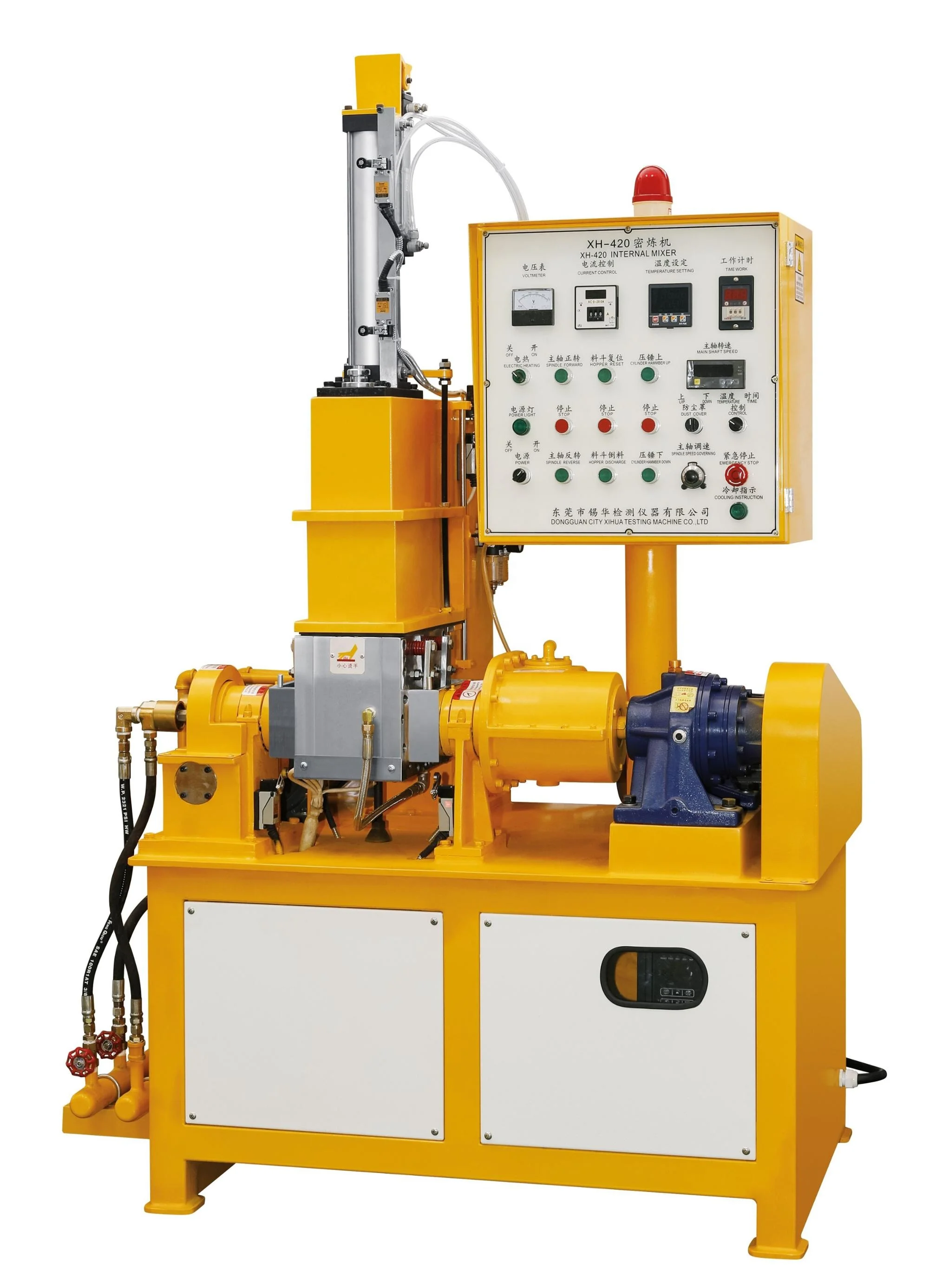

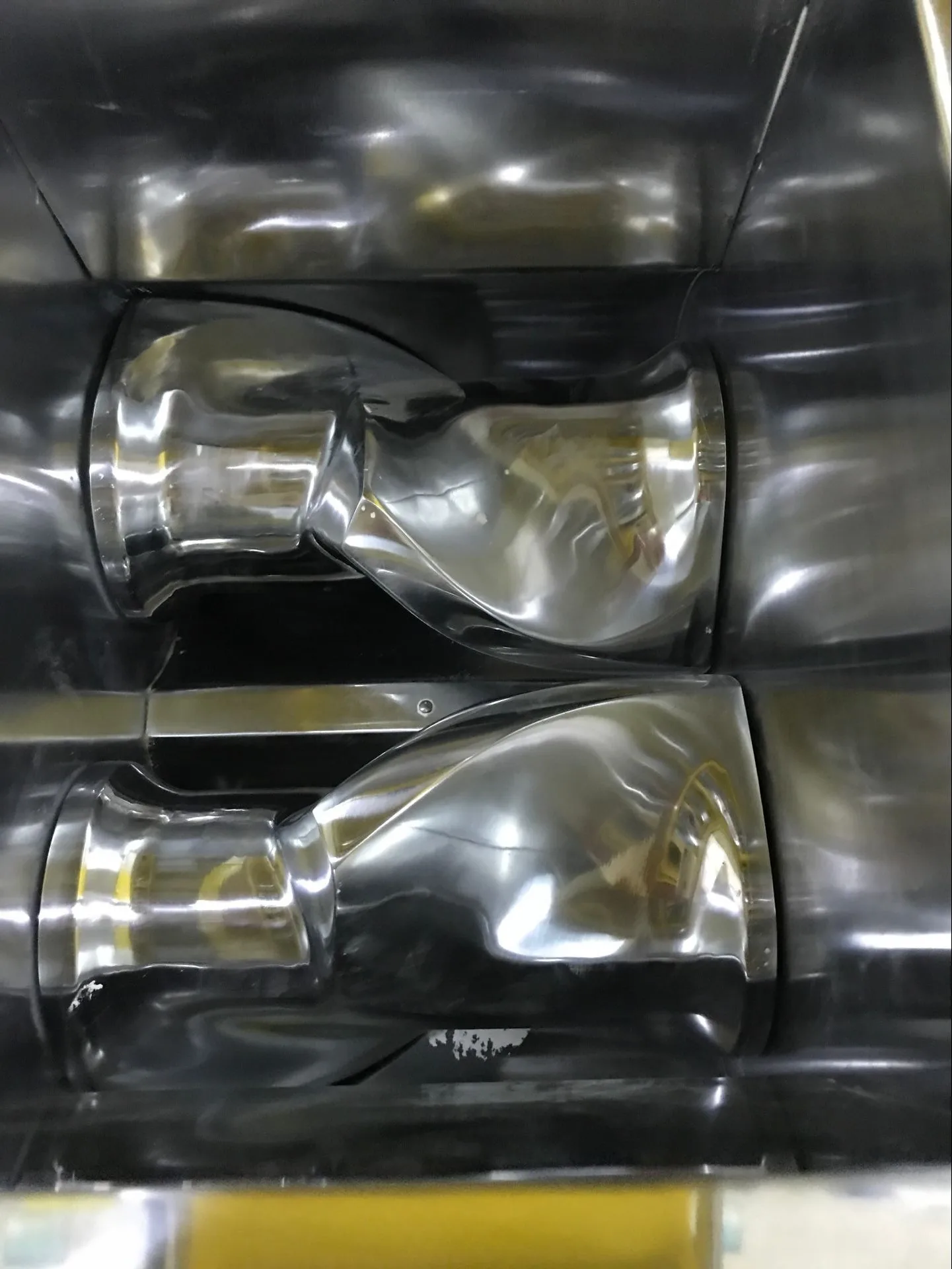

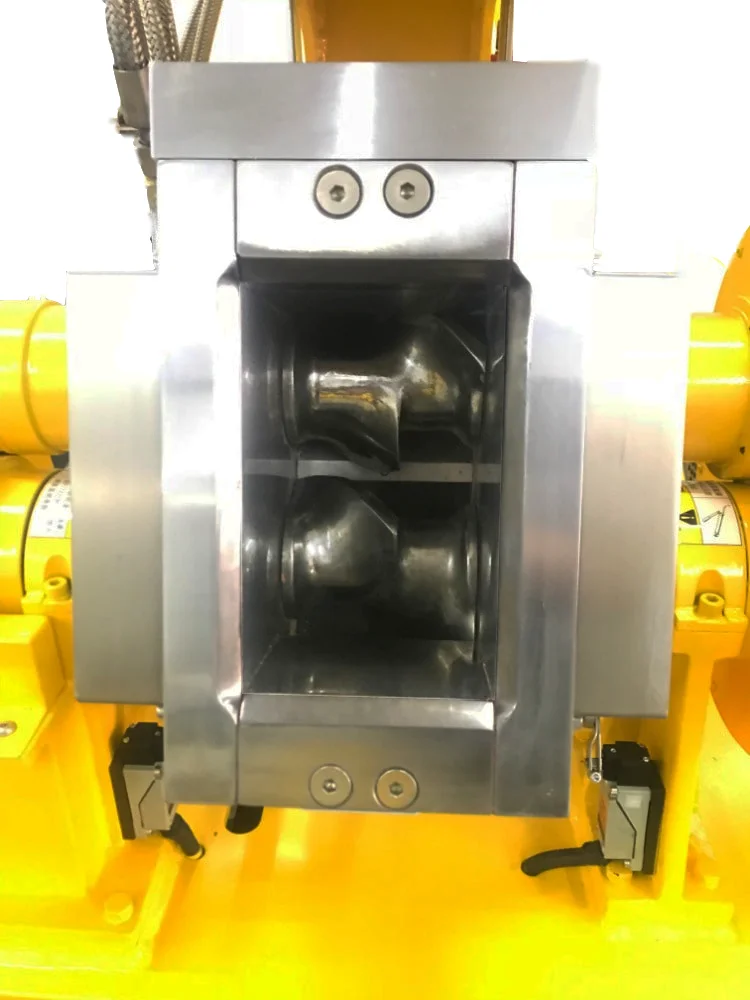

Detailed Images
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact Information
Dongguan Xihua Testing Machine Co.,Ltd
WhatsApp: +86 15625539168
Wechat: +86 15625539168
Website: www.lab-xh.com
Our Exhibition
Packing & Delivery
Packaging | ||
Size | 1750 * 880 * 2300 mm | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). | |
