Double head digital display aluminium window cutting machinery

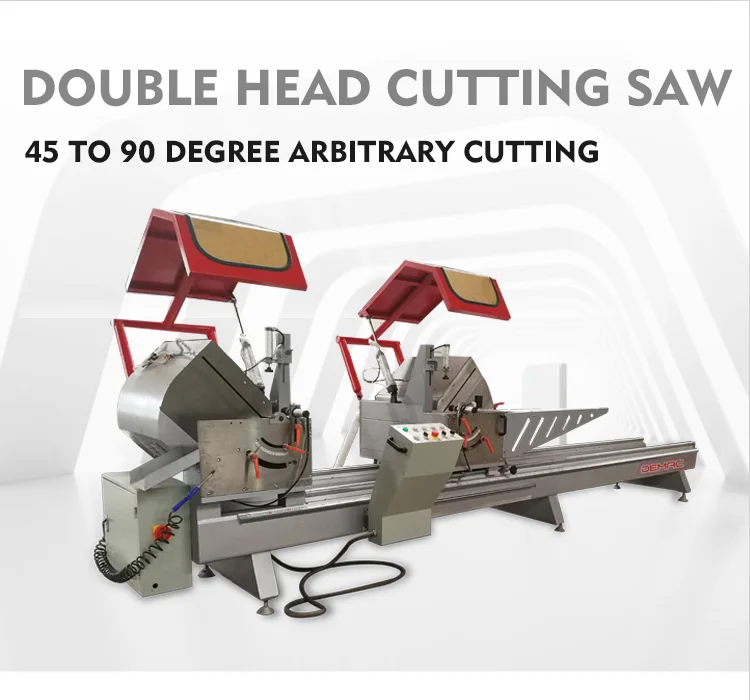

Double Head Cutting Saw-with Digital Display LJZ2C-500x4200A



Specification:

•  Used for Aluminum profile accurate Cutting

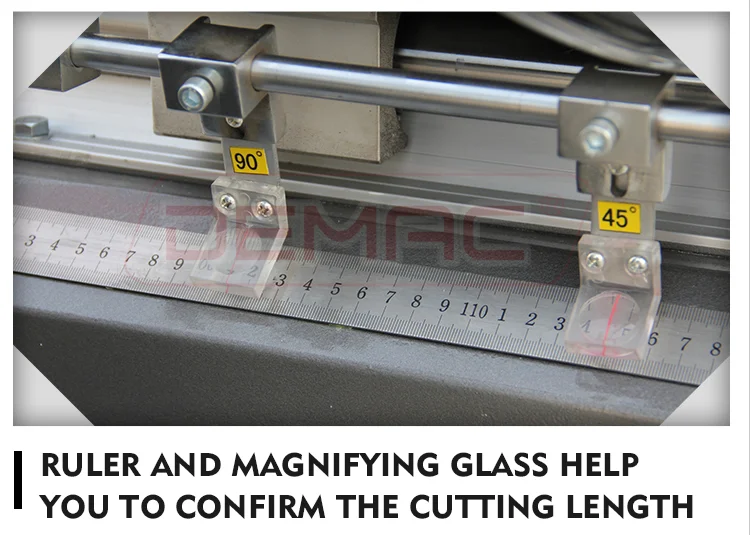

• Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.

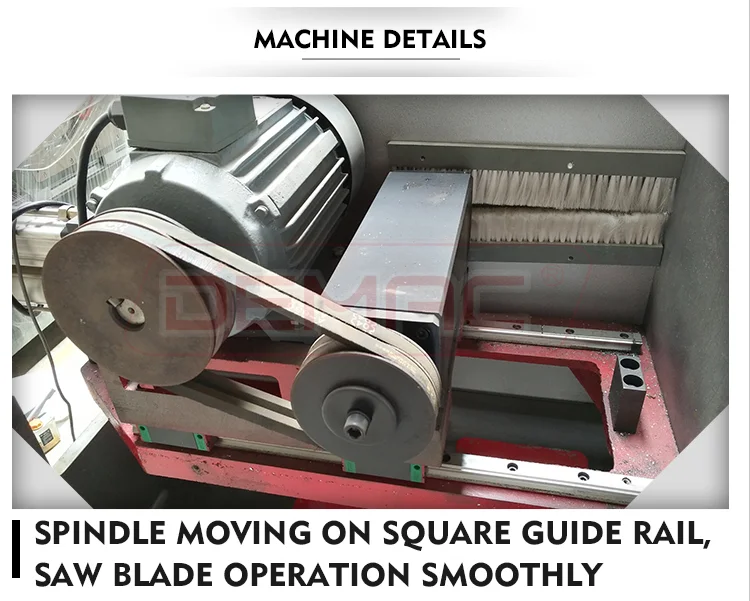

• Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.


• Hydraulic cylinder ensured the stable speed adjusting and saw blade working.

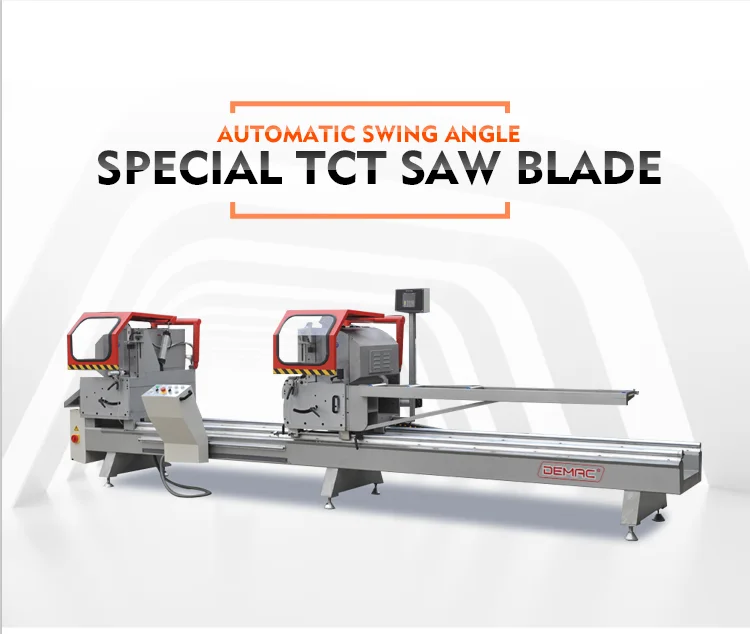

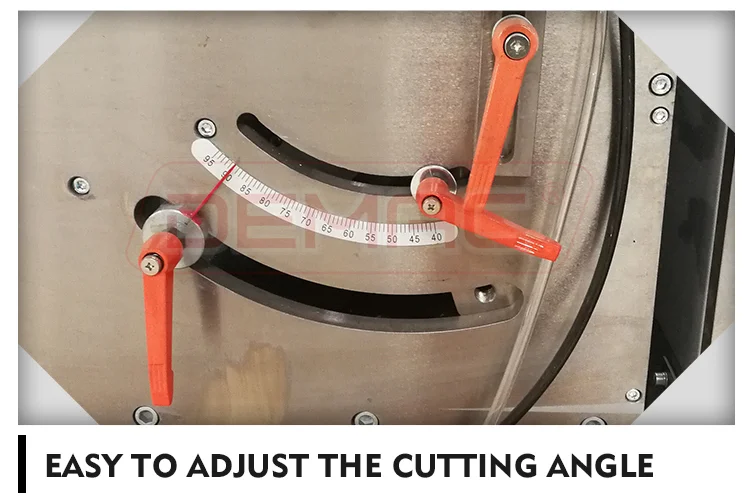

• Automatic angle cutting change in 45° and 90°.

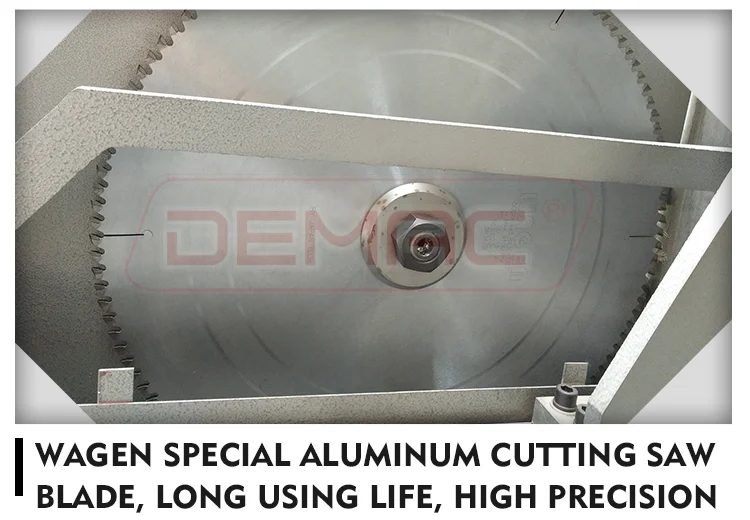

• Carbide saw blade for a high quality cutting and life.

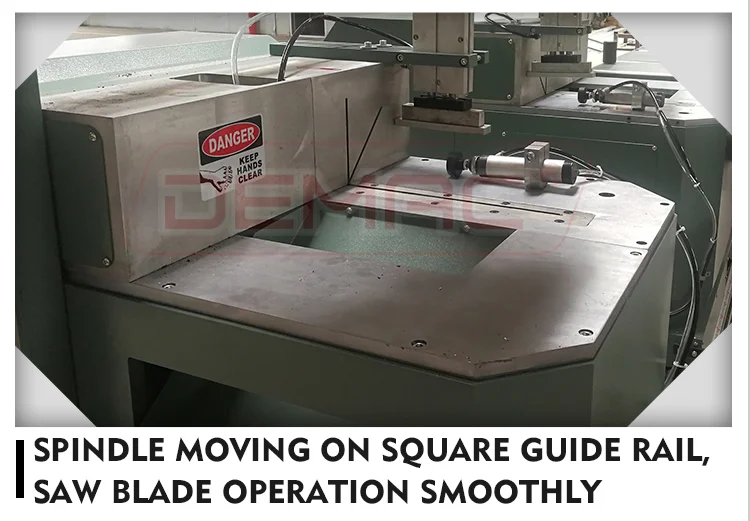

• Safety system of shield can ensure the safe operation of man working.

Technical Parameter:



Power supply	Made to order
Motor power	2*2.2KW
Motor rotary speed	2850r/min
Operation air pressure	0.5~0.8Mpa
Saw blades length	400~4200mm
Air consumption	200L/min
Saw blade height max	200mm×90°;190mm×45°
Saw blade cutting width	max 130mm
Cutting angle	Between 90° and 45°
Feeding speed	Stepless timing 0~3m/min
Saw blade specification	φ500mm×4.4mm×φ30mm Z=120
Dimension	5530mm×1750mm×1950mm
Weight	1850kg
