New Portable Handheld Thermal Camera
Product Description
MTC portable thermal camera is specially designed for mobile observation. With the latest the
5th generation uncooled infrared technology, unique imaging circuit components and AS
optical design, it could search and observe object effectively in 5km. It have advantage like
low weight, low consumption. This camera is equipped with a high quality rubber soft cover as per human hands design, that suit both portable and fixed observation, for night
collecting evidence, search targets. One integral aluminum alloy housing and sealed with
nitrogen IP66 protection to enable the camera works well in severe weather conditions
Application
Border and coastal safety, city monitoring, oilfield safety, railway monitoring ,
night gathering evidence etc.
Feature
1. 5th generation uncooled thermal sensor, decrease the size, weight and cost.
2. Aluminum alloy housing, weatherproof rate IP65., anti-rain, anti-dust.
3.NETD up to 50mk, higher sensitivity, little effect by rain, fog, and snow,
obtain more delicate picture.
4.Unique AS optical design and high precision optical mechanical design, excellent image quality.
5.Excellent non-uniform image correct technology, good image and dynamic range, without
TEC thermostatic control.
6. SDE image detail enhancement technology, no noise, B/W and B/W optical.
Specification
Model | MTC4105R | MTC4107R |
Detection | Vehicle 3800m Human 1300m | Vehicle 5800m Human 2000m |
Identification | Vehicle 970m Human 400m | Vehicle 1460m Human 600m |
Sensor | 5th generation UFPA | |
Resolution | 336*256 | |
Wave length | 7.5~14μm | |
Digital zoom | 2x ; 4 x | |
Color mode | Hot-white/Hot-black | |
Lens | 50mm, F1.0 | 75mm, F1.0 |
FOV | 10°*8° | 5.4°*4.1° |
Eyepiece display | 640*480 , binocular display with eyeshade, high hidden | |
Image storage/video | 4G memory card, 1000photos in JPEG format, video for 3.5 hours in AVI format, USB export | |
ECO mode | Auto | |
Operation | Four buttons, two at each side | |
Battery parameter | Operation voltage DC: +2.6V~+5.5V; Power consumption<2.8W (video time); 2xlithium battery,25500,3000 mAh ; Continuous working time : > 5 hours at no record, >3.5 hours at record. Using life > 500 times , charge/ discharge cycles | |
Starting time | <3s | |
Interface | Video output | |
Weatherproof | IP66 | |
Humidity | 5%~95%(non-condensing) | |
Storage temperature | -40℃~+70℃ | |
Operation temp. | -20℃~+60℃ | |
Weight | <1.5kg (Included battery) | |

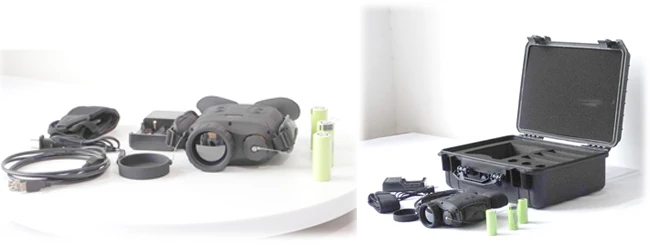

Accessories | Video cable, lens cap, rubber covert, charger, lithium battery, suitcase | |
