New design steel bar bending machine price reinforcing bar bender machine Skype evazhao06
Whats app 0086 15617575581

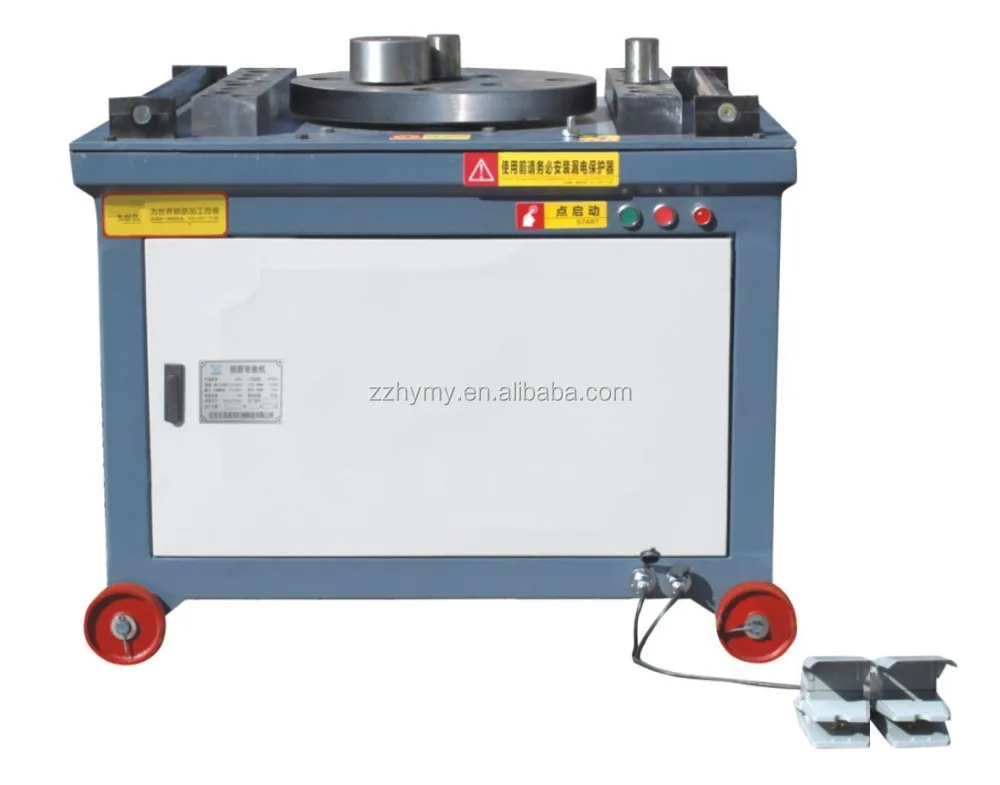

Brief instruction of steel bar bending machine

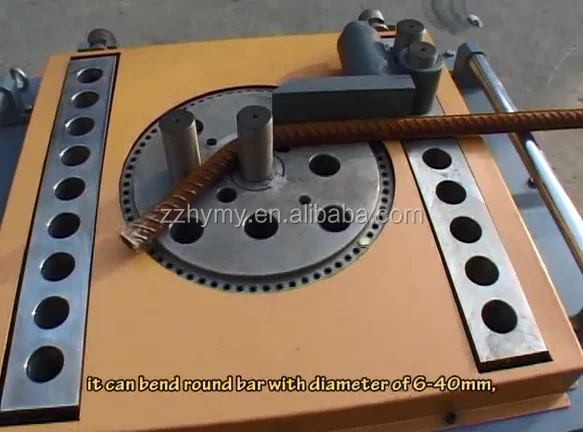

Steel bar bending machine mainly used for bending the common round steel, carbon steel, Ⅱ/Ⅲ straight thread, and other construction projects, processing enterprises need various bending shape of the workpiece. This machine is mainly composed of drive gear, rack and workbench of three parts, transmission parts by motor through a triangle belt, pulley, gear shaft drive disc rotation, to complete the workpiece bending.
Steel bar bending machine mainly used for bending the common round steel, carbon steel, Ⅱ/Ⅲ straight thread, and other construction projects, processing enterprises need various bending shape of the workpiece. This machine is mainly composed of drive gear, rack and workbench of three parts, transmission parts by motor through a triangle belt, pulley, gear shaft drive disc rotation, to complete the workpiece bending.
Technical parameter of steel bar bending machine
Type | GW40 | GW42D | GW50 | RB-32 |
Bar bend diameter | Φ6-40mm | Φ6-40mm | Φ6-50mm | Φ6-32mm |
Corrugated bar bend diameter | Φ6-32mm | Φ6-32mm | Φ6-42mm | Φ6-28mm |
Disc diameter | Φ350mm × 38mm | Φ360mm × 38mm | Φ400mm × 45mm |
|
Spindle speed | 14r/min | 14r/min | 2.685r/min | 5r/min |
Transmission | gear | gear | worm and wheel | mechanical |
Power supply | Electricity, 3kw | Electricity, 3kw | Electricity, 4kw | Electricity, 3kw |
Voltage | 380V/50HZ/3phase | 380V/50HZ/3phase | 380V/50HZ/3phase | 380V/50HZ/ 3phase |
Weight | 342kg | 374kg | 490kg | 109kg |
Packing size(mm) | 1040×870×965 | 1045×870×965 | 1045×870×965 | 650×650×730 |

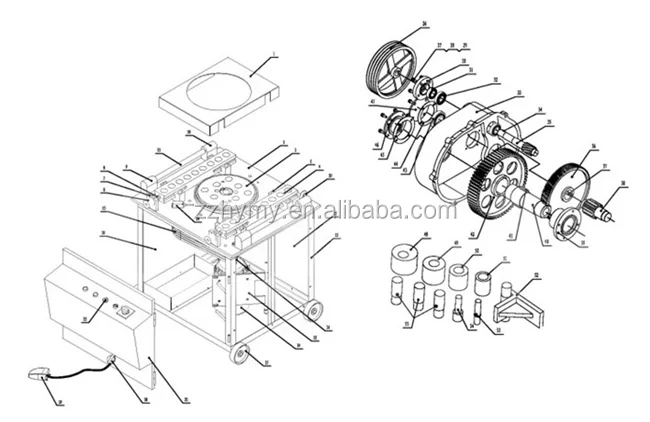

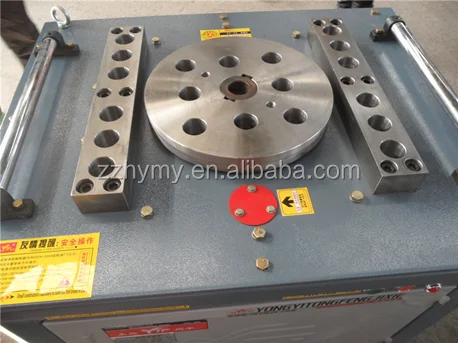

Main parts of steel bar bending machine

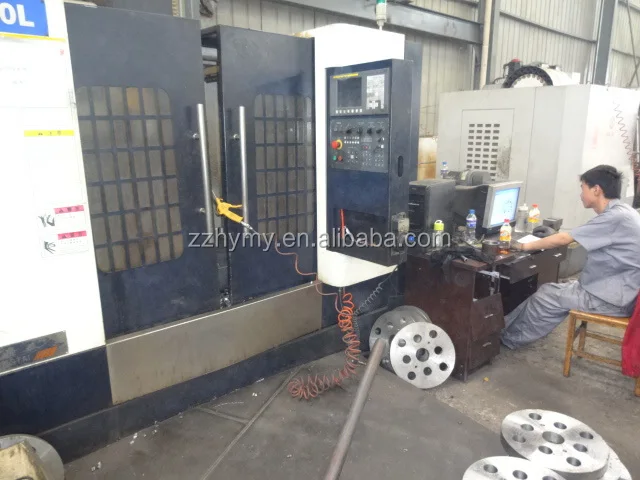

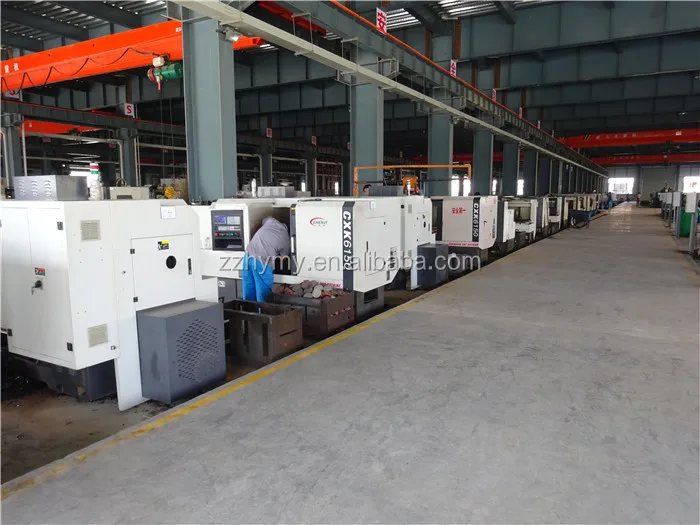

Steel bar bending machine semi-finished product and main parts, all the parts in processing by the our CNC center.
Main feature of steel bar bending machine
1)The special extra-thick steel plates, high steel disc of iron, high power medium-speed
international standard motor, the quality is more stable.
2)It is fully enclosed gear-box, low noise, high and low speed, which uses easily.
3)It adds eccentric bushing, ultra-high hardness accessories and adjustable baffles, so it will
have longer service life.

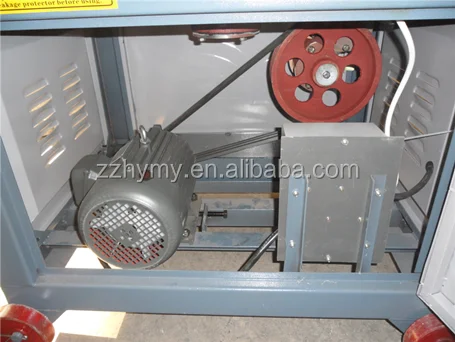

Intarnal structure of steel bar bending machine
Advantages of steel bar bending machine
1 Reasonable structure
2 Easy to operate and maintain
3 High quality and low cost
4 Long lifetime
5 Energy saving

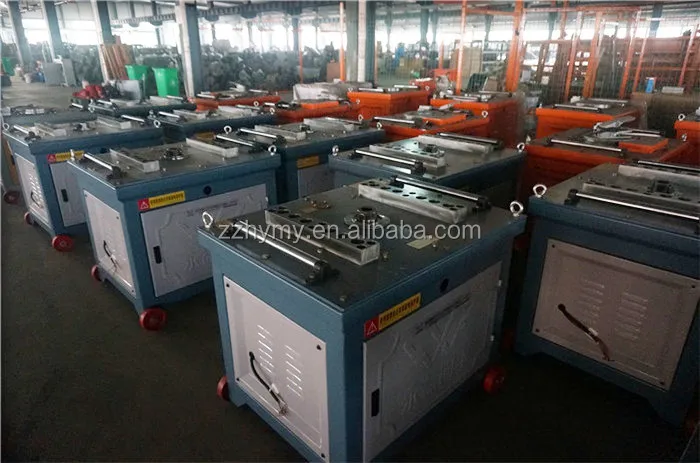

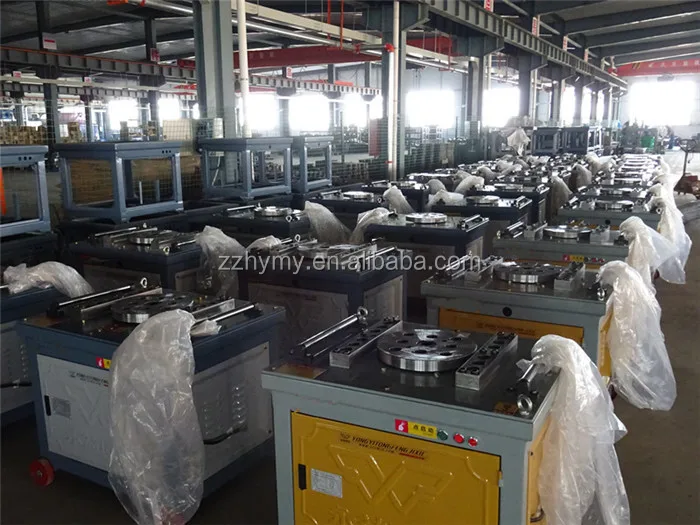

The steel bar bending machine in our work shop
If you are interested in this steel bar bending machine, welcome to contact with me freely as the followings:
