Высокое качество besnt наружного видеонаблюдения функции панорамирования наклона и блок Всенаправленный сканер

Описание и отзывы

Характеристики

Top quality besnt Outdoor cctv pan tilt unit omnidirectional Scanner BS-PT303





Outdoor Pan/Tilt omnidirectional Scanner

Electric,machine character:
Input voltage: AC 24V/60Hz,110V/60Hz, 220V/50Hz
Output power: AC 960mA, 300mA, 35mA
Matching cable: 6*0.5mm2 cable
Weight:6kg
Material : AL alloy mold

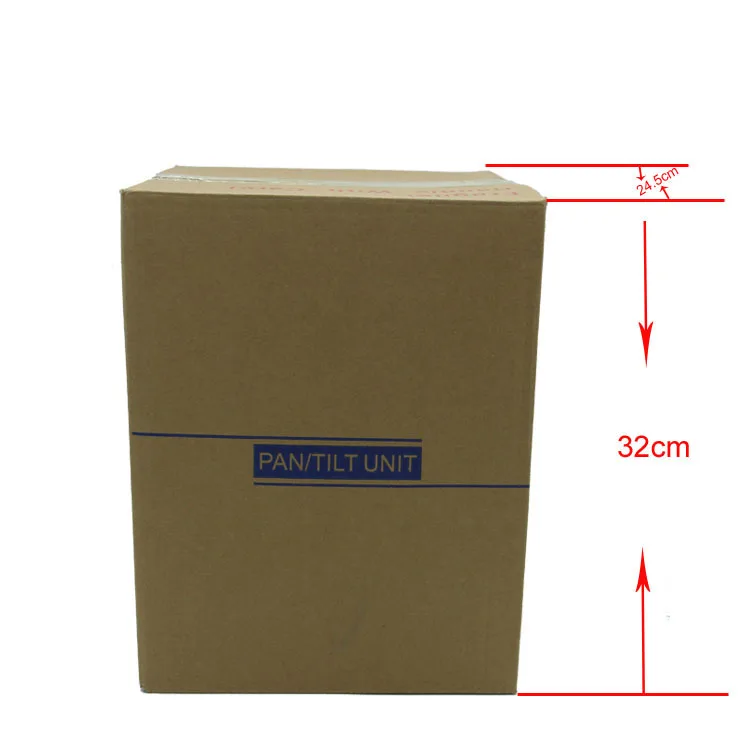

Packing Weight:2.5kg

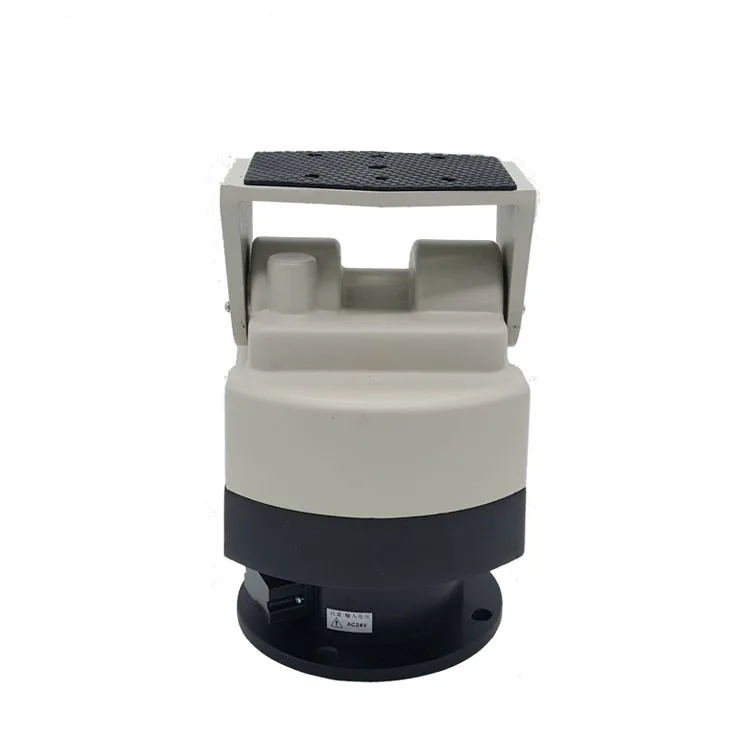

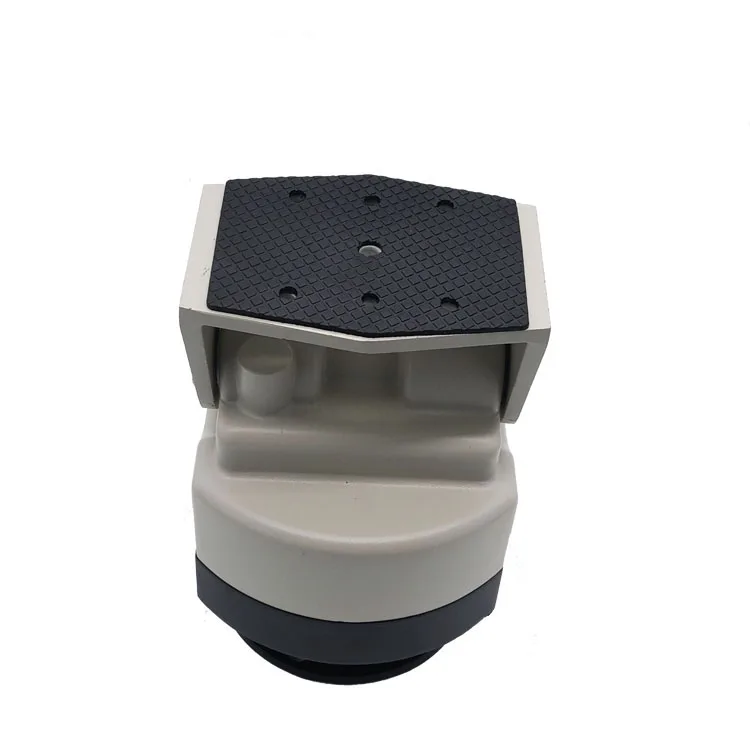

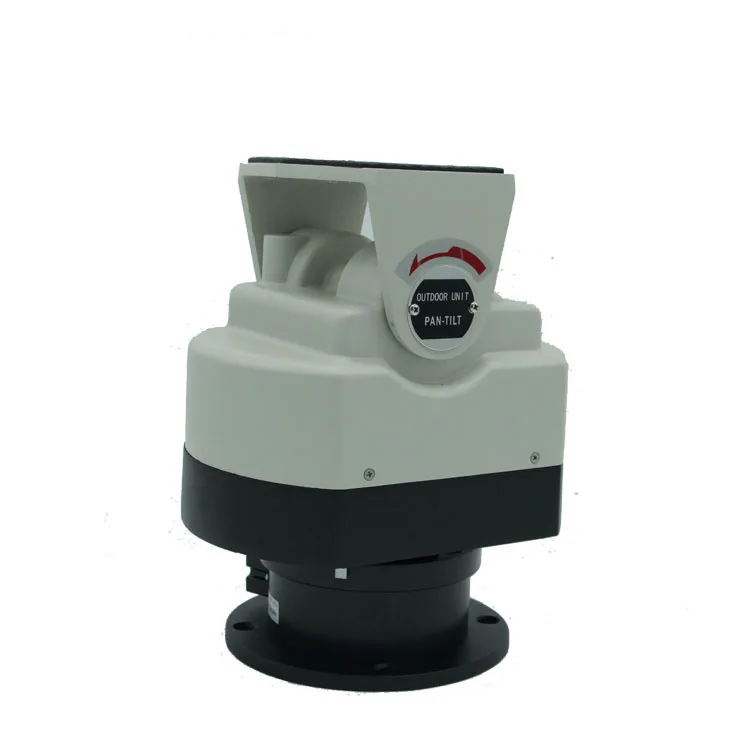

motorized pan tilt head Real Picture:



Features: PTZ choose permanent magnet synchronous motors overloaded, with pan stop protection, anti strong winds, equipped with high performance and long life gearbox inlet assembly, metal gear, horizontal automatic limit adjustment, aluminum alloy diecast cause type, high temperature, anti-aging, anti-corrosion, waterproof, anti-acid rain

Rated Power:  220V / 24V



303 head for the indoor and outdoor general-truck head, with an external decoder to work independently, head slow speed, load large, rotatable horizontal and vertical speed of about 6 degrees per second, in the head Installation above the infrared light, infrared cameras, guard, bolt, etc. for use. Features: AC24V driven directly by the decoder output drive requires no external power supply voltage, the level of support to stay connected automatically scans the outer 6-core control line, without further welding head horizontal speed 6 degrees / S, vertical speed 3 ° / S horizontal angle of 350 degrees vertical angle of 60 degrees indoor / outdoor general purpose, all-metal shell, waterproof, anti-acid rain, corrosion resistance with an external decoder can be installed using the camera, infrared light and a variety of cover. Product description: 303 PTZ is in line with an indoor and outdoor general Haeundae external decoders use slow speed, load larger horizontally and vertically rotated about 6 degrees per second speed, can be installed infrared light, infrared camera head above the hood , bolt, etc. for use. 303 PTZ all-metal design, with a high temperature, anti-aging, anti-corrosion, waterproof, anti-acid rain, anti strong winds, long working life and so on. Without reprovision power, relying on an external decoder drive up and down about the slow rotation. Support horizontal scanning and horizontal positioning function. When using the section head, make additional configuration 303 PTZ mounting bracket and decoder. Specifications: PTZ driver input 1A / AC220V, decoder factory direct drive connection with a 6-core control line 303 PTZ special bracket installation with connection screws Ambient temperature -30 ℃ ~ 60 ℃ Humidity ≤90% RH (non-condensing) Dimensions 280 (H) * 190 (diameter)

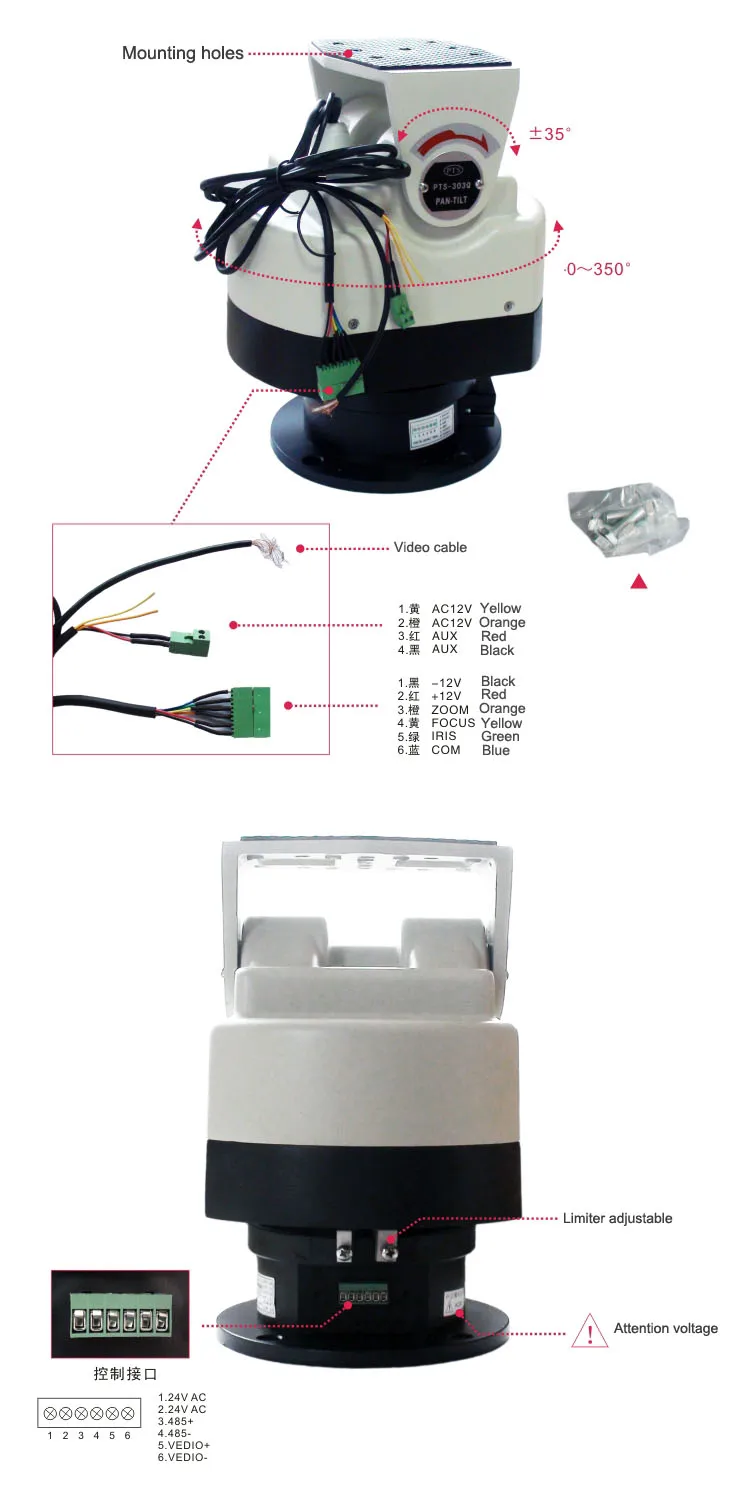

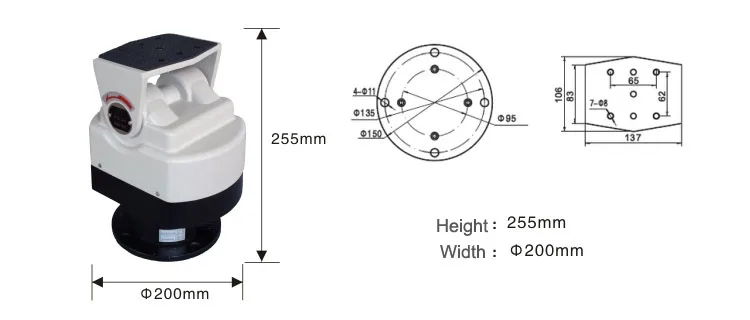

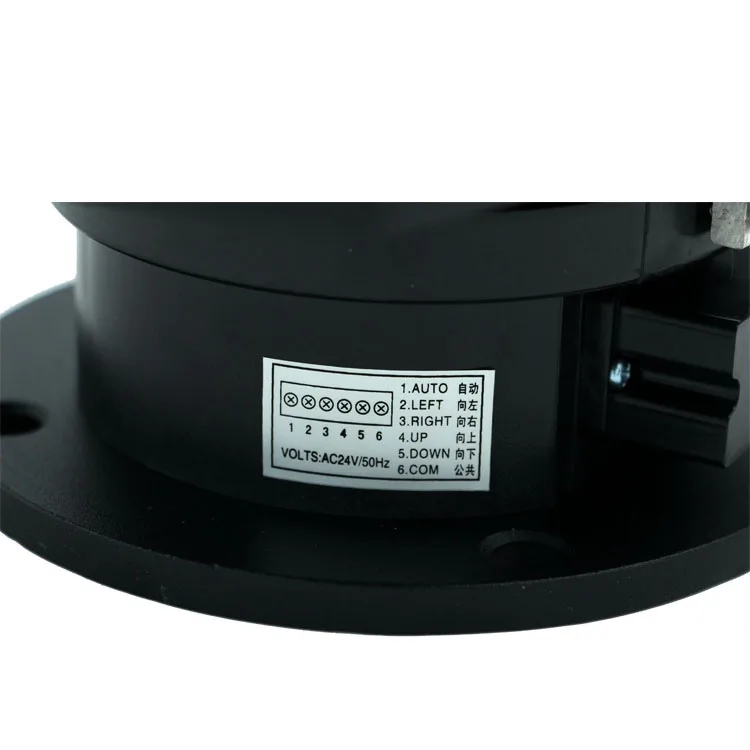

Input voltage AC24V.110v.220v rotation angle Horizontal: 350 degrees Vertical: +60 degrees to -60 degrees horizontal rotation speed: 6 ° / sec Tilt: 3 ° / sec load 38Kg weight 6Kg Operating temperature -40 ℃ ~ + 40 ℃ Outline Size φ190mm * 290mm (H) Function plug 1, Auto 2, public 3, down 4, up 5, right 6, left







FAQ:

1. About the sample: How could I get a sample?



Once receive your payment for samples and their express delivery and then send samples

to you. The prices of the samples are the same as those on the pricelist. Express delivery

charge depends on the quantity of the samples.



2. About price list: can I get your price list?



Yes, please tell us the products (with their code number) and order quantity, then we will

offer the price by e-mail. And our price list will keep updated every month.



3. About the shipment: what type of shipment will you use?



We usually ship the products by express delivery to your door or by air freight to your nearest

airport. If the order quantity is large, we may ship by sea container.



4. About payment: what terms of payment do you use?



We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small

order and L/C for larger order.



5. About the MOQ: What is your minimum order qty?



Our minimum order qty is 50pcs each model, but we accept small order as trial order.



6,About compensation: what is your company's compensation policy?



We can compensate buyer's loss if our products have quality problem. For small qty

problem products, we can replace with new products in next order. For larger qty problem

products, we can accept returned problematic products, then we check them and replace

 them by good quality products.



7. About sole-distributor: How can I be your sole-distributor?



We have special policy for sole-distributor. Please contact our sales person to get related files.

If you can sell our products worth USD 10,000 ----50,000 per month, you can become our sole distributor in your city or area; if you can sell our products worth USD 50,000 or above per

month, you can become our sole distributor in your country.



8. About OEM: could we place order by OEM style to produce our own brand products in China?



Of course you can. Welcome to do OEM.



If any question, welcome to contact with me.Thanks for your attention to our product.
