furniture/aluminum industry powder coating spray room/spray booth, spray paint room



 Powder spraying booth is designed with Recovery System and automatic powder collecton Bin.It's work with Air



pump, which can be produced by the customer's request.  It's Economical & Competitive.













• Inner side: 3000width*1200depth*2100mmHeight
• Body material δ=1.2mm cold plate, fold. with a powder hopper
• Fliter number 4 pcs/set Flither,Size same as original fast-loading
• Recycling fan1/set





Advangages of colo-T powder spraying booth

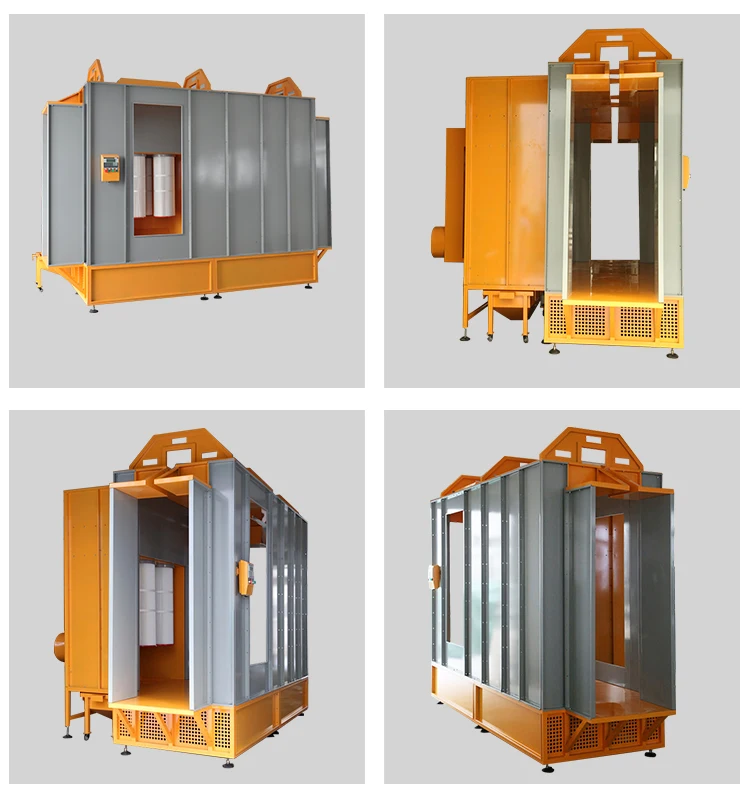

The manual coating booth is designed for the double-sided manual coating with a conveyor system. This



booth can be used as simple automatic system as well.

• Powder coated steel booth, moveable
•
• Delivered ready for connection
•
• Integrated Illumination
•
• Mobile powder collecting hopper
•
• Simplified filter cartridge for changing
•
• Supervision of minimal exhaust air volume



  Technical data of powder spray booth



Model	COLO-S3212
Booth Type	Closed
Power supply	Electric
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	4
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Warranty	12 months







Components of powder spray booth

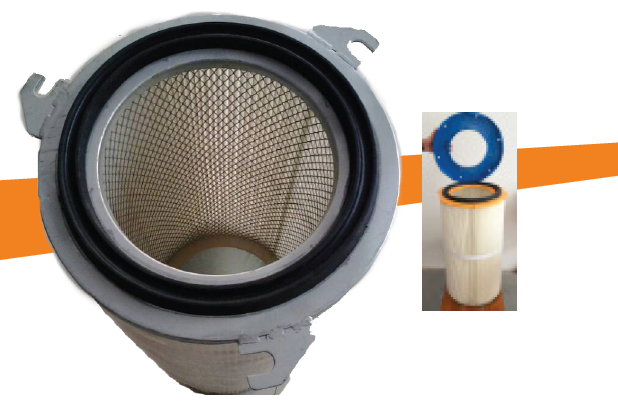

1.Primary filter module: cartridge type



a.Common type filter available sizes:

• 325*215*600mm
• 320*220*600mm
• 325*215*900mm
• 320*220*900mm









2.Automatic powder collection bin ,It's arbeit with Cylinder.









3.Other parts inlcude fans, motors, nut and bolt fasteners. detailed drawings and instructions.( all included in one single shipment.)









Know more about  Powder spray booth

Powder spray booth is an economical solution for basic powder coating operations requiring reclaim capability in continuous production situations.

For job shops, first-time powder coaters and to suppliment large in-house powder coating operations,this powder spray booths offer a variety of configuration options.

Booths size could Custom designed,Manual and automatic spray stations are also available.  Other features include:

Durable, long-life powder-coated steel structure with high-quality galvanized canopy and floor

Low-profile booth base eliminates operator platforms

Requires only quick, easy conncet electrical and pneumatics to start production .

Fan motor is 1.5KW-5.5KW.

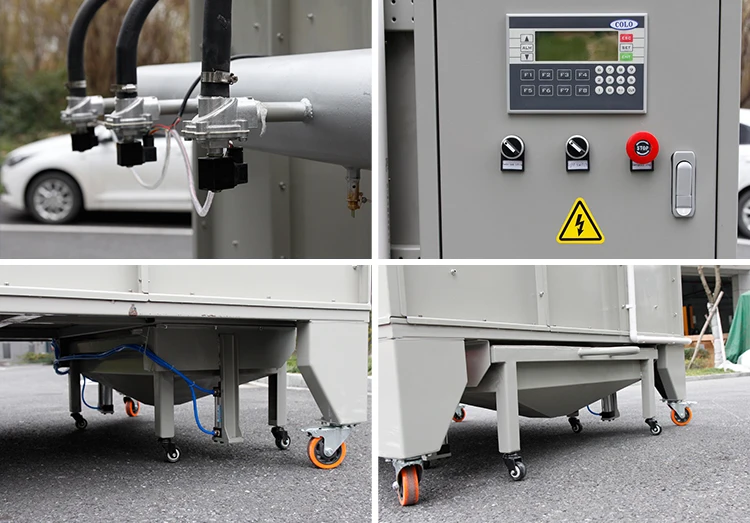

During operation overspray powder accumulates on the cartridge filters. As the cartridge filters load, airflow decreases and the negative pressure rises within the air handler. A timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure maximum flitter life.
