Product Description
Modified Asphalt bitumen waterproofing membrane rolls production line
The production line is to produce bitumen waterproof membrane
Finished bitumen Membrane is widely used in industrial and civil buildings, such as roof, basement,
toilet, bridge, park, swimming pool, tunnel for waterproof & moisture-proof.
Model Name | DYZ---100 | DYZ---200 | DYZ---300 | DYZ---500 | DYZ-800 | DYZ-1000 | DYZ-->1000 |
Machine Type | Simple | Simple | Midsize | Midsize | Large | Large | Large |
Membrane(m²) Annual Output | 1 million | 1.5--2 | 2.5--3 | 4.5--5 | 6-8 | 8-10 | >1000 |
Workshop required (L×W×H meter) | 40×10×6.5 | 40×10×6.5 | 40×10×6.5 | 45×12×6.5 | 50×12×6.5 | 60×12×6.5 | 70×12×6.5 |
Operation Mode | Semi-automatic or automatic | ||||||
Finished products'(bitumen membrane) description
Item | Torch applied bitumen waterproof membrane Self-adhesive bitumen waterproof membrane | ||||
Base | Polyester mat /Fiberglass Compound mat/..... | ||||

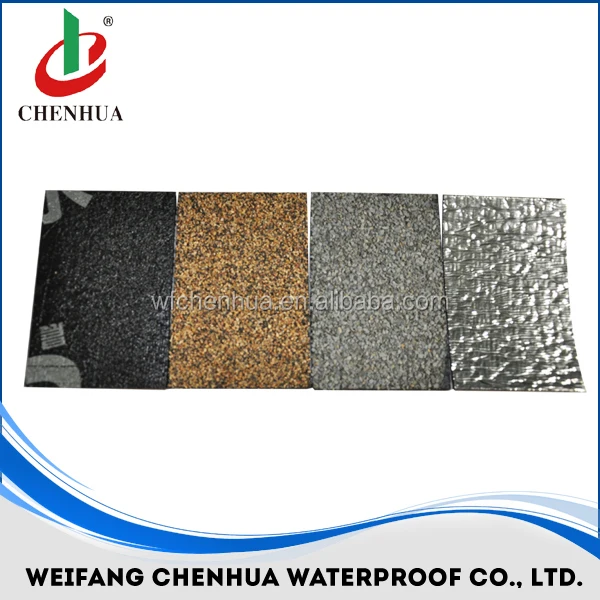

Surface material | PE film | Sands | Mineral flakes | Aluminum foil | Isolation layer |
Thickness | 2mm-5mm | ||||
Spec.&Packing | 1m*10m(W*L)/roll wrapped by tape | ||||
Standard | GB18242-2008 Elastomeric modified bitumen membrane GB18243-2008 Plastic modified bitumen membrane | ||||

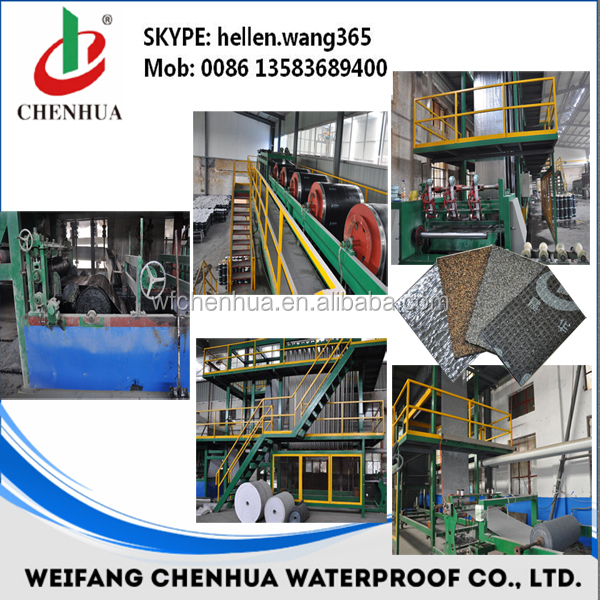

Product show

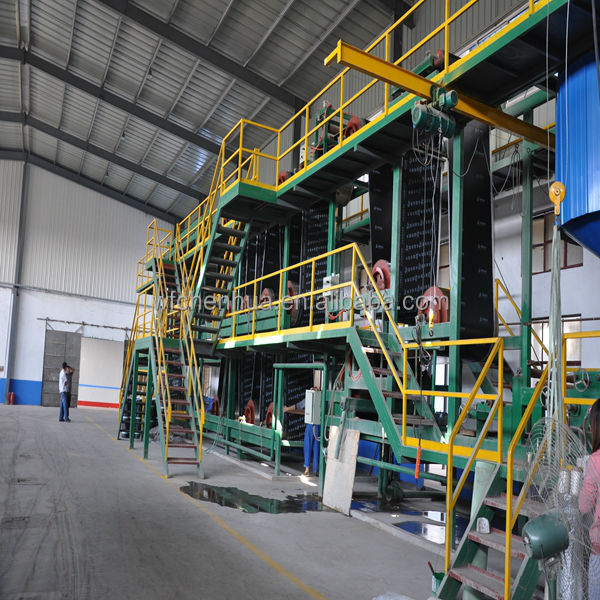

Modified Asphalt bitumen waterproofing membrane rolls production line
Technological process | Bitumen - Mixed with rubber powder, talc powder. Meanwhile polymers are added to the bitumen such as APP (atactic polypropylene) a plastic additive that gives rigidity and tear resistance or SBS (styrene butadiene styrene) a rubber additive that gives more elastic benefits. then it to be covered with limestone or sand or PE film or aluminum film. |
Production speed | 0-50m / minute (adjustable) |
Machine name | Asphalt production plant, asphalt membrane production line |
Advantage | 1)Rational structure 2)Low transportation, installation, adjustment cost 3)Convenient to operate |
Four parts included | 1)Production line part (Indoor parts) 2)Heating Boiler part 3)Oxidation bitumen part 4)Environment production part(Outdoor parts) |
Some parts : Modified Asphalt bitumen waterproofing membrane rolls production line | |||
1 | Unwinding device | 11 | Suspend cooling device |
2 | Splicing machine Splice the base mat | 12 | Cooling embossing device |
3 | Bast mat storage Storage capacity with 30m--50m | 13 | Finished products storage device |
4 | Drying device Drying length is 5-8meters | 14 | Automatic Convolver
|
5 | Deviation device Photoelectric detection. | 15 | Platform |
6 | Impregnating device Up&down press-roller | 16 | Electrical operating control devices |
7 | Asphalt coating device With pump | 17 | Mixing-weighing system devices |
8 | PE film laminating device | 18 | Horizontal storage tanks |
9 | Sand lifting device | 19 | mixer tank |
10 | Sand lifting and spreading device | 20 | Smoke purification device |

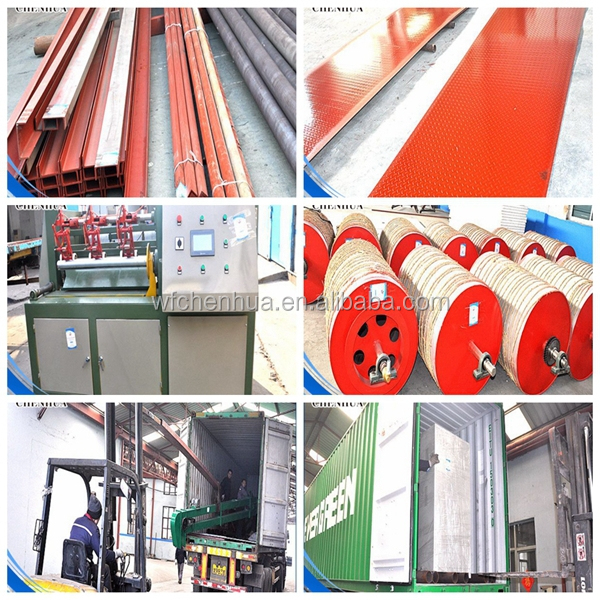

Loading
Modified Asphalt bitumen waterproofing membrane rolls production line
FAQ
Modified Asphalt bitumen waterproofing membrane rolls production line
1)Engineers will supply overseas installation guiding service.
2)Installation will be finished within 2 months normally.
(buyer should supply enough labour help and installation tools help )
3)Trial operation will be finished within 15days normally.
(buyer should supply necessary raw materials and auxiliary tools and rooms )
4)We welcome your visit to our factory ,then,it would be our greatest pleasure to introduce every part to you face-to-face. you can choose the parts you need or delete the parts you don't need.
Company introduction
CHENHUA WATERPROOF Co.,Ltd was established in 1994, she is located in Taitou
industrial part,Shouguang,Shandong,China. which is the biggest construction waterproofing base
in China. with convenient transportation and superior location.Our Company now has three factories,
covering an area of 70000 square meters, there are more than 300 high qualification employees with
state-of-the-art technology,superior quality and service.
Our main products :
1)Polyester base for making bitumen waterproofing membrne.
2)Compound base for making bitumen waterproofing membrane
3)SBS/APP torch on modified bitumen waterproofing membrane
4)Self-adhesive bitumen waterproofing membrane
5)PVC waterproofing membrane,TPO waterproofing membrane
6) Modified Asphalt bitumen waterproofing membrane rolls production line
In the last years of hard work,our company reaches ISO9001 and BV standard and establish long term
relation with many domestic factories and overseas clients.such as,Beijing Oriental Yuhong waterproofing
technology Co.,Ltd,Hongyuan waterproof material Co.,Ltd,Russia,Iran and Iraq waterproof materials
manufacturers,
We enjoy a higher reputation all over the world.welcome your enquiry and visit anytime.
