second hand co2 laser engraving machine acrylic sheet wool felt foam cutting laser cutting machine stone engraving machine

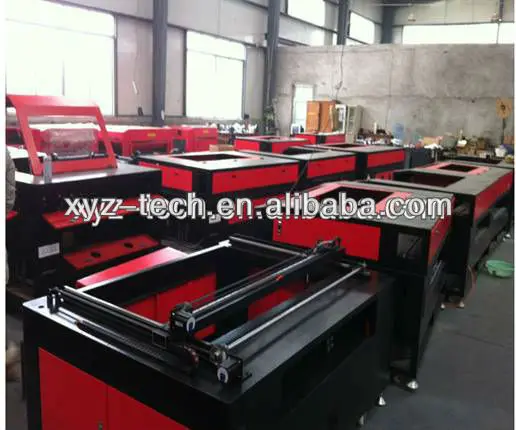

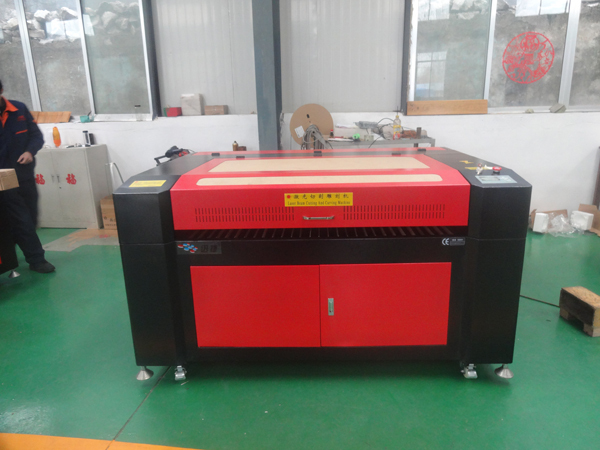

The real machine pictures:





 Teachnical parameters:



Model	XJ1390
Engraving range	1300*900mm
Laser type	Hermetic and detached CO2 laser tube
Poweer adjusting	0-100% controlling,no segment and adjusting by software
Laser tube cooling mode	Circulating-water-cooling
Machine control and drive	Speedy DSP controlling ,stepper motor
Power	80W(100W,130W for optional)
Resolution	<0.0254mm
Setting accuracy	<0.0254mm
Repetition accuracy	<0.0254mm
Max engraving speed	2000mm/sec
Max cutting speed	400mm/sec
Min size of  engravedletters	Chinese letter engraving 1.5mm,english letters engraving 0.8mm,cutting 1mm
Max cutting thickness	≤acrylic 20mm
dicate	Transmil file directly from Coreldraw ,AutoCAD etc.
Working voltage	AC220V/50Hz







Features:

1)  Scientific and advanced mechanism, imported stepper motor and guide-rails ensures long time movement

      without adjusting,the machine is durable and steady. Perfect dustproof and pollution defending design grestly

      improves the machine stability.

2)  Adopting unique optics structure of fly ray, which has low warp,steady and easy adjusting. Imported K9 reflecting

     lens and ANSE focus lens ,of which reflectivity  and penetrability is the most strong among congener fittings,while

     the facula is thinner with strong power of cutting . It maximum the work efficiency and reduce the cost of movement.

3) Can be restored from power off , resume on break point.

4) Independent developed power of laser tube adopts PWM direct control technology and new switch of high voltage .

    It can ensure reliable performance and strong ability of anti-jamming.

5) Full-automatic water cooling system can be optional.

6) Back door can be opened  to process long material and easily feeding.

7) The latest DSP laser control system has user_friendly windows operation interface , supporting dictate format of

     DWG, PLT, BMP , DXF ,AI, transmitting files directly from CoreDraw ,AutoCAD etc.



 Suitable Material:

 It can engrave and cut on most of nonmetal material or painted metals. It is applicable to wood ,playwood ,MDF, ware ,plastics ,resin material,glass,painted metals,porcelain ,ox horn ,cloth,white jade, paper, marble,granite,anode oxidize aluminum, rubber, fiber glasses ,plastic, printting rubbeplank, double color board, synthesize crystal, carton,etc.



Applicable area:

Advertising industry , Carved gifts and crafts industy ,Packing and printing industry , Leather clothing industry , Architectural model industry , production toem industry .

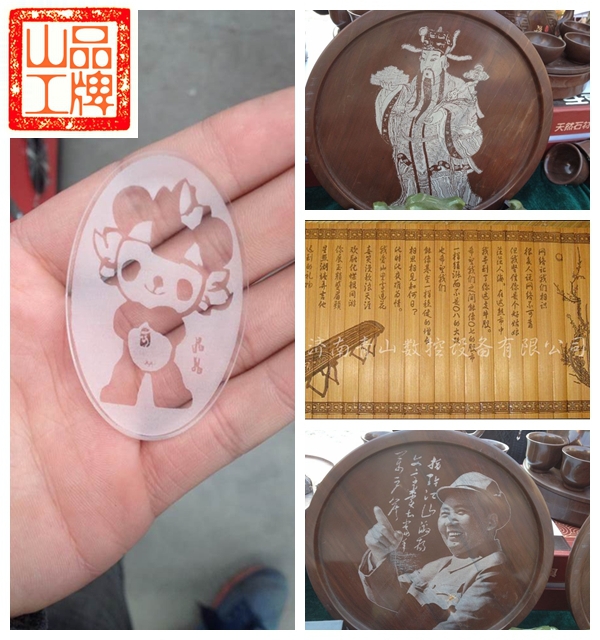

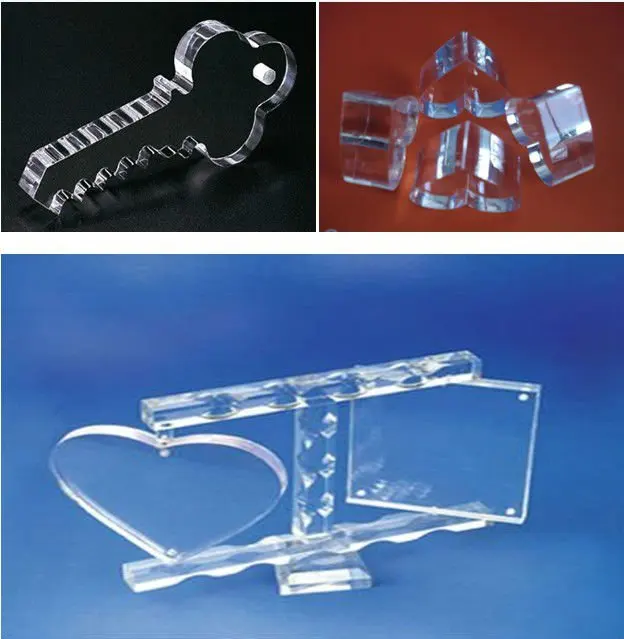

Samples:











Optional equipment:

Rotary attachment,

Motorized up-down table

Special water-cooling

Vacuum table

Red-light position

DSP off-line operation with usb flash



Packaging:



Company Information:



Guarantee & Aftersales Service:

♦ Guarantee for one year

♦ 24-hour technical support by email or calling

♦ User-friendly English manual and Video CD for machine using and maintaining



FAQ:

1. How long is the delivery time?

For standard machines, it would be 7- 12 working days; For nonstandard machines

and customized machines according to clients specific requirements, it would be longer.



2. How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, Alibaba Secure payment, Paypal.



3. Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For

EXW price, clients need to arrange shipment by themselves or their agents.
