Products Description

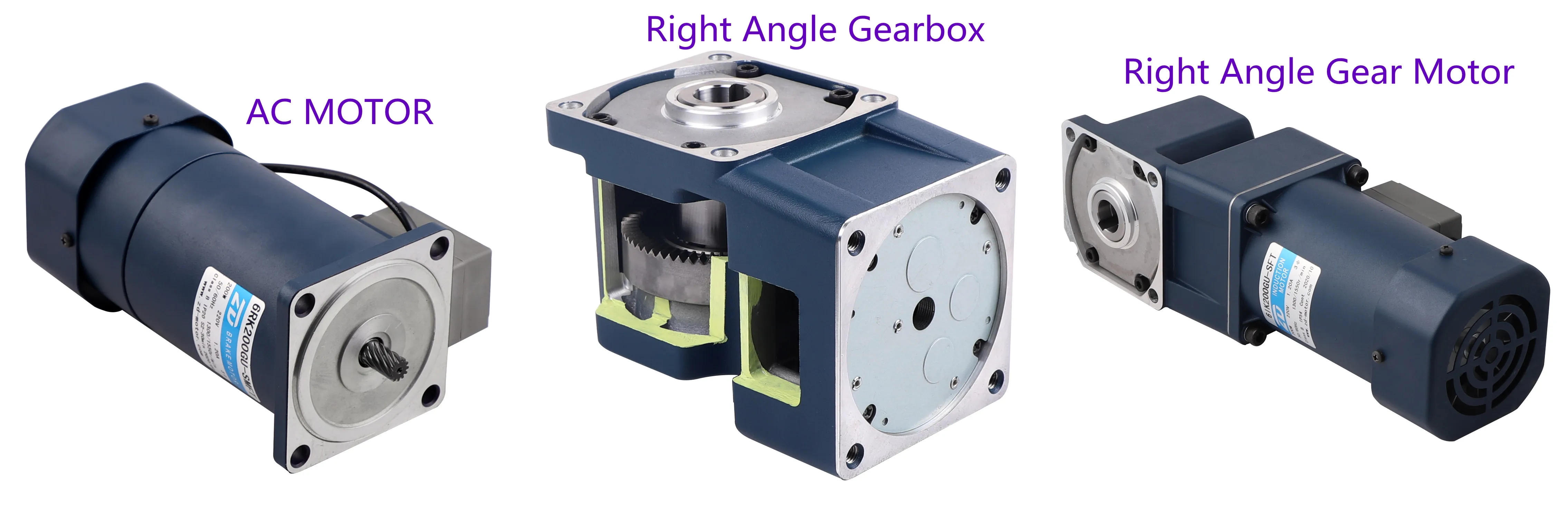

ZD LEADER COMPACT AC RIGHT ANGLE GEAR MOTOR
Our AC Right Angle Gear Motor include single-phase type which use a single-phase AC power supply and three-phase type which use a three-phase AC power supply,single-phase require a capacity to operate and three-phase does not require a capacity,just connect the motor to a three-phase AC power supply, we ZD offer a wide range of AC Right Angle Gear Motor:
✔Constant Speed AC Right Angle Gear Motor
✔Speed Control AC Right Angle Gear Motor
✔Reversible AC Right Angle Gear Motor
✔Brake AC Right Angle Gear Motor
✔Any Customized Design From You


Details Images

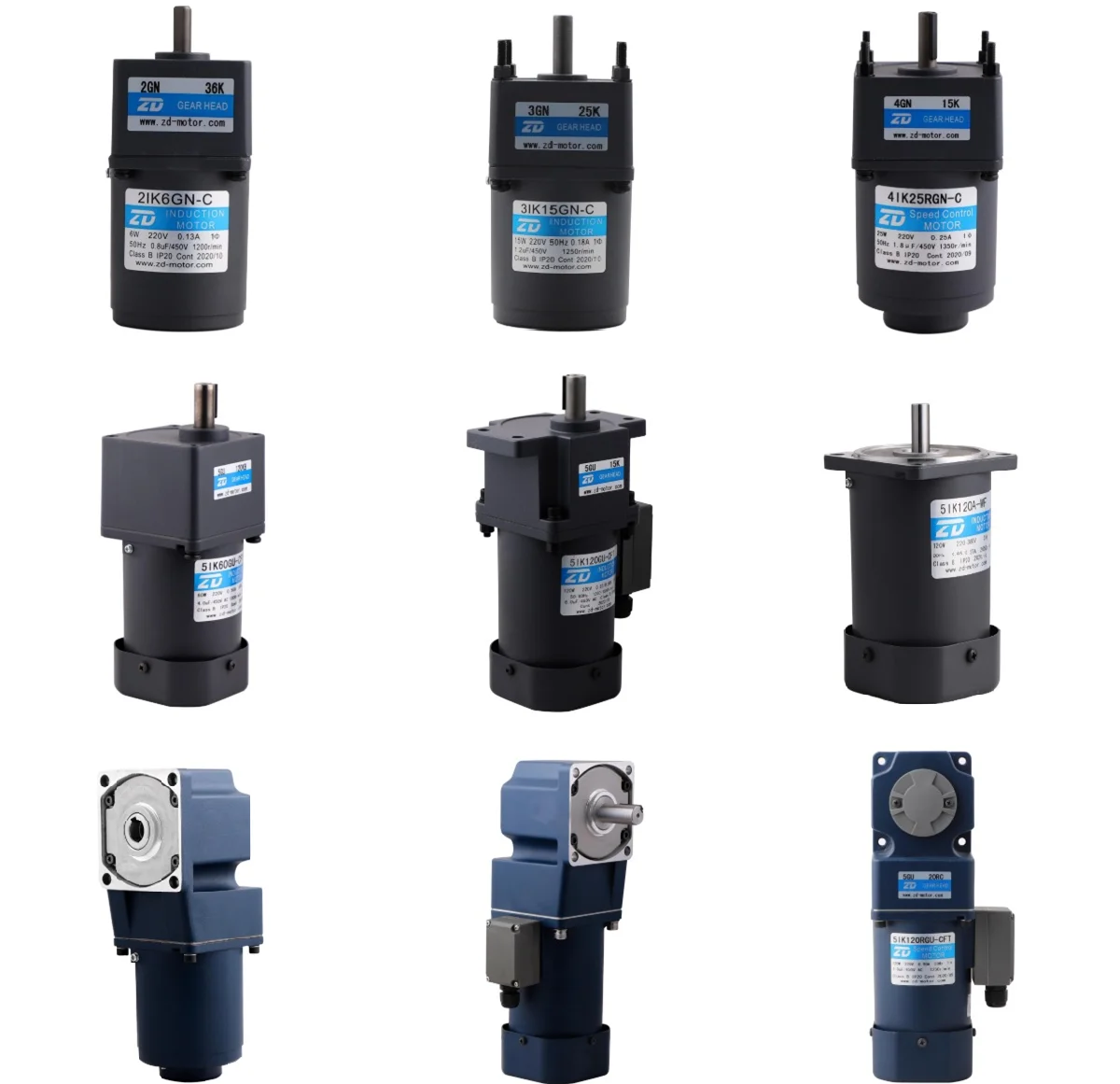

■ AC Gear Motor Line-up


Output Power
Type
Gear Type
Available Option
Power Supply
Allowable Rated Torque
Standard Shaft Size
6 W (1/125 HP)  AC Gear Motors
Lead Wire
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC      1-Phase 220/230 VAC    3-Phase 220/380 VAC
3N.M
8*30mm D-CUT
Round Shaft  (no Gear)
0.048N.M
6*24mm D-CUT
15 W (1/50 HP) AC Gear Motors
Lead Wire
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
5N.M
10*32mm Key-way
Round Shaft  (no Gear)
0.125N.M
6*32mm D-CUT
25 W (1/30 HP) AC Gear Motors
Lead Wire
Terminal Box
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
8N.M
10*32mm Key-way
Right-Angle Hollow Shaft
8N.M
15*74mm Hollow type
Right-Angle Solid Shaft
8N.M
12*32mm Key-way
Round Shaft  (no Gear)
0.2N.M
8*32mm D-CUT
40 W (1/19 HP) AC Gear Motors
Lead Wire
Terminal Box
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
10N.M
12*32mm Key-way
Right-Angle Hollow Shaft
20N.M
17*86mm Hollow type
Right-Angle Solid Shaft
20N.M
15*38mm Key-way
Round Shaft  (no Gear)
0.315N.M
10*37mm D-CUT
60 W (1/12 HP) AC Gear Motors
Lead Wire
Terminal Box
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
10N.M
12*32mm Key-way
Right-Angle Hollow Shaft
20N.M
17*86mm Hollow type
Right-Angle Solid Shaft
20N.M
15*38mm Key-way
Round Shaft  (no Gear)
0.47N.M
12*37mm D-CUT
90 W (1/8 HP)  AC Gear Motors
Lead Wire
Terminal Box
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
20N.M
15*38mm Key-way
Right-Angle Hollow Shaft
20N.M
17*86mm Hollow type
Right-Angle Solid Shaft
20N.M
15*38mm Key-way
Round Shaft  (no Gear)
0.7N.M
12*37mm D-CUT
120 W (1/6 HP) AC Gear Motors
Lead Wire
Terminal Box
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
20N.M
15*38mm Key-way
Right-Angle Hollow Shaft
20N.M
17*83mm Hollow type
Right-Angle Solid Shaft
20N.M
15*38mm Key-way
Round Shaft  (no Gear)
0.93N.M
12*37mm D-CUT
140 W (1/5 HP) AC Gear Motors
Lead Wire
Terminal Box
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
40N.M
15*42mmKey-way
Right-Angle Hollow Shaft
40N.M
22*98mm Hollow type
Right-Angle Solid Shaft
40N.M
20*48mm Key-way
Round Shaft  (no Gear)
1.08N.M
12*37mmD-CUT
200 W (1/4 HP) AC Gear Motors
Lead Wire
Terminal Box
Parallel Shaft
Electromagnetic Brake/Speed control
1-Phase 110/115 VAC    1-Phase 220/230 VAC    3-Phase 220/380 VAC
40N.M
15*42mm Key-way
Right-Angle Hollow Shaft
40N.M
22*98mm Hollow type
Right-Angle Solid Shaft
40N.M
20*48mm Key-way
Round Shaft (no Gear)
1.52N.M
12*37mmD-CUT
*Power/Shaft size/Mounting Flange can be customized according to your requirements


Related Products




Why Choose Us




FAQ


Q1: What're your main products?

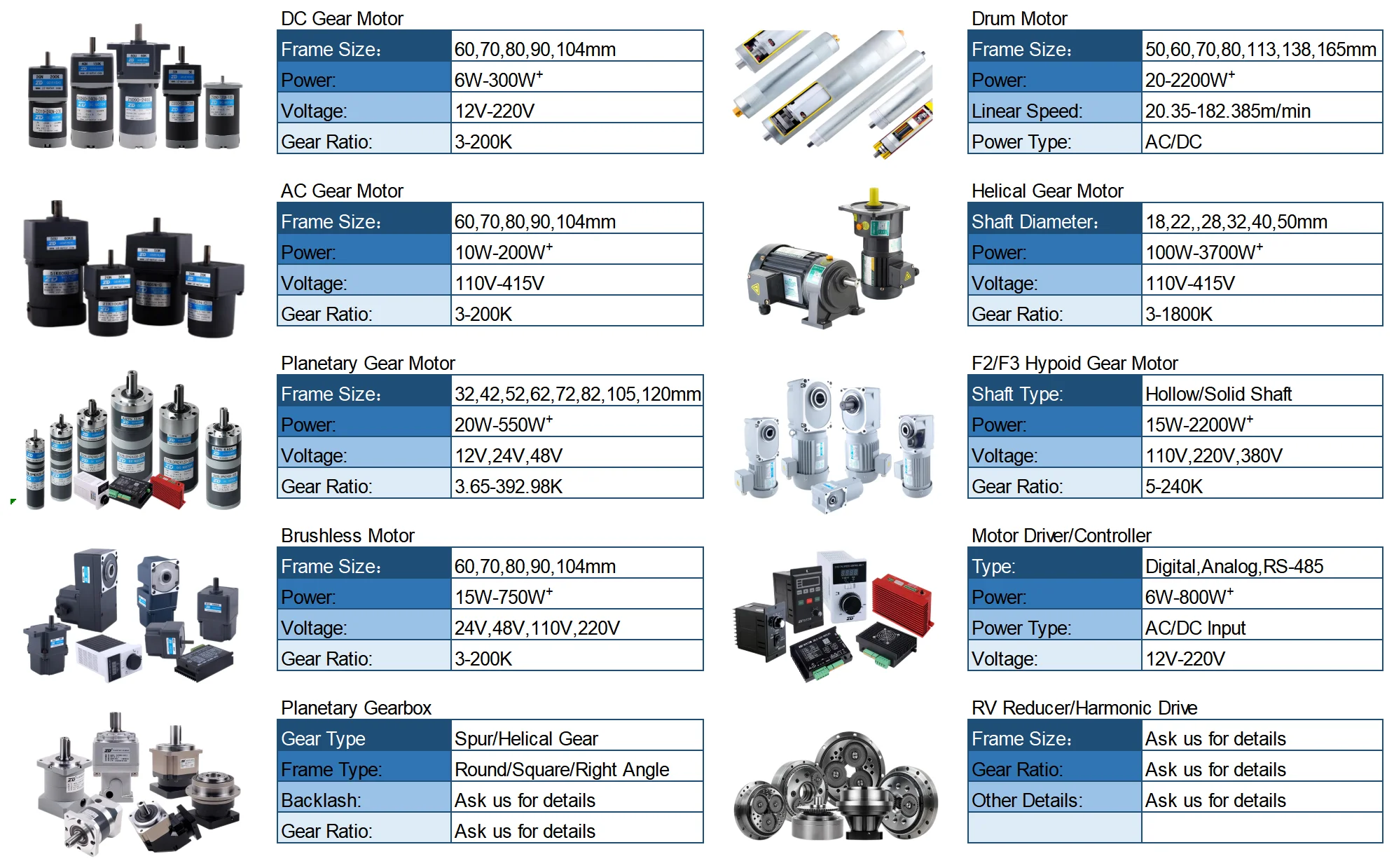

A1: We currently produce Brushless DC Gear Motor,Motor Driver,AC Gear Motor, DC Gear Motor, Planetary Gearbox,Drum Motor,Precision Cycloidal Reducer,Harmonic Drive,etc. You can check the specifications for above motors on our website and you can also tell us your special requirements by email and we will recommend the motor you need.

Q2: How to select a suitable motor?
A2: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor as per your request accordingly.

Q3: Do you have a customized service for your standard motors?
A3: Yes, we can customize as per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q4: Do you have an individual design service for motors?
A4: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.

Q5: What's your lead time?
A5: Generally speaking, our regular standard product will need 15-30 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
