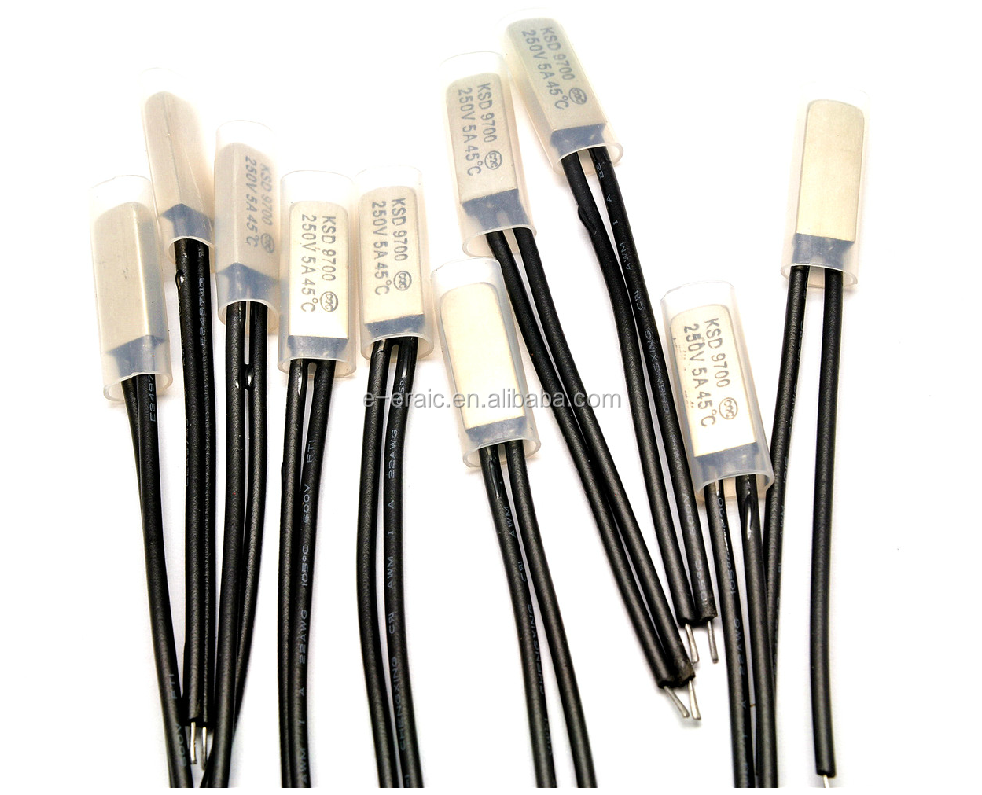

Термозащитный переключатель температурного контроля KSD9700 120C

Описание и отзывы

Характеристики

Name: thermal protection
Model: KSD9700
Switch Type: normally closed / normally open
Material: metal / plastic housing
Product specifications: metal 20mm * 7.4mm * 3.8mm

Plastic housing: 20mm * 8.0mm * 4.0mm
Rated voltage: 250V
Overload Current: 5A
Operating temperature: 20 degrees -180 degrees
Rated current: DC12V / 12A, DC24V / 10A
AC125V / 8A, AC250V / 5A
Normal Electric strength:> 800V
Normal contact resistance: <50mOhm
Insulation resistance:> 100MOhm
Response speed: <= 1C / min
The number of times life:> 10000 times or more
Operating temperature: 20C -180C (error 3C / 5C)
Reset temperature: 10C- 140C (error <= 15C)
