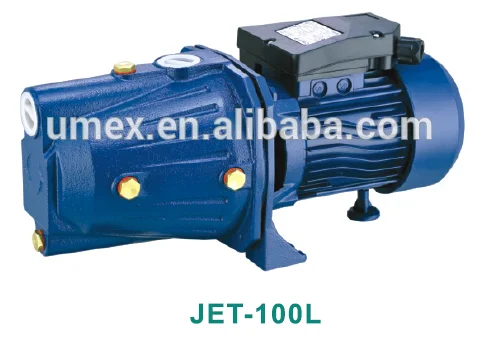

Электрический струйный насос JET100L хорошего

1.Two –pole induction motor (n=2850rpm)
2.Insulation Class B
3.Protection grade IP44

1.Flow rate up to 54 l/min (3.2 m³/h)
2.Head up to 51m

1. Manometric suction lift up to 9m
2. Liquid temperature up to +60°C
3. Environment temperature up to +40°C

1. Pump body: Cast iron WITH THREAD opening ISO 228/1

2. Motor support: Cast iron
3. Motor housing: Aluminum
4. Impeller: Brass /Stainless Steel /PPO
5. Shaft with rotor: Carbon steel or stainless steel
6. Mechanical seal: Ceramic/ Graphite
7. Bearing:  NSK, C&U, or local quality.

These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.

WARRANTY: 1 YEAR (according to our general sales conditions)

 Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.

Q1.What will you do for after sale?

A: We will follow up and await your feedback after we delivery the goods to you.

Q2.Why did you choose us?

 A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps  and pump fittings.

Q3.How does your factory do regarding quality control?

A:Quality is priority, and we will do 100% quality inspection before shipment.

Q4.Can we use our own logo and design?

A: Yes, you can. We'll produce pump on your brand and according to your design.

Q5.What's the delivery time of your products?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your purchasing quantity and production season.
