Feature:

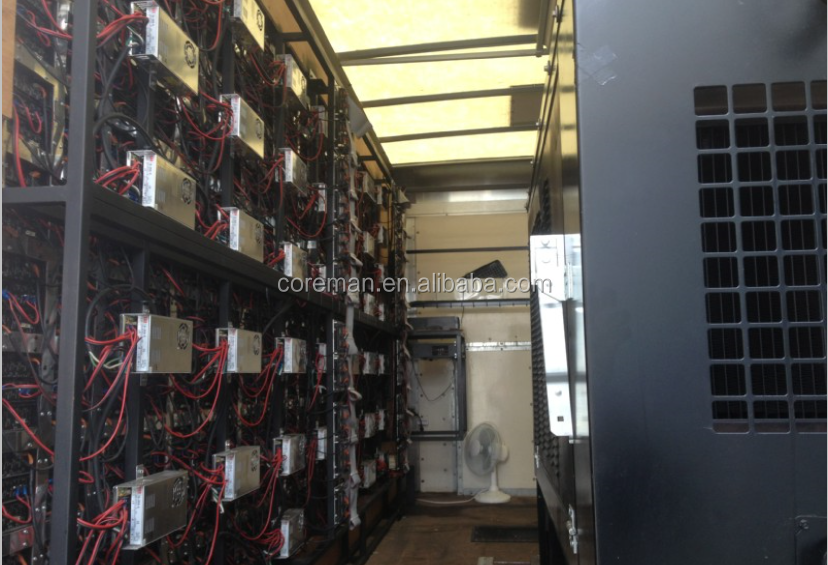

1.2PCS led screen.Inside is the power generator.
2.Size: 3.84mx1.92m,6pcs 960x960mm cabinet.
3.application place: USA
led advertising screen advantage:
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules
hd indoor p4 p5 p6 photo video led display
full hots photos

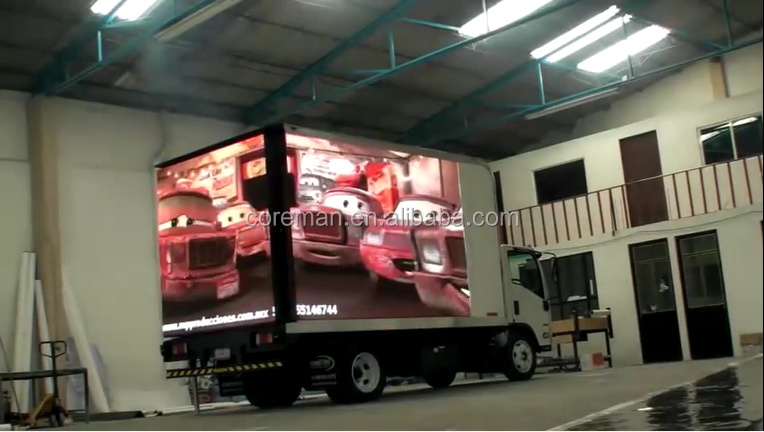

Video led screen outdoor design
| Parameters | Value | Unit |
| Pixel pitch | 10 | mm |
| Brightness | More than 6500 | nit |
| Panel dimensions(W×H×D) | 1280×960×150 | mm |
| Panel dimensions(W×H×D) | 50.39×37.80×5.91 | Inch |
| Panel materail | Aluminum or Steel Iron | |
| Weight | 20 | kg/panel |
| Pixel configuration | LED346 DIP or 3-in-1 SMD | |
| Module dimensions (W×H) | 320×320 or 160 x 160 | mm |
| Module dimensions (W×H) | 12.60×12.60 | Inch |
| Pixel matrix per panel | 128×96 | pixels |
| Pixel density | 10000 | pixels/sq.m. |
| Refresh rate | ≥2000 | Hz |
| Gray scale per color | 65536 | level |
| Colors | 281 Trillion | |
| Viewing angle(H/V) | 160/120 | deg. |
| IP rating(Front/Rear) | IP65/IP54 | |
| Power consumption(max/avg) | 555/185 | W/sq.m. |
| Input voltage(AC) | 110~240 | V |
| Operating temperature | -40 ~65 | °C |
| Operating humidity | 10%~90% | |
| Source compatibility(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |

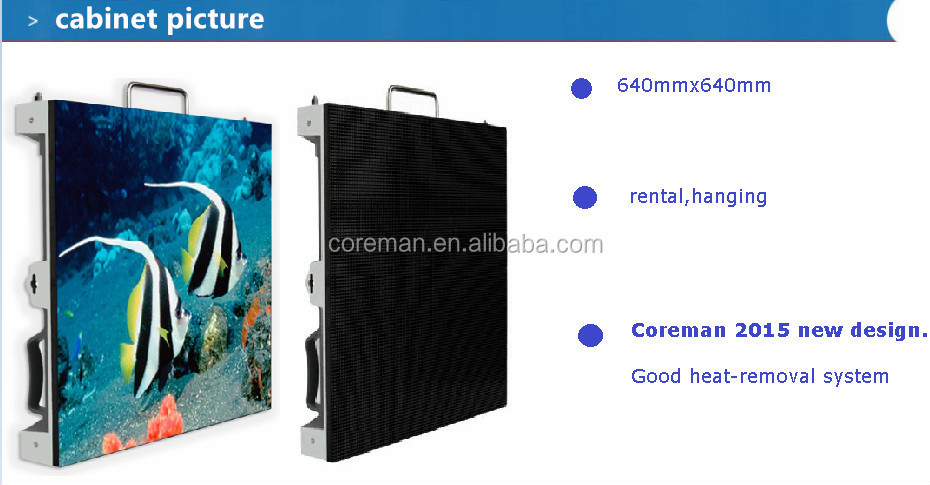

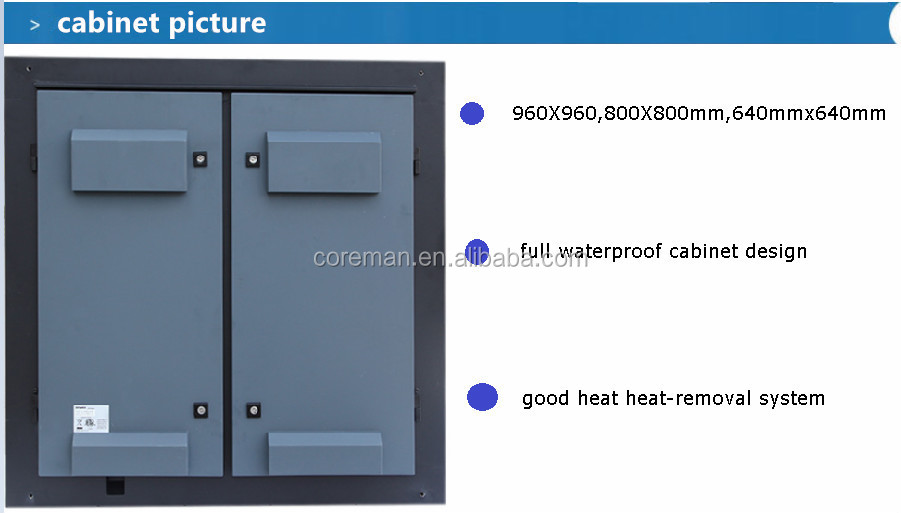

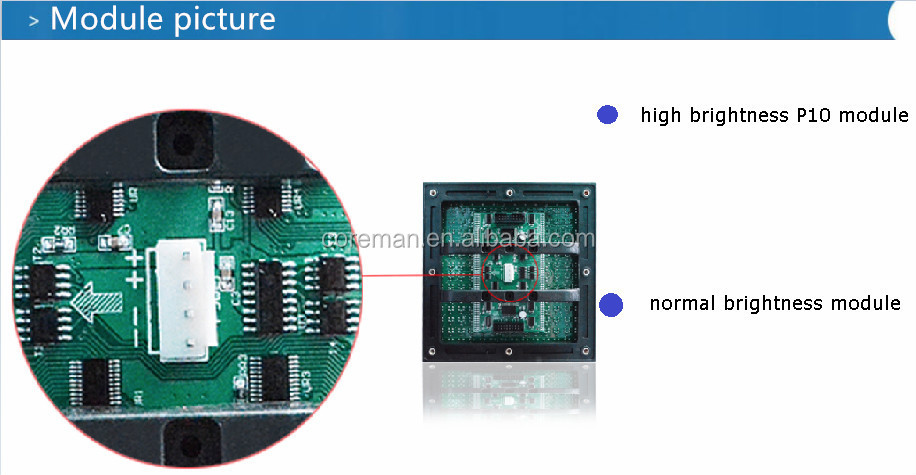

led details pictures

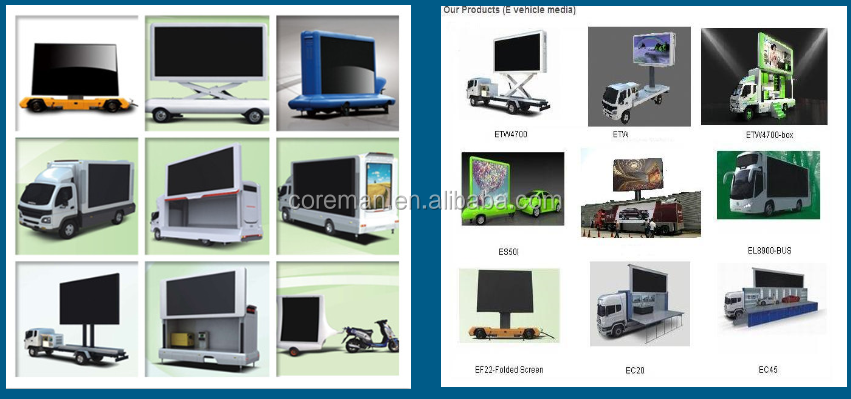

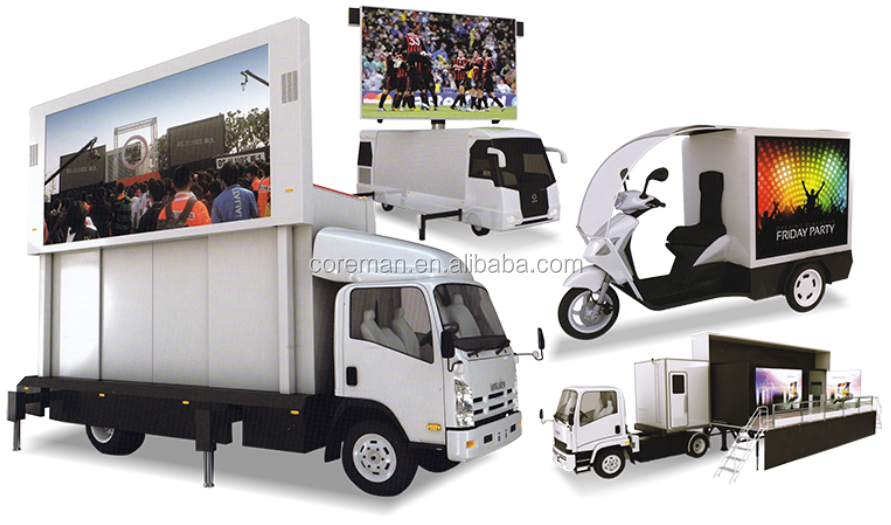

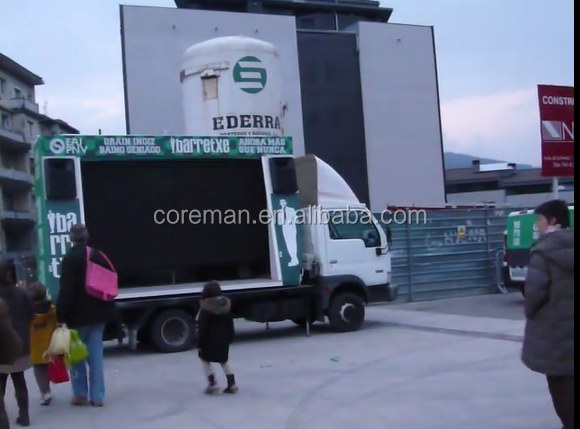

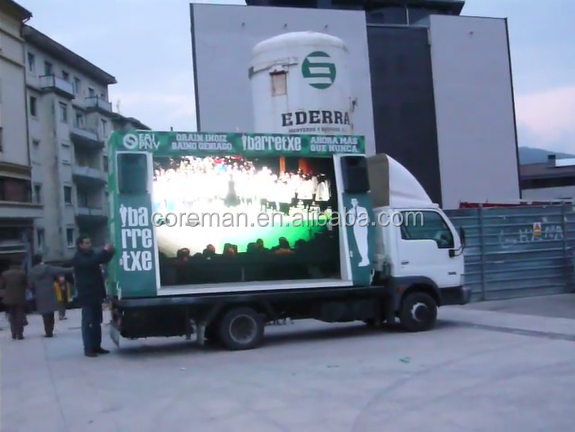

8 years experience in truck led screen project
Front service access led module mainaly used for video wall or truck led screen.

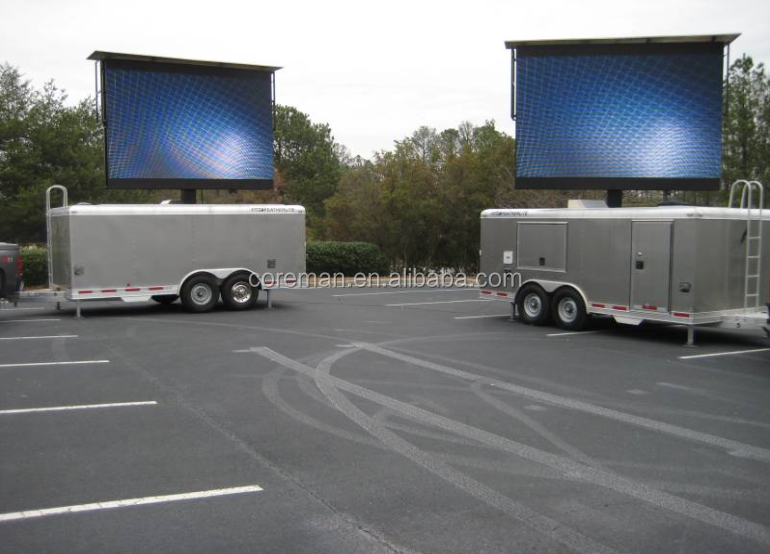

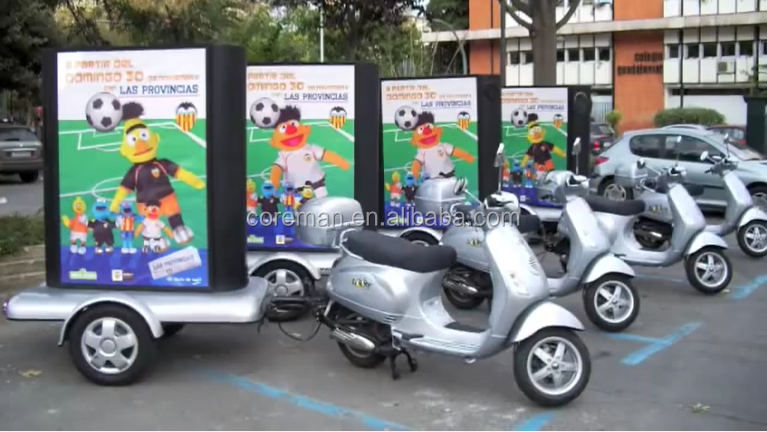

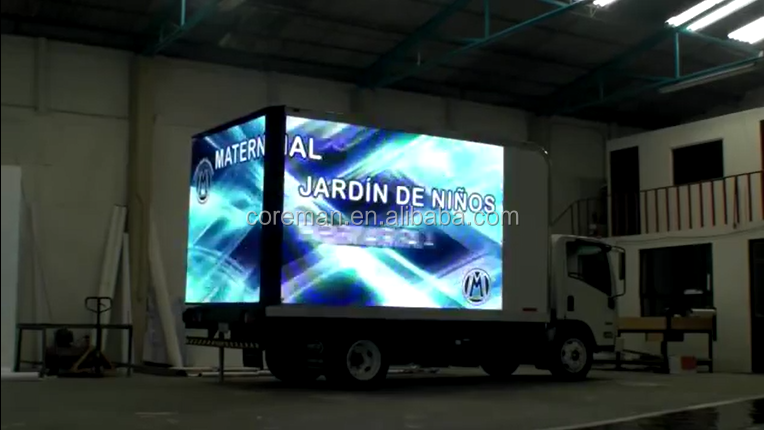

Coreman LED cases
Feature:
1. Cost saving truck led display.
2.Totally 10pcs cabinet,each one size is 800x960mm.
3.NOVA system controller,internet cable.
Coreman Technology has installed many display in foreign country.
More cases can be provided by mail.( We have customers in your country.You can check the quality.)
Optional:
P8 outdoor full color led module/display
P10 outdoor full color led module/display
P12 outdoor full color led module/display
P16 outdoor full color led module/display
P20 outdoor full color led module/display
P25 outdoor full color led module/display
indoor series:
P3,P4,P5,P6,P7.62,P6,P10 SMD indoor full color led module/display.
FAQ
Q1: Whats The Difference Between Standard and High Brightness Displays?
-----------Ever wondered what the difference between high brightness and standard brightness actually looks like? High brightness is viewable in daylight
Q2: How do I decide which display is the correct one for my needs?
While, most people start out with an idea on the physical size of the LED display, this is not really the correct first step to follow. Instead, determine the viewing distance, or the distance from where you want the majority of the audience to read your information(video or image,text)
Q3: I need more information, can you help?
Yes, email us and ask for our data sheet on Selecting The Right Display
Q4: How big can an LED video screen be?
The answer is, as big as you want! The display is consist by the led cabinet.you can add more cabinets in one display.
